利用Zabbix监控mysql主从

jtyhrew222

mysql主从监控

#脚本如下，截取主从关键字

1 2 3 4 5 6 7 8 9 10 11 12

cat check_mysql_slave.sh #!/bin/bash # declare -a 定义数组，slave_is 会被视为数组 declare -a slave_is slave_is=($(/data/mysql/bin/mysql -e "show slave status\G"|grep -E "Slave_IO_Running|Slave_SQL_Running:"|awk '{print $2}')) if [ "${slave_is[0]}" = "Yes" -a "${slave_is[1]}" = "Yes" ];then     echo "ok -slave is running"     exit 0 else     echo "down -slave is not running"     exit 2 fi

#zabbix_agentd.conf文件的配置如下：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

cat zabbix_agentd.conf | grep -v "^#" | grep -v "^$" LogFile=/tmp/zabbix_agentd.log EnableRemoteCommands=1 Server=10.74.246.70 ListenPort=10050 ServerActive=10.74.246.70 Hostname=10.74.244.33 AllowRoot=1 Include=/usr/local/zabbix/etc/zabbix_agentd.conf.d/*.conf UnsafeUserParameters=1 UserParameter=tomcat_port,/usr/local/zabbix/share/zabbix/alertscripts/tomcat_port.sh $1 UserParameter=tcp ,/usr/local/zabbix/share/zabbix/alertscripts/tcp_connection.sh $1 UserParameter=nginx_port,/usr/local/zabbix/share/zabbix/alertscripts/nginx_port.sh $1 UserParameter=erro_log ,/usr/local/zabbix/share/zabbix/alertscripts/error_log.sh $1 #mysql主从监控脚本，grep -c "ok",ok出现的次数 UserParameter=mysql.slave,/usr/local/zabbix/share/zabbix/alertscripts/check_mysql_slave.sh | grep -c 'ok'

#创建自定义模板：

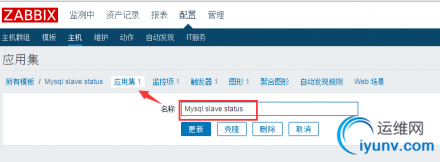

#创建应用集：

#创建监控项：

#创建触发器：


#添加mysql-slave监控图形：

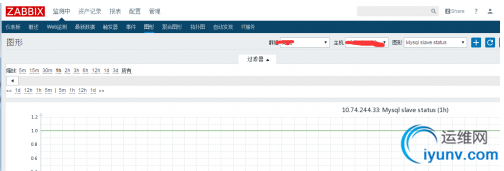

#查看图形监控效果：
