Hadoop学习十五：Hadoop-Hdfs DataXceiverServer源码概述

outlook

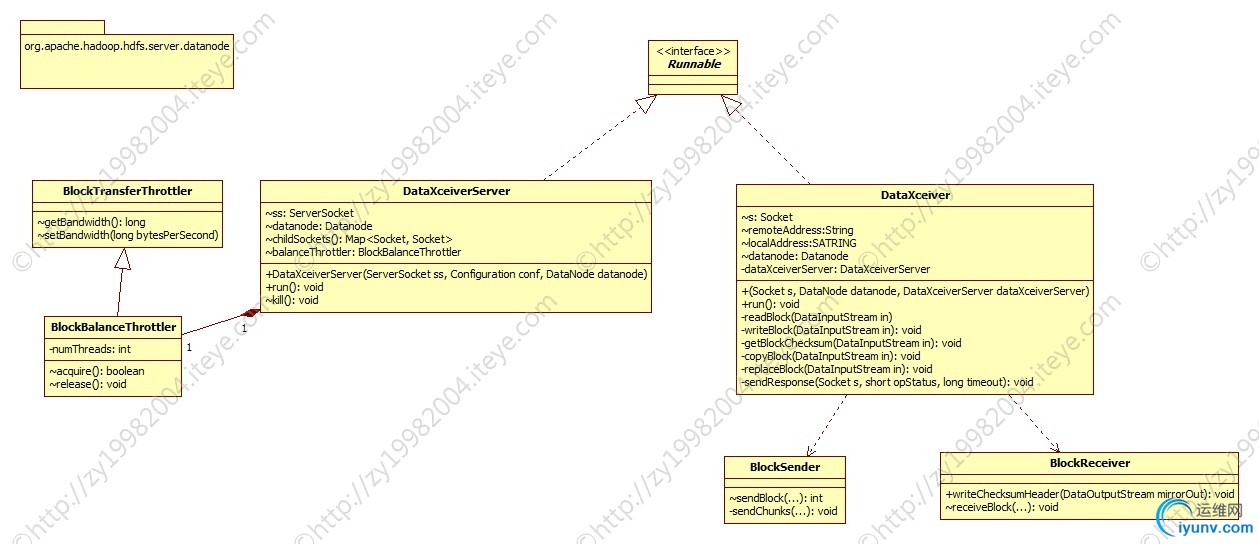

一.DataXceiverServer类图

二.DataXceiverServer

•  Server used for receiving/sending a block of data.This is created to listen for requests from clients or other DataNodes.  This small server does not use the Hadoop IPC mechanism.DataXceiverServer用于接收和发送block数据，它监听着client或者其它DataNode的请求。DataXceiverServer没有采用RPC机制。DataXceiverServer是流式机制，而RPC是命令式接口。

• DataXceiverServer每接收到一个请求，就会创建一个DataXceiver来处理该请求。
  class DataXceiverServer implements Runnable, FSConstants {
  public static final Log LOG = DataNode.LOG;
  ServerSocket ss;
  DataNode datanode;
  // Record all sockets opend for data transfer
  Map<Socket, Socket> childSockets = Collections.synchronizedMap(new HashMap<Socket, Socket>());
  static final int MAX_XCEIVER_COUNT = 256;//默认值是256,每个node最多可以起多少个DataXceiver,如果太多的话可能会导致内存不足
  BlockBalanceThrottler balanceThrottler;
  DataXceiverServer(ServerSocket ss, Configuration conf, DataNode datanode) {
  this.ss = ss;
  this.datanode = datanode;
  }
  public void run() {
  while (datanode.shouldRun) {
  Socket s = ss.accept();//接受client请求
  s.setTcpNoDelay(true);
  //实例化DataXceiver，需要Socket和DataNode
  new Daemon(datanode.threadGroup, new DataXceiver(s, datanode, this)).start();
  }
  }
  }


三.DataXceiver类图

•  DataXceiver处理Client或DataNode的五种请求(DataTransferProtocol接口定义)。
    public static final byte OP_WRITE_BLOCK = (byte) 80;
  public static final byte OP_READ_BLOCK = (byte) 81;
  /**
  * @deprecated As of version 15, OP_READ_METADATA is no longer supported
  */
  @Deprecated public static final byte OP_READ_METADATA = (byte) 82;
  public static final byte OP_REPLACE_BLOCK = (byte) 83;
  public static final byte OP_COPY_BLOCK = (byte) 84;
  public static final byte OP_BLOCK_CHECKSUM = (byte) 85;

  class DataXceiver implements Runnable, FSConstants {
  Socket s;
  final String remoteAddress; // address of remote side
  final String localAddress; // local address of this daemon
  DataNode datanode;
  DataXceiverServer dataXceiverServer;
  public DataXceiver(Socket s, DataNode datanode,
  DataXceiverServer dataXceiverServer) {
  this.s = s;
  this.datanode = datanode;
  this.dataXceiverServer = dataXceiverServer;
  dataXceiverServer.childSockets.put(s, s);
  remoteAddress = s.getRemoteSocketAddress().toString();
  localAddress = s.getLocalSocketAddress().toString();
  }
  public void run() {
  DataInputStream in = null;
  in = new DataInputStream(new BufferedInputStream(NetUtils.getInputStream(s), SMALL_BUFFER_SIZE));
  short version = in.readShort();if ( version != DataTransferProtocol.DATA_TRANSFER_VERSION ) {
          throw new IOException( "Version Mismatch" );
        }//version
  boolean local = s.getInetAddress().equals(s.getLocalAddress());//本地请求
  byte op = in.readByte();//op
  switch (op) {
  //读数据块
  case DataTransferProtocol.OP_READ_BLOCK:
  readBlock(in);
  datanode.myMetrics.addReadBlockOp(DataNode.now() - startTime);
  if (local)
  datanode.myMetrics.incrReadsFromLocalClient();
  else
  datanode.myMetrics.incrReadsFromRemoteClient();
  break;
  //写数据块
  case DataTransferProtocol.OP_WRITE_BLOCK:
  writeBlock(in);
  datanode.myMetrics.addWriteBlockOp(DataNode.now() - startTime);
  if (local)
  datanode.myMetrics.incrWritesFromLocalClient();
  else
  datanode.myMetrics.incrWritesFromRemoteClient();
  break;
  //替换数据块
  case DataTransferProtocol.OP_REPLACE_BLOCK:
  replaceBlock(in);
  datanode.myMetrics
  .addReplaceBlockOp(DataNode.now() - startTime);
  break;
  //拷贝数据块
  case DataTransferProtocol.OP_COPY_BLOCK:
  // for balancing purpose; send to a proxy source
  copyBlock(in);
  datanode.myMetrics.addCopyBlockOp(DataNode.now() - startTime);
  break;
  //读取数据块校验码
  case DataTransferProtocol.OP_BLOCK_CHECKSUM: // get the checksum of
  // a block
  getBlockChecksum(in);
  datanode.myMetrics.addBlockChecksumOp(DataNode.now()
  - startTime);
  break;
  default:
  throw new IOException("Unknown opcode " + op
  + " in data stream");
  }
  dataXceiverServer.childSockets.remove(s);
  }
  }
