MooseFS文件系统介绍MooseFS是一种分布式文件系统，MooseFS文件系统结构包括以下四种角色：
1 管理服务器managing server (master)
2 元数据日志服务器Metalogger server（Metalogger）
3数据存储服务器data servers (chunkservers)
4 客户机挂载使用client computers
前面几篇构建了负载均衡，高可用，今天来实现一个高可用分布式存储，DRBD做主备切换，当主机故障时，会把数据转移到备机上，客户端通过VIP挂载到本地目录，mfschunkserver指向VIP做数据存储，从而达到数据的不间断。。。。
实验环境：
角色
| IP | 域名 | (Master)Mfs++drbd+pacemaker+corosync | 10.0.0.128 | zxb | (Backup)Mfs++drbd+pacemaker+corosync | 10.0.0.129 | zxb2 | Mfschunkserver | 10.0.0.130 | zxb3 | Mfschunkserver | 10.0.0.131 | zxb4 | Mfsclient
| 10.0.0.50 | client
|

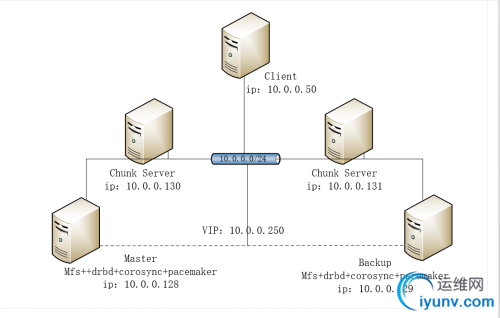

实验拓扑
实施： 配置前提： ①时间同步 [iyunv@zxb ~]# crontab -l
* * * * * ntpdate cn.pool.ntp.org [iyunv@zxb ~]# systemctl start crond
[iyunv@zxb2 ~]# crontab -l
* * * * * ntpdate cn.pool.ntp.org
[iyunv@zxb2 ~]# systemctl start crond
②主机名互相访问 [iyunv@zxb ~]# cat /etc/hosts
10.0.0.128 zxb2
10.0.0.129 zxb3 [iyunv@zxb2 ~]# cat /etc/hosts
10.0.0.128 zxb2
10.0.0.129 zxb3 [iyunv@zxb ~]# hostnamectl set-hostname zxb
[iyunv@zxb2 ~]# hostnamectl set-hostname zxb2
③ssh免密钥 [iyunv@zxb ~]# ssh-keygen
[iyunv@zxb ~]# ssh-copy-id 10.0.0.129
配置过程: ① 配置DRBD 1.首先安装drbd [iyunv@zxb ~]#cd /etc/yum.repos.d/ [iyunv@zxb ~]#yum install -y kmod-drbd84 drbd84-utils
[iyunv@zxb2 ~]#cd /etc/yum.repos.d/ [iyunv@zxb2 ~]#yum install -y kmod-drbd84 drbd84-utils
主配置文件 /etc/drbd.conf #主配置文件 /etc/drbd.d/global_common.conf#全局配置文件
查看主配置文件 [iyunv@zxb ~]# cat/etc/drbd.conf # You can find anexample in /usr/share/doc/drbd.../drbd.conf.example include"drbd.d/global_common.conf"; include"drbd.d/*.res";
2.修改全局配置文件，并说明 [iyunv@zxb1 ~]# cat /etc/drbd.d/global_common.conf 1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
| global {
usage-count no;#是否参加DRBD使用统计，默认为yes。官方统计drbd的装机量
# minor-count dialog-refresh disable-ip-verification
}
common {
protocol C; #使用DRBD的同步协议
handlers {
pri-on-incon-degr "/usr/lib/drbd/notify-pri-on-incon-degr.sh;/usr/lib/drbd/notify-emergency-reboot.sh; echo b > /proc/sysrq-trigger ;reboot -f";
pri-lost-after-sb "/usr/lib/drbd/notify-pri-lost-after-sb.sh;/usr/lib/drbd/notify-emergency-reboot.sh; echo b > /proc/sysrq-trigger ;reboot -f";
local-io-error"/usr/lib/drbd/notify-io-error.sh;/usr/lib/drbd/notify-emergency-shutdown.sh; echo o > /proc/sysrq-trigger ;halt -f";
}
startup {
# wfc-timeout degr-wfc-timeoutoutdated-wfc-timeout wait-after-sb
}
options {
# cpu-mask on-no-data-accessible
}
disk {
on-io-error detach; #配置I/O错误处理策略为分离
# size max-bio-bvecs on-io-error fencingdisk-barrier disk-flushes
# disk-drain md-flushes resync-rate resync-afteral-extents
# c-plan-ahead c-delay-target c-fill-targetc-max-rate
# c-min-rate disk-timeout
}
net {
# protocol timeout max-epoch-sizemax-buffers unplug-watermark
# connect-int ping-int sndbuf-sizercvbuf-size ko-count
# allow-two-primaries cram-hmac-algshared-secret after-sb-0pri
# after-sb-1pri after-sb-2pri always-asbprr-conflict
# ping-timeout data-integrity-alg tcp-corkon-congestion
#congestion-fill congestion-extents csums-alg verify-alg
# use-rle
}
syncer {
rate 1024M; #设置主备节点同步时的网络速率
}
}
|
释： on-io-error 策略可能为以下选项之一 detach 分离：这是默认和推荐的选项，如果在节点上发生底层的硬盘I/O错误，它会将设备运行在Diskless无盘模式下 pass_on：DRBD会将I/O错误报告到上层，在主节点上，它会将其报告给挂载的文件系统，但是在此节点上就往往忽略（因此此节点上没有可以报告的上层） -local-in-error：调用本地磁盘I/O处理程序定义的命令；这需要有相应的local-io-error调用的资源处理程序处理错误的命令；这就给管理员有足够自由的权力命令命令或是脚本调用local-io-error处理I/O错误定义一个资源
3.分别在两台机器上各添加一块硬盘，并分区 [iyunv@zxb ~]#fdisk /dev/sdb 设备 Boot Start End Blocks Id System
/dev/sdb1 2048 2099199 1048576 8e Linux LVM [iyunv@zxb2 ~]#fdisk /dev/sdb 设备Boot Start End Blocks Id System
/dev/sdb1 2048 2099199 1048576 8e Linux LVM
4.创建配置文件 [iyunv@zxb1 ~]# cat /etc/drbd.d/mysql.res
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
| resource mysql { #资源名称
protocol C; #使用协议
meta-disk internal;
device /dev/drbd1;#DRBD设备名称
syncer {
verify-alg sha1;#加密算法
}
net {
allow-two-primaries;
}
on zxb {
disk /dev/sdb1; #drbd1使用的磁盘分区为"mysql"
address 10.0.0.128:7789;
}
on zxb2 {
disk /dev/sdb1;
address 10.0.0.129:7789;}
}
|
5.然后把配置文件copy到对面的机器上 [iyunv@zxb1 ~]# scp -rp /etc/drbd.d/* zxb2:/etc/drbd.d/
6.在zxb上面启动 [iyunv@zxb ~]#drbdadm create-md mysql initializing activity log initializing bitmap (160 KB) to all zero Writing meta data... New drbd meta data block successfullycreated. [iyunv@zxb ~]# modprobe drbd #查看内核是否已经加载了模块： [iyunv@zxb ~]#drbdadm up mysql [iyunv@zxb ~]# drbdadm -- --force primary mysql [iyunv@zxb ~]# cat /proc/drbd #查看状态 1
2
3
4
5
6
| version: 8.4.10-1 (api:1/proto:86-101)
GIT-hash: a4d5de01fffd7e4cde48a080e2c686f9e8cebf4c build by mockbuild@,2017-09-15 14:23:22
1: cs:Connected ro
Primary/Unknow
ds:UpToDate/UnknownC r-----
ns:2136 nr:1099935 dw:1102071 dr:12794 al:11 bm:0 lo:0 pe:0ua:0 ap:0 ep:1 wo:f oos:0
|
7.在对端节点（zxb2）执行 root@zxb2 ~]#drbdadm create-md mysq [iyunv@zxb2 ~]# modprobe drbd [iyunv@zxb2 ~]#drbdadm up mysql
[iyunv@zxb2 ~]# cat /proc/drbd #同步完数据后,查看状态 1
2
3
4
5
6
| version: 8.4.10-1 (api:1/proto:86-101)
GIT-hash: a4d5de01fffd7e4cde48a080e2c686f9e8cebf4c build by mockbuild@,2017-09-15 14:23:22
1: cs:Connected ro:
Secondary/Primary
ds:UpToDate/UpToDate C r-----
ns:1099935 nr:2136 dw:53563 dr:1052363 al:18 bm:0 lo:0 pe:0ua:0 ap:0 ep:1 wo:f oos:0
|
8.格式化drbd [iyunv@zxb ~]# mkfs.xfs /dev/drbd1
② .配置pacemaker+corosync 1.两个节点配置所需的安装包 [iyunv@zxb ~]# yum install -y pacemaker pcs psmisc policycoreutils-python
[iyunv@zxb2 ~]# yum install -y pacemaker pcs psmisc policycoreutils-python
2.启动pcs并设置开机启动
[iyunv@zxb ~]# systemctl start pcsd.service
[iyunv@zxb ~]# systemctl enable pcsd.service
[iyunv@zxb2 ~]#systemctl start pcsd.service
[iyunv@zxb2 ~]#systemctl enable pcsd.service
3.修改hacluster的密码（用户装完软件后默认生成）
[iyunv@zxb ~]# echo 1 | passwd --stdin hacluster
[iyunv@zxb2 ~]# echo 1 | passwd --stdin hacluster
接下来在某一节点上执行
4.注册pcs集群主机（用户名密码在上）
[iyunv@zxb2 ~]# pcs cluster auth zxb zxb2
zxb: authorized
zxb2: authorized
5.在集群上创建两台集群
[iyunv@zxb ~]# pcs cluster setup --name mycluster zxb zxb2 --force
6.查看生成的corosync配置文件
[iyunv@zxb2 ~]# ls /etc/corosync/
corosync.conf corosync.conf.example corosync.conf.example.udpu corosync.xml.example uidgid.d
7.查看corosync配置文件是否有刚刚注册的文件
[iyunv@zxb corosync]# cat corosync.conf
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
| totem {
version: 2
secauth: off
cluster_name: mycluster
transport: udpu
}
nodelist {
node {
ring0_addr: zxb2
nodeid: 1
}
node {
ring0_addr: zxb3
nodeid: 2
}
}
quorum {
provider: corosync_votequorum
two_node: 1
}
logging {
to_logfile: yes
logfile: /var/log/cluster/corosync.log
to_syslog: yes
}
|
8.启动集群
[iyunv@zxb2 ~]# pcs cluster start --all
zxb: Starting Cluster...
zxb2: Starting Cluster...
##相当于启动pacemaker和corosync
[iyunv@zxb ~]# ps -ef |grep pacemaker
1
2
3
4
5
6
7
8
| root 1757 1 0 14:54 ? 00:00:02 /usr/sbin/pacemakerd -f
haclust+ 1758 1757 0 14:54 ? 00:00:50 /usr/libexec/pacemaker/cib
root 1759 1757 0 14:54 ? 00:00:01 /usr/libexec/pacemaker/stonithd
root 1760 1757 0 14:54 ? 00:00:10 /usr/libexec/pacemaker/lrmd
haclust+ 1761 1757 0 14:54 ? 00:00:15 /usr/libexec/pacemaker/attrd
haclust+ 1762 1757 0 14:54 ? 00:00:21 /usr/libexec/pacemaker/pengine
haclust+ 1763 1757 0 14:54 ? 00:00:19 /usr/libexec/pacemaker/crmd
root 35211 34400 0 17:59 pts/0 00:00:00 grep --color=auto pacemaker
|
[iyunv@zxb ~]# ps -ef |grep corosync
1
2
| root 1750 1 2 14:54 ? 00:05:00 corosync
root 35213 34400 0 17:59 pts/0 00:00:00 grep --color=auto corosync
|
9.查看集群状态（显示no faults为正常）
[iyunv@zxb ~]# corosync-cfgtool -s
1
2
3
4
5
6
| Printing ring status.
Local node ID 1
RING ID 0
id = 10.0.0.128
status = ring 0 active with
no faults
|
[iyunv@zxb2 ~]# corosync-cfgtool -s
1
2
3
4
5
6
| Printing ring status.
Local node ID 2
RING ID 0
id = 10.0.0.129
status = ring 0 active with
no faults
|
10.安装crmsh来管理集群(从github来下载，然后解压直接安装)：两个节点都安装，便于管理
[iyunv@zxb ~]# ls
crmsh-2.3.2.tar
[iyunv@zxb ~]# tar xf crmsh-2.3.2.tar
[iyunv@zxb ~]#cd crmsh-2.3.2
[iyunv@zxb crmsh-2.3.2]# python setup.py install
11.查看状态
1
2
3
4
5
6
7
8
9
10
11
| crm(live)#
status
Stack: corosync
Current DC: zxb (version 1.1.16-12.el7_4.4-94ff4df) - partition with quorum
Last updated: Fri Oct 27 18:15:49 2017
Last change: Fri Oct 27 18:15:39 2017 by root via cibadmin on zxb
2 nodes configured
0 resources configured
Online: [ zxb zxb2 ]
No resources
crm(live)#
|
③配置moosefs(mfs)
1.在master上配置
创建mfs用户（注意接下来几台的用户uid和gid要一致）
[iyunv@zxb ~]# useradd mfs
[iyunv@zxb ~]# id mfs
uid=1002(mfs) gid=1002(mfs) 组=1002(mfs)
创建安装目录，并赋予权限
[iyunv@zxb ~]# mkdir /usr/local/mfs
[iyunv@zxb ~]# chown -R mfs:mfs /usr/local/mfs/
下载依赖包和安装包
[iyunv@zxb ~]# cd /usr/local/src
[iyunv@zxb src]# yum install zlib-devel -
[iyunv@zxb src]# wget https://github.com/moosefs/moosefs/archive/v3.0.96.tar.gz
解压并编译
[iyunv@zxb src]# tar xf v3.0.96.tar.gz
[iyunv@zxb src]# cd moosefs-3.0.96/
[iyunv@zxb moosefs-3.0.96]# ./configure --prefix=/usr/local/mfs --with-default-user=mfs --with-default-group=mfs --disable-mfschunkserver --disable-mfsmount
[iyunv@zxb moosefs-3.0.96]# make && make install
配置master,将所需要的sample文件命名为cfg文件
[iyunv@zxb moosefs-3.0.96]# cd /usr/local/mfs/etc/mfs/
[iyunv@zxb mfs]# ls
mfsexports.cfg.sample mfsmaster.cfg.sample mfsmetalogger.cfg.sample mfstopology.cfg.sample
[iyunv@zxb mfs]# cp mfsexports.cfg.sample mfsexports.cfg
[iyunv@zxb mfs]# cp mfsmaster.cfg.sample mfsmaster.cfg
修改控制文件mfsexports.cfg,默认使用mfsmaster.cfg.
[iyunv@zxb mfs]# cat mfsexports.cf
* / rw,alldirs,mapall=mfs:mfs,password=1
* . rw
##mfsexports.cfg 文件中，每一个条目就是一个配置规则，而每一个条目又分为三个部分，其中第一部分是mfs客户端的ip地址或地址范围，第二部分是被挂载的目录，第三个部分用来设置mfs客户端可以拥有的访问权限。
开启元数据，默认是empty，需要手工开启
[iyunv@zxb mfs]# cd /usr/local/mfs/var/mfs/
[iyunv@zxb mfs]# cp metadata.mfs.empty metadata.mfs
启动master
[iyunv@zxb mfs]# /usr/local/mfs/sbin/mfsmaster
1
2
3
4
5
6
7
8
9
10
11
12
13
| open files limit has been set to: 16384
working directory: /usr/local/mfs/var/mfs
lockfile created and locked
initializing mfsmaster modules ...
exports file has been loaded
mfstopology configuration file (/usr/local/mfs/etc/mfstopology.cfg) not found - using defaults
loading metadata ...
metadata file has been loaded
no charts data file - initializing empty charts
master <-> metaloggers module: listen on *:9419
master <-> chunkservers module: listen on *:9420
main master server module: listen on *:9421
mfsmaster daemon initialized properly
|
##检查进程和端口是否启动
[iyunv@zxb mfs]# ps -ef |grep mfs
1
2
| mfs 44608 1 1 18:44 ? 00:00:00 /usr/local/mfs/sbin/mfsmaster
root 44630 34400 0 18:45 pts/0 00:00:00 grep --color=auto mfs
|
[iyunv@zxb mfs]# netstat -ntlp
1
2
3
4
5
| Active Internet connections (only servers)
Proto Recv-Q Send-Q Local Address Foreign Address State PID/Program name
tcp 0 0 0.0.0.0:9419 0.0.0.0:* LISTEN 44608/mfsmaster
tcp 0 0 0.0.0.0:9420 0.0.0.0:* LISTEN 44608/mfsmaster
tcp 0 0 0.0.0.0:9421 0.0.0.0:* LISTEN 44608/mfsmaster
|
配置mfsmaster启动脚本，有启动脚本接管，并设置开机启动
[iyunv@zxb ~]# cat /etc/systemd/system/mfsmaster.service
1
2
3
4
5
6
7
8
9
10
11
12
| [Unit]
Description=mfs
After=network.target
[Service]
Type=forking
ExecStart=/usr/local/mfs/sbin/mfsmaster start
ExecStop=/usr/local/mfs/sbin/mfsmaster stop
PrivateTmp=true
[Install]
WantedBy=multi-user.target
|
[iyunv@zxb ~]# /usr/local/mfs/sbin/mfsmaster stop
sending SIGTERM to lock owner (pid:44899)
waiting for termination terminated
[iyunv@zxb ~]# systemctl enable mfsmaster
Created symlink from /etc/systemd/system/multi-user.target.wants/mfsmaster.service to /etc/systemd/system/mfsmaster.service.
配置高可用
配置资源
[iyunv@zxb ~]# crm
1
2
3
4
5
6
| crm(live)# configure
crm(live)configure# primitive mfs_drbd ocf:linbit:drbd params drbd_resource=mysql op monitor role=Master interval=10 timeout=20 op monitor role=Slave interval=20 timeout=20 op start timeout=240 op stop timeout=100
crm(live)configure# verify
crm(live)configure# ms ms_mfs_drbd mfs_drbd meta master-max="1" master-node-max="1" clone-max="2" clone-node-max="1" notify="true"
crm(live)configure# verify
crm(live)configure# commit
|
配置挂载资源
1
2
| crm(live)configure# primitive mystore ocf:heartbeat:Filesystem params device=/dev/drbd1 directory=/usr/local/mfs fstype=xfs op start timeout=60 op stop timeout=60
crm(live)configure# verify
|
给drbd和挂载资源做亲缘绑定，并做顺序约束（当drbd起来之后进行挂载）
1
2
3
| crm(live)configure# colocation mfs_drbd_with_mystore inf: ms_mfs_drbd mystore
crm(live)configure# order ms_mfs_drbd_before_mystore Mandatory: ms_mfs_drbd mystore:start
crm(live)configure# verify
|
配置mfs资源
1
| crm(live)configure# primitive mfs systemd:mfsmaster op monitor timeout=100 interval=100 op start timeout=100 interval=0 op stop time
|
给mfs和挂载资源做亲缘绑定，并做顺序约束（当挂载后启动mfs服务）
1
2
3
4
| crm(live)configure# colocation mfs_with_mystore inf: mystore mfs
crm(live)configure# order mystore_with_mfs Mandatory: mystore mfs
crm(live)configure# verify
crm(live)configure# commit
|
配置VIP,将vip和绑定一起
1
2
3
4
5
| crm(live)configure# primitive vip ocf:heartbeat:IPaddr params ip=10.0.0.250
crm(live)configure# colocation vip_with_mfs inf: vip mfs
crm(live)configure# verify
crm(live)configure# commit
crm(live)configure# show
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
| node 1: zxb \
attributes standby=off
node 2: zxb2 \
attributes standby=off
primitive mfs systemd:mfsmaster \
op monitor timeout=100 interval=30 \
op start timeout=100 interval=0 \
op stop timeout=100 interval=0
primitive mfs_drbd ocf:linbit:drbd \
params drbd_resource=mysql \
op monitor role=Master interval=10 timeout=20 \
op monitor role=Slave interval=20 timeout=20 \
op start timeout=240 interval=0 \
op stop timeout=100 interval=0
primitive mystore Filesystem \
params device="/dev/drbd1" directory="/usr/local/mfs" fstype=xfs \
op start timeout=60 interval=0 \
op stop timeout=60 interval=0
primitive vip IPaddr \
params ip=10.0.0.250
ms ms_mfs_drbd mfs_drbd \
meta master-max=1 master-node-max=1 clone-max=2 clone-node-max=1 notify=true
colocation mfs_with_mystore inf: mystore mfs
order ms_mfs_drbd_before_mystore Mandatory: ms_mfs_drbd:promote mystore:start
colocation ms_mfs_drbd_with_mystore inf: mystore ms_mfs_drbd
order mystore_with_mfs Mandatory: mystore mfs
colocation vip_with_mfs inf: vip mfs
property cib-bootstrap-options: \
have-watchdog=false \
dc-version=1.1.16-12.el7_4.4-94ff4df \
cluster-infrastructure=corosync \
cluster-name=mycluster \
stonith-enabled=false \
no-quorum-policy=ignore \
migration-limit=1
|
2.backup,drbd会同步数据，所以只需要创建用户、目录，和启动脚本
[iyunv@zxb2 ~]# id mfs
uid=1002(mfs) gid=1002(mfs) 组=1002(mfs
[iyunv@zxb2 ~]# mkdir /usr/local/mfs
[iyunv@zxb2 ~]# chown -R mfs:mfs /usr/local/mfs/
[iyunv@zxb2 ~]# cat /etc/systemd/system/mfsmaster.service
1
2
3
4
5
6
7
8
9
10
11
12
| [Unit]
Description=mfs
After=network.target
[Service]
Type=forking
ExecStart=/usr/local/mfs/sbin/mfsmaster start
ExecStop=/usr/local/mfs/sbin/mfsmaster stop
PrivateTmp=true
[Install]
WantedBy=multi-user.target
|
3.配置mfschunkserver（两台配置一样zxb3.zxb4)
[iyunv@zxb3 src]# tar xf v3.0.96.tar.gz
[iyunv@zxb3 src]# cd moosefs-3.0.96/
[iyunv@zxb3 moosefs-3.0.96]# ./configure --prefix=/usr/local/mfs --with-default-user=mfs --with-default-group=mfs --disable-mfsmaster --disable-mfsmount
[iyunv@zxb3 moosefs-3.0.96]# make && make install
修改MASTER_HOST指向VIP
[iyunv@zxb3 mfs]# vim mfschunkserver.cfg
MASTER_HOST = 10.0.0.250
配置mfsshdd.cfg
[iyunv@zxb3 mfs]# mkdir /mfstest
[iyunv@zxb3 mfs]# chown -R mfs:mfs /mfstest
[iyunv@zxb3 mfs]# cp mfshdd.cfg.sample mfshdd.cf
[iyunv@zxb3 mfs]# vim mfshdd.cfg
/mfstest
#mfshdd.cfg该文件用来设置你将 Chunk Server 的哪个目录共享出去给 Master Server进行管理。当然，虽然这里填写的是共享的目录，但是这个目录后面最好是一个单独的分区。
启动服务
[iyunv@zxb3 mfs]# /usr/local/mfs/sbin/mfschunkserver start
1
2
3
4
5
6
7
8
9
10
11
| open files limit has been set to: 16384
working directory: /usr/local/mfs/var/mfs
lockfile created and locked
setting glibc malloc arena max to 4
setting glibc malloc arena test to 4
initializing mfschunkserver modules ...
hdd space manager: path to scan: /mfstest/
hdd space manager: start background hdd scanning (searching for available chunks)
main server module: listen on *:9422
no charts data file - initializing empty charts
mfschunkserver daemon initialized properly
|
[iyunv@zxb3 mfs]# netstat -ntlp |grep mfs
tcp 0 0 0.0.0.0:9422 0.0.0.0:* LISTEN 44473/mfschunkserve
4.客户端配置
安装FUSH
[iyunv@client src]# yum install fuse fuse-devel
[iyunv@client src]# lsmod|grep fuse
fuse 79892 2
安装挂载客户端
[iyunv@client src]# id mfs
uid=1002(mfs) gid=1002(mfs) 组=1002(mfs)
[iyunv@client src]# tar xf v3.0.96.tar.gz
[iyunv@client src]# cd moosefs-3.0.96/
[iyunv@client moosefs-3.0.96]# ./configure --prefix=/usr/local/mfs --with-default-user=mfs --with-default-group=mfs --disable-mfsmaster --disable-mfschunkserver --enable-mfsmount
创建挂载目录
[iyunv@client moosefs-3.0.96]# mkdir /mfstest
[iyunv@client moosefs-3.0.96]# chown -R mfs:mfs /mfstest/
测试：
在客户端上挂载文件系统，远端IP为vip
[iyunv@client ~]# /usr/local/mfs/bin/mfsmount /mfstest/ -H 10.0.0.250 -p
MFS Password:
mfsmaster accepted connection with parameters: read-write,restricted_ip,admin ; root mapped to root:root
[iyunv@client ~]# df -h
Filesystem Size Used Avail Use% Mounted on
/dev/mapper/vg_zxb4-lv_root
26G 3.5G 22G 14% /
tmpfs 931M 0 931M 0% /dev/shm
/dev/sda1 477M 28M 425M 7% /boot
10.0.0.250:9421 34G 5.7G 29G 17% /mfstest
写入本地文件测试
[iyunv@client ~]# echo "master" >/mfstest/1.txt
[iyunv@client~]# cat /mfstest/1.txt
master
查看master端的变化
[iyunv@zxb mfs]# pwd
/usr/local/mfs/var/mfs
[iyunv@zxb mfs]# cat changelog.0.mfs
1
2
3
4
5
6
7
8
9
10
| 10: 1509166409|ACCESS(1)
11: 1509166411|
CREATE(1,1.txt,
1,438,18,0,0,0):4
12: 1509166411|ACQUIRE(4,4)
13: 1509166411|WRITE(4,0,1,0):7
14: 1509166411|LENGTH(4,7,0)
15: 1509166411|UNLOCK(7)
16: 1509166414|ACCESS(1)
17: 1509166415|AMTIME(4,1509166414,1509166411,1509166411)
|
当停止master时，数据会转移到backup,并测试
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
| crm(live)#
node standby
crm(live)#
status
Stack: corosync
Current DC: zxb (version 1.1.16-12.el7_4.4-94ff4df) - partition with quorum
Last updated: Sat Oct 28 21:37:02 2017
Last change: Sat Oct 28 21:37:01 2017 by root via crm_attribute on zxb
2 nodes configured
5 resources configured
Node zxb: standby
Online: [ zxb2 ]
Full list of resources:
Master/Slave Set: ms_mfs_drbd [mfs_drbd]
Masters: [ zxb2 ]
Stopped: [ zxb ]
mystore (ocf::heartbeat:Filesystem): Started zxb2
mfs (systemd:mfsmaster): Started zxb2
vip (ocf::heartbeat:IPaddr): Started zxb2
|
[iyunv@zxb4 mfstest]# echo "2.txt" >/mfstest/2.txt
[iyunv@zxb mfs]# pwd
/usr/local/mfs/var/mfs
[iyunv@zxb mfs]# cat changelog.0.mfs
1
2
3
4
5
6
7
| 26: 1509200272|CREATE(1,2.txt,1,438,18,1002,1002,0):3
27: 1509200272|ACQUIRE(5,3)
28: 1509200274|WRITE(3,0,1,0):2
29: 1509200277|LENGTH(3,6,0)
30: 1509200277|UNLOCK(2)
31: 1509200329|SESDISCONNECTED(5)
32: 1509200445|SESDISCONNECTED(5)
|
终于结束了。。。。。。。。
|
QQ群⑧：
窥视卡
雷达卡
发表于 2017-10-30 09:36:15
提升卡
置顶卡
沉默卡
喧嚣卡
变色卡
千斤顶
显身卡
