MySQL主从复制--MySQL5.6基于GTID及多线程复制

2eew

大纲
一、系统环境
二、MySQL初始化安装过程
三、基于GTID的主从模式配置过程

一、系统环境

系统环境

CentOS5.8 x86_64

master.network.com    master    172.16.1.101

slave.network.com     slave     172.16.1.105

软件包

• mysql-5.6.26-linux-glibc2.5-x86_64.tar.gz(二进制通用安装包)

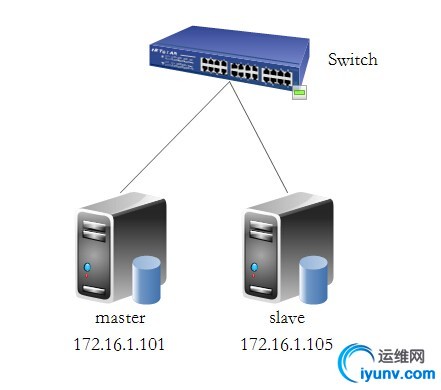

拓扑图

二、MySQL初始化安装过程

1、时间同步

1 2 3 4 5 6 7 8 9

[iyunv@master ~]# ntpdate s2c.time.edu.cn [iyunv@slave ~]# ntpdate s2c.time.edu.cn 可根据需要在每个节点上定义crontab任务 [iyunv@master ~]# which ntpdate /sbin/ntpdate [iyunv@master ~]# echo "*/5 * * * * /sbin/ntpdate s2c.time.edu.cn &> /dev/null" >> /var/spool/cron/root [iyunv@master ~]# crontab -l */5 * * * * /sbin/ntpdate s2c.time.edu.cn &> /dev/null

2、主机名称要与uname -n保持一致，并通过/etc/hosts解析

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26

master [iyunv@master ~]# hostname master.network.com [iyunv@master ~]# uname -n master.network.com [iyunv@master ~]# sed -i 's@\(HOSTNAME=\).*@\1master.network.com@g'  /etc/sysconfig/network slave [iyunv@slave ~]# hostname slave.network.com [iyunv@slave ~]# uname -n slave.network.com [iyunv@slave ~]# sed -i 's@\(HOSTNAME=\).*@\1slave.network.com@g'  /etc/sysconfig/network master添加hosts解析 [iyunv@master ~]# vim /etc/hosts [iyunv@master ~]# cat /etc/hosts # Do not remove the following line, or various programs # that require network functionality will fail. 127.0.0.1       CentOS5.8 CentOS5 localhost.localdomain localhost ::1     localhost6.localdomain6 localhost6 172.16.1.101    master.network.com     master 172.16.1.105    slave.network.com  slave 拷贝此hosts文件至slave [iyunv@master ~]# scp /etc/hosts slave:/etc/ root@slave's password: hosts                  100%  233     0.2KB/s   00:00

3、关闭iptables和selinux

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31

master [iyunv@master ~]# service iptables stop [iyunv@master ~]# vim /etc/sysconfig/selinux [iyunv@master ~]# cat /etc/sysconfig/selinux # This file controls the state of SELinux on the system. # SELINUX= can take one of these three values: #   enforcing - SELinux security policy is enforced. #   permissive - SELinux prints warnings instead of enforcing. #   disabled - SELinux is fully disabled. #SELINUX=permissive SELINUX=disabled # SELINUXTYPE= type of policy in use. Possible values are: #   targeted - Only targeted network daemons are protected. #   strict - Full SELinux protection. SELINUXTYPE=targeted slave [iyunv@slave ~]# service iptables stop [iyunv@slave ~]# vim /etc/sysconfig/selinux [iyunv@slave ~]# cat /etc/sysconfig/selinux # This file controls the state of SELinux on the system. # SELINUX= can take one of these three values: #   enforcing - SELinux security policy is enforced. #   permissive - SELinux prints warnings instead of enforcing. #   disabled - SELinux is fully disabled. #SELINUX=permissive SELINUX=disabled # SELINUXTYPE= type of policy in use. Possible values are: #   targeted - Only targeted network daemons are protected. #   strict - Full SELinux protection. SELINUXTYPE=targeted

4、Master安装并配置MySQL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135 136 137 138 139 140 141

数据目录底层最好是个逻辑卷，我这里就不再演示逻辑卷的创建了，我的博文中有，此处没有使用逻辑卷 准备数据目录并添加mysql用户 [iyunv@Master ~]# mkdir -pv /mydata/data mkdir: created directory `/mydata' mkdir: created directory `/mydata/data' [iyunv@Master ~]# groupadd -g 3306 mysql [iyunv@Master ~]# useradd -u 3306 -g mysql -M -s /sbin/nologin -d /mydata/data/ mysql [iyunv@Master ~]# chown -R mysql.mysql /mydata/data/ 解压并初始化mysql [iyunv@Master ~]# cd /tmp/ [iyunv@Master tmp]# tar xf mysql-5.6.26-linux-glibc2.5-x86_64.tar.gz -C /usr/local/ [iyunv@Master tmp]# cd /usr/local/ [iyunv@master local]# ln -sv mysql-5.6.26-linux-glibc2.5-x86_64  mysql create symbolic link `mysql' to `mysql-5.6.26-linux-glibc2.5-x86_64' [iyunv@Master local]# cd mysql [iyunv@Master mysql]# chown -R root.mysql ./* [iyunv@master mysql]# ll total 232 drwxr-xr-x  2 root mysql   4096 Jan 16 12:48 bin -rw-r--r--  1 root mysql  17987 Jul 15  2015 COPYING drwxr-xr-x  3 root mysql   4096 Jan 16 12:49 data drwxr-xr-x  2 root mysql   4096 Jan 16 12:49 docs drwxr-xr-x  3 root mysql   4096 Jan 16 12:48 include -rw-r--r--  1 root mysql 104897 Jul 15  2015 INSTALL-BINARY drwxr-xr-x  3 root mysql   4096 Jan 16 12:49 lib drwxr-xr-x  4 root mysql   4096 Jan 16 12:49 man drwxr-xr-x 10 root mysql   4096 Jan 16 12:49 mysql-test -rw-r--r--  1 root mysql   2496 Jul 15  2015 README drwxr-xr-x  2 root mysql   4096 Jan 16 12:49 scripts drwxr-xr-x 28 root mysql   4096 Jan 16 12:49 share drwxr-xr-x  4 root mysql   4096 Jan 16 12:49 sql-bench drwxr-xr-x  2 root mysql   4096 Jan 16 12:49 support-files [iyunv@master mysql]# scripts/mysql_install_db --user=mysql --datadir=/mydata/data/ Installing MySQL system tables...2016-01-16 12:57:52 0 [Warning] 'THREAD_CONCURRENCY' is deprecated and will be removed in a future release. 2016-01-16 12:57:52 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details). 2016-01-16 12:57:52 0 [Note] ./bin/mysqld (mysqld 5.6.26-log) starting as process 19105 ... 2016-01-16 12:57:53 19105 [Note] InnoDB: Using atomics to ref count buffer pool pages 2016-01-16 12:57:53 19105 [Note] InnoDB: The InnoDB memory heap is disabled 2016-01-16 12:57:53 19105 [Note] InnoDB: Mutexes and rw_locks use GCC atomic builtins 2016-01-16 12:57:53 19105 [Note] InnoDB: Memory barrier is not used 2016-01-16 12:57:53 19105 [Note] InnoDB: Compressed tables use zlib 1.2.3 2016-01-16 12:57:53 19105 [Note] InnoDB: Using Linux native AIO 2016-01-16 12:57:53 19105 [Note] InnoDB: Not using CPU crc32 instructions 2016-01-16 12:57:53 19105 [Note] InnoDB: Initializing buffer pool, size = 128.0M 2016-01-16 12:57:53 19105 [Note] InnoDB: Completed initialization of buffer pool 2016-01-16 12:57:53 19105 [Note] InnoDB: Highest supported file format is Barracuda. 2016-01-16 12:57:53 19105 [Note] InnoDB: 128 rollback segment(s) are active. 2016-01-16 12:57:53 19105 [Note] InnoDB: 5.6.26 started; log sequence number 1600627 2016-01-16 12:57:54 19105 [Note] Binlog end 2016-01-16 12:57:54 19105 [Note] InnoDB: FTS optimize thread exiting. 2016-01-16 12:57:54 19105 [Note] InnoDB: Starting shutdown... 2016-01-16 12:57:56 19105 [Note] InnoDB: Shutdown completed; log sequence number 1626007 OK Filling help tables...2016-01-16 12:57:56 0 [Warning] 'THREAD_CONCURRENCY' is deprecated and will be removed in a future release. 2016-01-16 12:57:56 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details). 2016-01-16 12:57:56 0 [Note] ./bin/mysqld (mysqld 5.6.26-log) starting as process 19128 ... 2016-01-16 12:57:56 19128 [Note] InnoDB: Using atomics to ref count buffer pool pages 2016-01-16 12:57:56 19128 [Note] InnoDB: The InnoDB memory heap is disabled 2016-01-16 12:57:56 19128 [Note] InnoDB: Mutexes and rw_locks use GCC atomic builtins 2016-01-16 12:57:56 19128 [Note] InnoDB: Memory barrier is not used 2016-01-16 12:57:56 19128 [Note] InnoDB: Compressed tables use zlib 1.2.3 2016-01-16 12:57:56 19128 [Note] InnoDB: Using Linux native AIO 2016-01-16 12:57:56 19128 [Note] InnoDB: Not using CPU crc32 instructions 2016-01-16 12:57:56 19128 [Note] InnoDB: Initializing buffer pool, size = 128.0M 2016-01-16 12:57:56 19128 [Note] InnoDB: Completed initialization of buffer pool 2016-01-16 12:57:56 19128 [Note] InnoDB: Highest supported file format is Barracuda. 2016-01-16 12:57:56 19128 [Note] InnoDB: 128 rollback segment(s) are active. 2016-01-16 12:57:56 19128 [Note] InnoDB: Waiting for purge to start 2016-01-16 12:57:56 19128 [Note] InnoDB: 5.6.26 started; log sequence number 1626007 2016-01-16 12:57:56 19128 [Note] Binlog end 2016-01-16 12:57:57 19128 [Note] InnoDB: FTS optimize thread exiting. 2016-01-16 12:57:57 19128 [Note] InnoDB: Starting shutdown... 2016-01-16 12:57:58 19128 [Note] InnoDB: Shutdown completed; log sequence number 1626017 OK To start mysqld at boot time you have to copy support-files/mysql.server to the right place for your system PLEASE REMEMBER TO SET A PASSWORD FOR THE MySQL root USER ! To do so, start the server, then issue the following commands:   ./bin/mysqladmin -u root password 'new-password'   ./bin/mysqladmin -u root -h master.network.com password 'new-password' Alternatively you can run:   ./bin/mysql_secure_installation which will also give you the option of removing the test databases and anonymous user created by default.  This is strongly recommended for production servers. See the manual for more instructions. You can start the MySQL daemon with:   cd . ; ./bin/mysqld_safe & You can test the MySQL daemon with mysql-test-run.pl   cd mysql-test ; perl mysql-test-run.pl Please report any problems at http://bugs.mysql.com/ The latest information about MySQL is available on the web at   http://www.mysql.com Support MySQL by buying support/licenses at http://shop.mysql.com WARNING: Found existing config file ./my.cnf on the system. Because this file might be in use, it was not replaced, but was used in bootstrap (unless you used --defaults-file) and when you later start the server. The new default config file was created as ./my-new.cnf, please compare it with your file and take the changes you need. WARNING: Default config file /etc/my.cnf exists on the system This file will be read by default by the MySQL server If you do not want to use this, either remove it, or use the --defaults-file argument to mysqld_safe when starting the server 复制服务启动脚本 [iyunv@Master mysql]# cp support-files/mysql.server /etc/rc.d/init.d/mysqld [iyunv@Master mysql]# chkconfig --add mysqld 增加PATH环境变量并使之生效 [iyunv@master mysql]# echo 'export PATH=$PATH:/usr/local/mysql/bin/mysql' > /etc/profile.d/mysql.sh [iyunv@master mysql]# . /etc/profile.d/mysql.sh 将mysql5.6.26的安装包复制到slave节点上 [iyunv@master mysql]# scp  /tmp/mysql-5.6.26-linux-glibc2.5-x86_64.tar.gz slave.network.com:/tmp/ The authenticity of host 'slave.network.com (172.16.1.105)' can't be established. RSA key fingerprint is 13:42:92:7b:ff:61:d8:f3:7c:97:5f:22:f6:71:b3:24. Are you sure you want to continue connecting (yes/no)? yes Warning: Permanently added 'slave.network.com' (RSA) to the list of known hosts. mysql-5.6.26-linux-glibc2.5-x86_64.tar.gz                100%  298MB   4.7MB/s   01:03

5、Master安装并配置MySQL

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122

准备数据目录并添加mysql用户 [iyunv@slave ~]# mkdir -pv /mydata/data mkdir: created directory `/mydata' mkdir: created directory `/mydata/data' [iyunv@slave ~]# groupadd -g 3306 mysql [iyunv@slave ~]# useradd -u 3306 -g mysql -M -s /sbin/nologin -d /mydata/data/ mysql [iyunv@slave ~]# chown -R mysql.mysql /mydata/data/ 解压并初始化mysql [iyunv@slave ~]# cd /tmp/ [iyunv@slave tmp]# tar xf mysql-5.6.26-linux-glibc2.5-x86_64.tar.gz -C /usr/local/ [iyunv@slave tmp]# cd /usr/local/ [iyunv@slave local]# ln -sv mysql-5.6.26-linux-glibc2.5-x86_64  mysql create symbolic link `mysql' to `mysql-5.6.26-linux-glibc2.5-x86_64' [iyunv@slave local]# cd mysql [iyunv@slave mysql]# chown -R root.mysql ./* [iyunv@slave mysql]# scripts/mysql_install_db --user=mysql --datadir=/mydata/data/ Installing MySQL system tables...2016-01-16 13:55:00 0 [Warning] 'THREAD_CONCURRENCY' is deprecated and will be removed in a future release. 2016-01-16 13:55:00 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details). 2016-01-16 13:55:00 0 [Note] ./bin/mysqld (mysqld 5.6.26) starting as process 18199 ... 2016-01-16 13:55:00 18199 [Warning] You need to use --log-bin to make --binlog-format work. 2016-01-16 13:55:00 18199 [Note] InnoDB: Using atomics to ref count buffer pool pages 2016-01-16 13:55:00 18199 [Note] InnoDB: The InnoDB memory heap is disabled 2016-01-16 13:55:00 18199 [Note] InnoDB: Mutexes and rw_locks use GCC atomic builtins 2016-01-16 13:55:00 18199 [Note] InnoDB: Memory barrier is not used 2016-01-16 13:55:00 18199 [Note] InnoDB: Compressed tables use zlib 1.2.3 2016-01-16 13:55:00 18199 [Note] InnoDB: Using Linux native AIO 2016-01-16 13:55:00 18199 [Note] InnoDB: Not using CPU crc32 instructions 2016-01-16 13:55:00 18199 [Note] InnoDB: Initializing buffer pool, size = 128.0M 2016-01-16 13:55:00 18199 [Note] InnoDB: Completed initialization of buffer pool 2016-01-16 13:55:00 18199 [Note] InnoDB: The first specified data file ./ibdata1 did not exist: a new database to be created! 2016-01-16 13:55:00 18199 [Note] InnoDB: Setting file ./ibdata1 size to 12 MB 2016-01-16 13:55:00 18199 [Note] InnoDB: Database physically writes the file full: wait... 2016-01-16 13:55:01 18199 [Note] InnoDB: Setting log file ./ib_logfile101 size to 48 MB 2016-01-16 13:55:03 18199 [Note] InnoDB: Setting log file ./ib_logfile1 size to 48 MB 2016-01-16 13:55:06 18199 [Note] InnoDB: Renaming log file ./ib_logfile101 to ./ib_logfile0 2016-01-16 13:55:06 18199 [Warning] InnoDB: New log files created, LSN=45781 2016-01-16 13:55:06 18199 [Note] InnoDB: Doublewrite buffer not found: creating new 2016-01-16 13:55:06 18199 [Note] InnoDB: Doublewrite buffer created 2016-01-16 13:55:06 18199 [Note] InnoDB: 128 rollback segment(s) are active. 2016-01-16 13:55:06 18199 [Warning] InnoDB: Creating foreign key constraint system tables. 2016-01-16 13:55:06 18199 [Note] InnoDB: Foreign key constraint system tables created 2016-01-16 13:55:06 18199 [Note] InnoDB: Creating tablespace and datafile system tables. 2016-01-16 13:55:07 18199 [Note] InnoDB: Tablespace and datafile system tables created. 2016-01-16 13:55:07 18199 [Note] InnoDB: Waiting for purge to start 2016-01-16 13:55:07 18199 [Note] InnoDB: 5.6.26 started; log sequence number 0 2016-01-16 13:55:09 18199 [Note] Binlog end 2016-01-16 13:55:09 18199 [Note] InnoDB: FTS optimize thread exiting. 2016-01-16 13:55:09 18199 [Note] InnoDB: Starting shutdown... 2016-01-16 13:55:11 18199 [Note] InnoDB: Shutdown completed; log sequence number 1625977 OK Filling help tables...2016-01-16 13:55:11 0 [Warning] 'THREAD_CONCURRENCY' is deprecated and will be removed in a future release. 2016-01-16 13:55:11 0 [Warning] TIMESTAMP with implicit DEFAULT value is deprecated. Please use --explicit_defaults_for_timestamp server option (see documentation for more details). 2016-01-16 13:55:11 0 [Note] ./bin/mysqld (mysqld 5.6.26) starting as process 18224 ... 2016-01-16 13:55:11 18224 [Warning] You need to use --log-bin to make --binlog-format work. 2016-01-16 13:55:11 18224 [Note] InnoDB: Using atomics to ref count buffer pool pages 2016-01-16 13:55:11 18224 [Note] InnoDB: The InnoDB memory heap is disabled 2016-01-16 13:55:11 18224 [Note] InnoDB: Mutexes and rw_locks use GCC atomic builtins 2016-01-16 13:55:11 18224 [Note] InnoDB: Memory barrier is not used 2016-01-16 13:55:11 18224 [Note] InnoDB: Compressed tables use zlib 1.2.3 2016-01-16 13:55:11 18224 [Note] InnoDB: Using Linux native AIO 2016-01-16 13:55:11 18224 [Note] InnoDB: Not using CPU crc32 instructions 2016-01-16 13:55:11 18224 [Note] InnoDB: Initializing buffer pool, size = 128.0M 2016-01-16 13:55:11 18224 [Note] InnoDB: Completed initialization of buffer pool 2016-01-16 13:55:11 18224 [Note] InnoDB: Highest supported file format is Barracuda. 2016-01-16 13:55:11 18224 [Note] InnoDB: 128 rollback segment(s) are active. 2016-01-16 13:55:11 18224 [Note] InnoDB: 5.6.26 started; log sequence number 1625977 2016-01-16 13:55:12 18224 [Note] Binlog end 2016-01-16 13:55:12 18224 [Note] InnoDB: FTS optimize thread exiting. 2016-01-16 13:55:12 18224 [Note] InnoDB: Starting shutdown... 2016-01-16 13:55:13 18224 [Note] InnoDB: Shutdown completed; log sequence number 1625987 OK To start mysqld at boot time you have to copy support-files/mysql.server to the right place for your system PLEASE REMEMBER TO SET A PASSWORD FOR THE MySQL root USER ! To do so, start the server, then issue the following commands:   ./bin/mysqladmin -u root password 'new-password'   ./bin/mysqladmin -u root -h slave.network.com password 'new-password' Alternatively you can run:   ./bin/mysql_secure_installation which will also give you the option of removing the test databases and anonymous user created by default.  This is strongly recommended for production servers. See the manual for more instructions. You can start the MySQL daemon with:   cd . ; ./bin/mysqld_safe & You can test the MySQL daemon with mysql-test-run.pl   cd mysql-test ; perl mysql-test-run.pl Please report any problems at http://bugs.mysql.com/ The latest information about MySQL is available on the web at   http://www.mysql.com Support MySQL by buying support/licenses at http://shop.mysql.com New default config file was created as ./my.cnf and will be used by default by the server when you start it. You may edit this file to change server settings WARNING: Default config file /etc/my.cnf exists on the system This file will be read by default by the MySQL server If you do not want to use this, either remove it, or use the --defaults-file argument to mysqld_safe when starting the server 复制服务启动脚本 [iyunv@slave mysql]# cp support-files/mysql.server /etc/rc.d/init.d/mysqld [iyunv@slave mysql]# chkconfig --add mysqld

三、基于GTID的主从模式配置过程
1、编辑master的配置文件

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71

编辑配置文件，就在当前目录下(/usr/local/mysql) [iyunv@master mysql]# vim my.cnf [mysqld] binlog-format=ROW log-bin=master-bin log-slave-updates=true gtid-mode=on enforce-gtid-consistency=true master-info-repository=TABLE relay-log-info-repository=TABLE sync-master-info=1 slave-parallel-workers=2 binlog-checksum=CRC32 master-verify-checksum=1 slave-sql-verify-checksum=1 binlog-rows-query-log_events=1 server-id=1 report-port=3306 port=3306 datadir=/mydata/data innodb_file_per_table = ON socket=/tmp/mysql.sock report-host=172.16.1.101 补充 binlog-format：二进制日志的格式，有row、statement和mixed几种类型； 需要注意的是：当设置隔离级别为READ-COMMITED必须设置二进制日志格式为ROW 现在MySQL官方认为STATEMENT这个已经不再适合继续使用； 但mixed类型在默认的事务隔离级别下，可能会导致主从数据不一致； log-slave-updates、gtid-mode、enforce-gtid-consistency、report-port和report-host：用于启动GTID及满足附属的其它需求； master-info-repository和relay-log-info-repository：启用此两项，可用于实现在崩溃时保证二进制及从服务器安全的功能； sync-master-info：启用之可确保无信息丢失； slave-paralles-workers：设定从服务器的SQL线程数；0表示关闭多线程复制功能； binlog-checksum、master-verify-checksum和slave-sql-verify-checksum：启用复制有关的所有校验功能； binlog-rows-query-log-events：启用之可用于在二进制日志记录事件相关的信息，可降低故障排除的复杂度； log-bin：启用二进制日志，这是保证复制功能的基本前提； server-id：同一个复制拓扑中的所有服务器的id号必须惟一； 启动服务并查看gtid是否生效 [iyunv@master mysql]# service mysqld start Starting MySQL.........                                    [  OK  ] [iyunv@master mysql]# mysql Welcome to the MySQL monitor.  Commands end with ; or \g. Your MySQL connection id is 2 Server version: 5.6.26-log MySQL Community Server (GPL) Type 'help;' or '\h' for help. Type '\c' to clear the buffer. mysql> SHOW GLOBAL VARIABLES LIKE '%gtid%'; +---------------------------------+-------+ | Variable_name                   | Value | +---------------------------------+-------+ | binlog_gtid_simple_recovery     | OFF   | | enforce_gtid_consistency        | ON    | | gtid_executed                   |       | | gtid_mode                       | ON    | | gtid_owned                      |       | | gtid_purged                     |       | | simplified_binlog_gtid_recovery | OFF   | +---------------------------------+-------+ 7 rows in set (0.00 sec) 查看master的uuid mysql> SHOW GLOBAL VARIABLES LIKE '%uuid%'; +---------------+--------------------------------------+ | Variable_name | Value                                | +---------------+--------------------------------------+ | server_uuid   | dfc512d8-bc12-11e5-97ec-000c29fe8238 | +---------------+--------------------------------------+ 1 row in set (0.00 sec)

2、编辑slave的配置文件

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55

编辑配置文件，就在当前目录下(/usr/local/mysql) [iyunv@slave mysql]# vim my.cnf [mysqld] binlog-format=ROW log-slave-updates=true gtid-mode=on enforce-gtid-consistency=true master-info-repository=TABLE relay-log-info-repository=TABLE sync-master-info=1 slave-parallel-workers=2 binlog-checksum=CRC32 master-verify-checksum=1 slave-sql-verify-checksum=1 binlog-rows-query-log_events=1 server-id=11 report-port=3306 port=3306 log-bin=master-bin.log relay-log=relay-log datadir=/mydata/data socket=/tmp/mysql.sock report-host=172.16.1.105 启动服务并查看gtid是否生效 [iyunv@slave mysql]# service mysqld start Starting MySQL.....                                        [  OK  ] [iyunv@slave mysql]# mysql Welcome to the MySQL monitor.  Commands end with ; or \g. Your MySQL connection id is 1 Server version: 5.6.26-log MySQL Community Server (GPL) Type 'help;' or '\h' for help. Type '\c' to clear the buffer. mysql> SHOW GLOBAL VARIABLES LIKE '%gtid%'; +---------------------------------+-------+ | Variable_name                   | Value | +---------------------------------+-------+ | binlog_gtid_simple_recovery     | OFF   | | enforce_gtid_consistency        | ON    | | gtid_executed                   |       | | gtid_mode                       | ON    | | gtid_owned                      |       | | gtid_purged                     |       | | simplified_binlog_gtid_recovery | OFF   | +---------------------------------+-------+ 7 rows in set (0.00 sec) mysql> SHOW GLOBAL VARIABLES LIKE '%uuid%'; +---------------+--------------------------------------+ | Variable_name | Value                                | +---------------+--------------------------------------+ | server_uuid   | ec8230c2-bc18-11e5-9813-000c296634d1 | +---------------+--------------------------------------+ 1 row in set (0.09 sec)

3、master建立复制账号

1 2 3 4 5

mysql> GRANT REPLICATION SLAVE ON *.* TO 'repuser'@'172.16.%.%' IDENTIFIED BY 'reppass'; Query OK, 0 rows affected (0.09 sec) mysql> FLUSH PRIVILEGES; Query OK, 0 rows affected (0.01 sec)

4、启动从节点的复制线程

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100 101 102 103 104 105 106 107 108 109 110 111 112 113 114 115 116 117 118 119 120 121 122 123 124 125 126 127 128 129 130 131 132 133 134 135

mysql> CHANGE MASTER TO MASTER_HOST='master.network.com', MASTER_USER='repuser', MASTER_PASSWORD='reppass', MASTER_AUTO_POSITION=1; Query OK, 0 rows affected, 2 warnings (0.30 sec) 显示警告信息 mysql> SHOW WARNINGS\G *************************** 1. row ***************************   Level: Note    Code: 1759 Message: Sending passwords in plain text without SSL/TLS is extremely insecure. *************************** 2. row ***************************   Level: Note    Code: 1760 Message: Storing MySQL user name or password information in the master info repository is not secure and is therefore not recommended. Please consider using the USER and PASSWORD connection options for START SLAVE; see the 'START SLAVE Syntax' in the MySQL Manual for more information. 2 rows in set (0.00 sec) 查看slave状态信息 mysql> SHOW SLAVE STATUS\G *************************** 1. row ***************************                Slave_IO_State:                   Master_Host: master.network.com                   Master_User: repuser                   Master_Port: 3306                 Connect_Retry: 60               Master_Log_File:           Read_Master_Log_Pos: 4                Relay_Log_File: relay-log.000001                 Relay_Log_Pos: 4         Relay_Master_Log_File:              Slave_IO_Running: No             Slave_SQL_Running: No               Replicate_Do_DB: mydb           Replicate_Ignore_DB:            Replicate_Do_Table:        Replicate_Ignore_Table:       Replicate_Wild_Do_Table:   Replicate_Wild_Ignore_Table:                    Last_Errno: 0                    Last_Error:                  Skip_Counter: 0           Exec_Master_Log_Pos: 0               Relay_Log_Space: 151               Until_Condition: None                Until_Log_File:                 Until_Log_Pos: 0            Master_SSL_Allowed: No            Master_SSL_CA_File:            Master_SSL_CA_Path:               Master_SSL_Cert:             Master_SSL_Cipher:                Master_SSL_Key:         Seconds_Behind_Master: NULL Master_SSL_Verify_Server_Cert: No                 Last_IO_Errno: 0                 Last_IO_Error:                Last_SQL_Errno: 0                Last_SQL_Error:   Replicate_Ignore_Server_Ids:              Master_Server_Id: 0                   Master_UUID:              Master_Info_File: mysql.slave_master_info                     SQL_Delay: 0           SQL_Remaining_Delay: NULL       Slave_SQL_Running_State:            Master_Retry_Count: 86400                   Master_Bind:       Last_IO_Error_Timestamp:      Last_SQL_Error_Timestamp:                Master_SSL_Crl:            Master_SSL_Crlpath:            Retrieved_Gtid_Set:             Executed_Gtid_Set:                 Auto_Position: 1 1 row in set (0.00 sec) 启动slave线程 mysql> START SLAVE; Query OK, 0 rows affected, 1 warning (0.01 sec) mysql> SHOW SLAVE STATUS\G *************************** 1. row ***************************                Slave_IO_State: Waiting for master to send event                   Master_Host: master.network.com                   Master_User: repuser                   Master_Port: 3306                 Connect_Retry: 60               Master_Log_File: master-bin.000003           Read_Master_Log_Pos: 536                Relay_Log_File: relay-log.000002                 Relay_Log_Pos: 748         Relay_Master_Log_File: master-bin.000003              Slave_IO_Running: Yes             Slave_SQL_Running: Yes               Replicate_Do_DB: mydb           Replicate_Ignore_DB:            Replicate_Do_Table:        Replicate_Ignore_Table:       Replicate_Wild_Do_Table:   Replicate_Wild_Ignore_Table:                    Last_Errno: 0                    Last_Error:                  Skip_Counter: 0           Exec_Master_Log_Pos: 536               Relay_Log_Space: 946               Until_Condition: None                Until_Log_File:                 Until_Log_Pos: 0            Master_SSL_Allowed: No            Master_SSL_CA_File:            Master_SSL_CA_Path:               Master_SSL_Cert:             Master_SSL_Cipher:                Master_SSL_Key:         Seconds_Behind_Master: 0 Master_SSL_Verify_Server_Cert: No                 Last_IO_Errno: 0                 Last_IO_Error:                Last_SQL_Errno: 0                Last_SQL_Error:   Replicate_Ignore_Server_Ids:              Master_Server_Id: 1                   Master_UUID: dfc512d8-bc12-11e5-97ec-000c29fe8238              Master_Info_File: mysql.slave_master_info                     SQL_Delay: 0           SQL_Remaining_Delay: NULL       Slave_SQL_Running_State: Slave has read all relay log; waiting for the slave I/O thread to update it            Master_Retry_Count: 86400                   Master_Bind:       Last_IO_Error_Timestamp:      Last_SQL_Error_Timestamp:                Master_SSL_Crl:            Master_SSL_Crlpath:            Retrieved_Gtid_Set: dfc512d8-bc12-11e5-97ec-000c29fe8238:1-2             Executed_Gtid_Set: dfc512d8-bc12-11e5-97ec-000c29fe8238:1-2                 Auto_Position: 1 1 row in set (0.01 sec)

5、测试复制功能

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37

在master上创建一个测试库 mysql> CREATE DATABASE mydb; Query OK, 1 row affected (0.08 sec) mysql> SHOW DATABASES; +--------------------+ | Database           | +--------------------+ | information_schema | | mydb               | | mysql              | | performance_schema | | test               | +--------------------+ 5 rows in set (0.01 sec) 然后在slave上查看是否有此库 mysql> SHOW DATABASES; +--------------------+ | Database           | +--------------------+ | information_schema | | mydb               |                 # 可以看到复制功能已然实现 | mysql              | | performance_schema | | test               | +--------------------+ 5 rows in set (0.00 sec) 此时master上可以查看到slave的相关信息 mysql> SHOW SLAVE HOSTS;   +-----------+--------------+------+-----------+--------------------------------------+ | Server_id | Host         | Port | Master_id | Slave_UUID                           | +-----------+--------------+------+-----------+--------------------------------------+ |        11 | 172.16.1.105 | 3306 |         1 | ec8230c2-bc18-11e5-9813-000c296634d1 | +-----------+--------------+------+-----------+--------------------------------------+ 1 row in set (0.03 sec)
