AIX下RAC搭建系列 AIX下RAC搭建 Oracle10G（四）安装CRS
环境
节点
| 节点1
| 节点2
| 小机型号
| IBM P-series 630
| IBM P-series 630
| 主机名
| AIX203
| AIX204
| 交换机
| SAN光纤交换机
| 存储
| SAN T3存储
|
大纲流程如下： 第一部分：主机配置 一、检测系统环境 二、网络配置 三、用户和组 四、网络参数调整 五、时间同步 六、卷组
第二部分：安装hacmp并配置 七、hacmp安装并配置
第三部分：安装CRS 八、安装CRS
第四部分：安装oracle软件 九、安装oracle
第五部分：配监听、创建oracle数据库 十、建立监听 十一、dbca建库 十二、验证
****************************************续接上篇********************************************* 上篇地址
************************************************************************************************

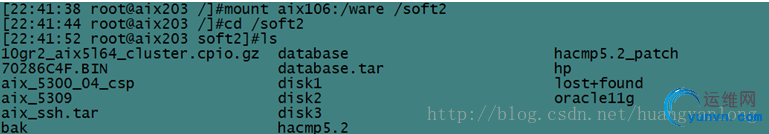

以下开始正文： 八、安装CRS1、解压crs安装软件[22:41:38 root@aix203 /]#mount aix106:/ware /soft2 [22:41:44 root@aix203 /]#cd /soft2 [22:41:52 root@aix203 soft2]#ls
[23:04:54 root@aix203 u01]#gzip -d 10gr2_aix5l64_cluster.cpio.gz //解压.gz [23:10:35 root@aix203 u01]#cpio -icdmv <10gr2_aix5l64_cluster.cpio //解压.cpio //解压后会出现Disk1目录，即解压所得 [23:12:15 root@aix203 u01]#ls
【补充】：unix常见压缩包解压
压缩包格式
| 解压指令
| .gz
| gzip -d *.gz 或 gunzip *.gz
| .bz2
| bzip2 -d *.bz2 或bunzip *.bz2
| .zip
| unzip *.zip
| .Z
| uncompress
| .cpio
| cpio -icdmv<*.cpio
|

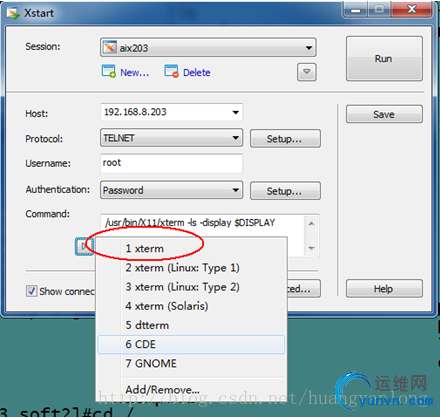

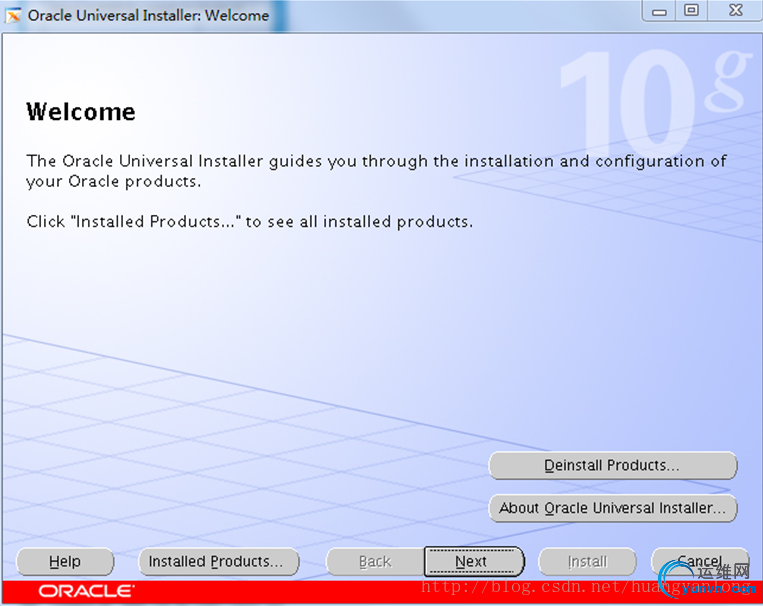

2、X-manager执行安装程序XMANAGER以oracle用户连接上来在上面解压的Disk1下运行.runInstaller安装 运行XMANAGER

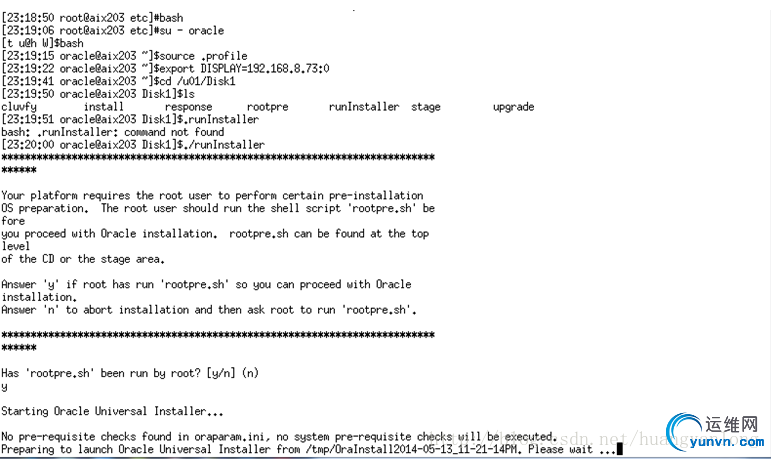

X-manager上执行如下操作： #bash #su - oracle $bash $source .profile $export DISPLAY=192.168.8.73:0 $cd /u01/Disk1 $ls $./runInstaller 参考图例如下：
【补充】：执行.runInstaller后报Main thread错误
$export DISPLAY=192.168.8.103:0(运行xmanager的主机ip)

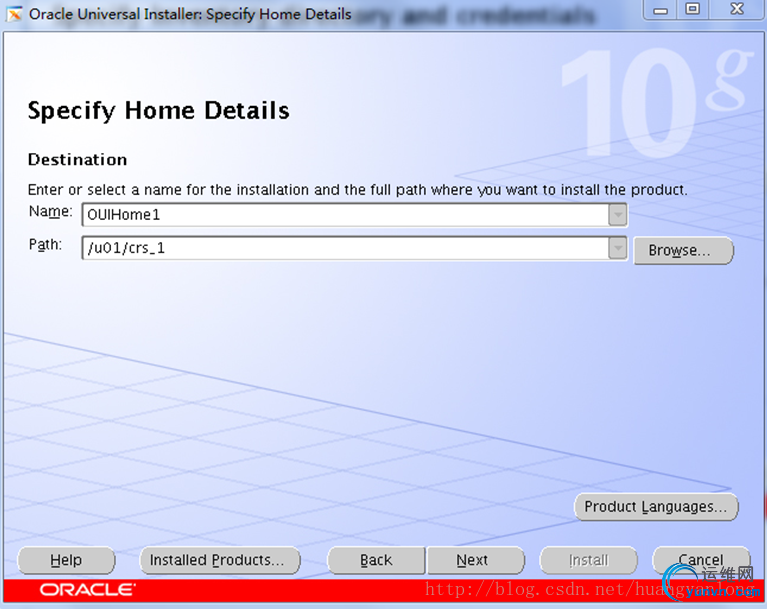

注意选择path: /u01/crs_1 （自己创建的目录）
【补充】：无法找到节点
解决：重新配置hacmp，重设之后服务启动也变正常

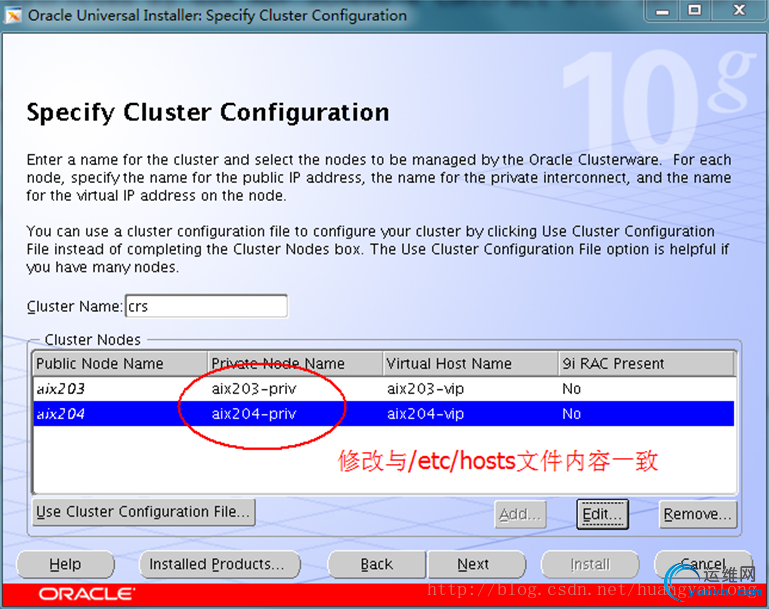

注意修改private node name 和/etc/hosts设置保持一致
指定集群的ocr、vote_disk盘注册： ocr 使用/dev/rrac_ocr 裸设备 votedisk 使用 /dev/rrac_vote 裸设备 [00:30:23 root@aix203 u01]#ls -l /dev |grep ocr //建逻辑卷时指定好了
选择外部冗余（External Redundancy）
[00:37:12 root@aix203 u01]#ls -l /dev |grep vote
点击“安装”弹出如下界面，安装大约需要10分钟左右。

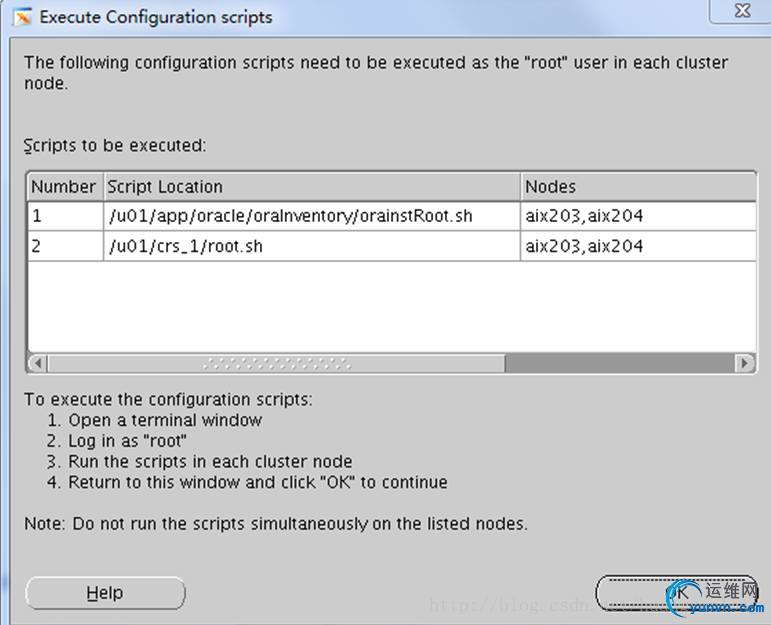

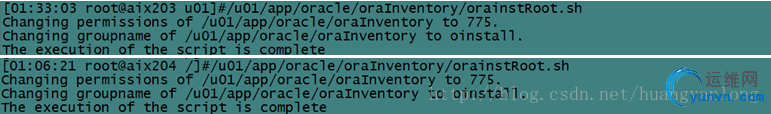

[01:33:03 root@aix203 u01]#/u01/app/oracle/oraInventory/orainstRoot.sh [01:06:21 root@aix204 /]#/u01/app/oracle/oraInventory/orainstRoot.sh
【补充】：第二个脚本运行时报错
在第一个节点上运行第二个脚本时报错，需要将未安装成功的脚本卸载掉，排除问题后再次运行第二个脚本。 第一步：卸载未安装成功的脚本： #cd /u01/crs_1/install #ls
#shrootdeinstall.sh //执行上图标示的两个脚本 #sh rootdelete.sh 第二步：排除错误： 多数情况下，由于跑完第一个脚本后，文件权限被更改了，所以运行第二个脚本会报错，此时手工将文件权限改回oracle下，然后再执行脚本

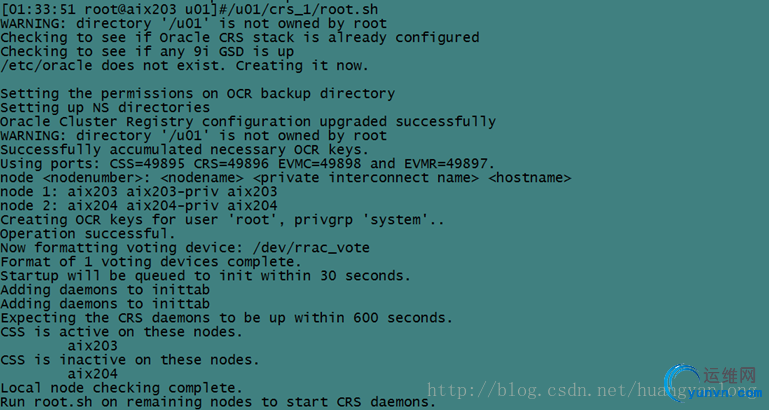

[01:33:51 root@aix203 u01]#/u01/crs_1/root.sh //第一个节点运行第二个脚本
[02:33:15 root@aix204 u01]#/u01/crs_1/root.sh //第二个节点运行第二个脚本 报错，如下：

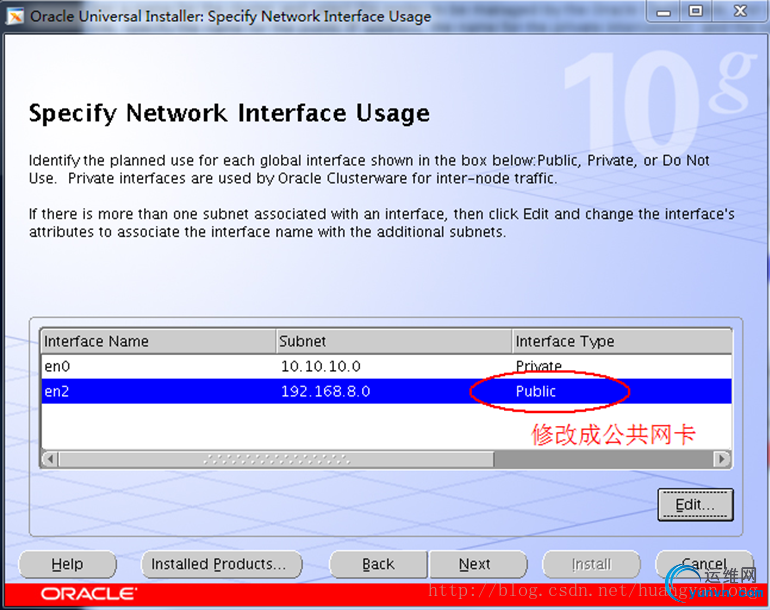

//root用户节点2跑脚本报错2 en0 is not public：以root用户xmanger登录节点2运行脚本 /u01/crs_1/bin/vipca激活vip地址

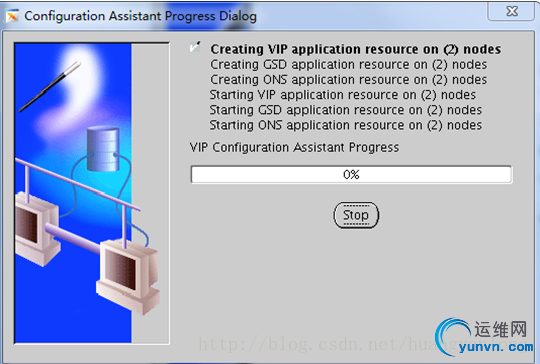

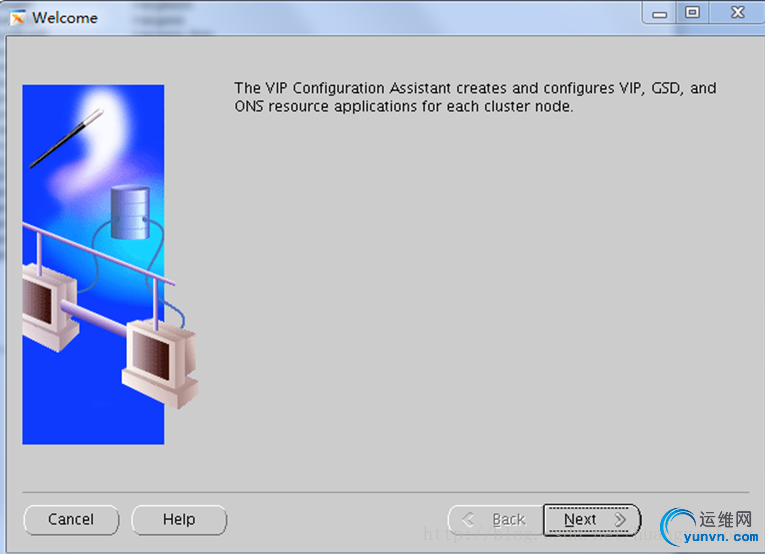

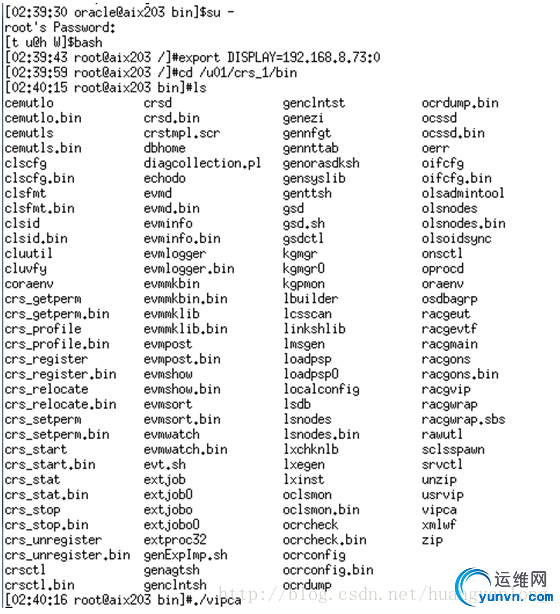

3、激活vip地址X-manager下执行操作： #bash #export DISPLAY=192.168.8.73:0 #cd /u01/crs_1/bin #ls #./vipca

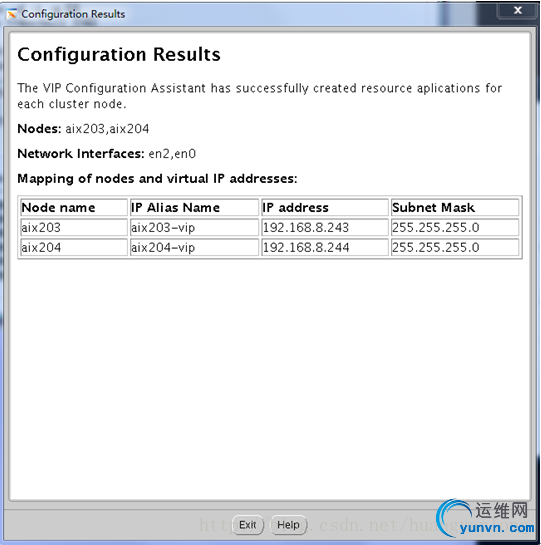

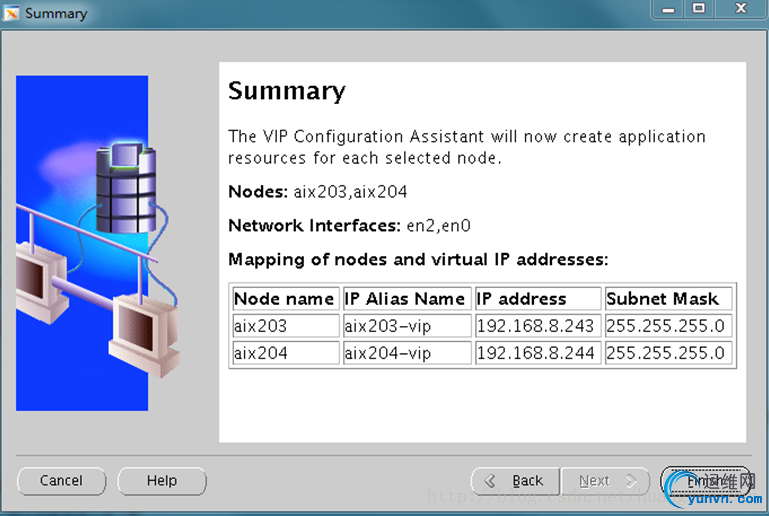

输入vip 名称后会自动读入/etc/hosts信息，会把其余位置补全，如下：
4、完成安装

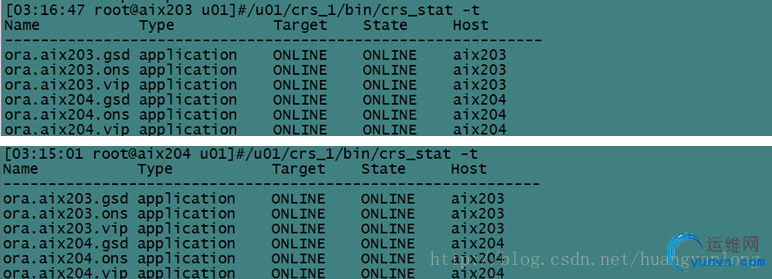

[03:16:47 root@aix203 u01]#/u01/crs_1/bin/crs_stat -t [03:15:01 root@aix204 u01]#/u01/crs_1/bin/crs_stat -t

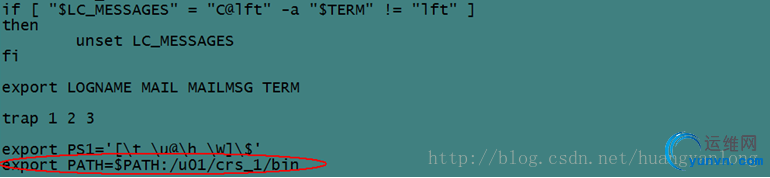

5、校验（手工）//运行脚本之后，正常应点击ok结束，之后会自动执行校验，但由于此文报错后人工干预，完成crs安装后，需要手工进行校验操作。 【补充】：修改/etc/profile
[03:50:00root@aix203 soft2]#source /etc/profile [03:50:12root@aix203 soft2]#crs_stat -t

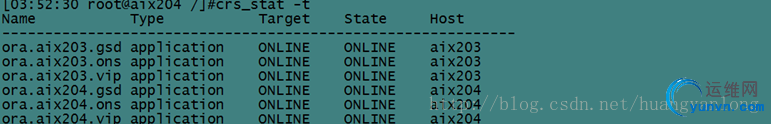

[03:51:54root@aix204 /]#source /etc/profile [03:52:30root@aix204 /]#crs_stat -t
【补充】：安装uzip工具

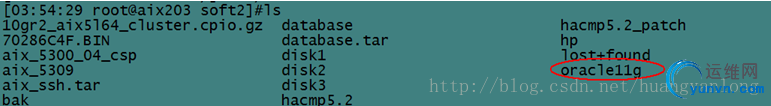

[03:54:06root@aix203 /]#cd /soft2 [03:54:29root@aix203 soft2]#ls
[03:54:30root@aix203 soft2]#cd oracle11g [03:54:34root@aix203 oracle11g]#ls
[03:54:35 root@aix203oracle11g]#rpm -ivh unzip-5.51-1.aix5.1.ppc.rpm

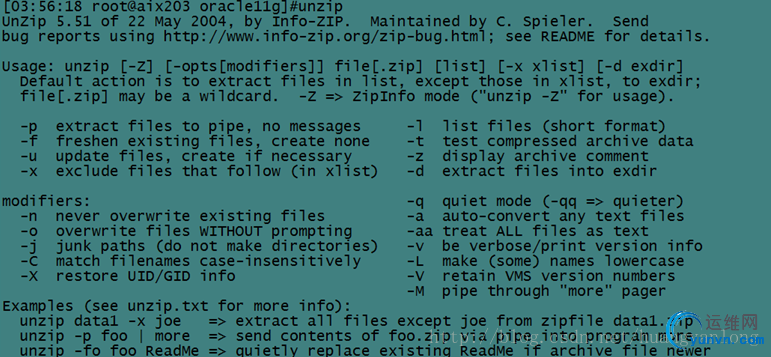

#unzip //查看命令提示，代表已经成功安装unzip工具
补充完毕
手工完成校验，如下： [03:37:45 root@aix203 /]#cd /u01/Disk1 [03:37:45 root@aix203 u01]#ls [03:37:45 root@aix203 u01]#cd cluvfy [03:37:45 root@aix203 cluvfy]#ls
[03:37:45 root@aix203 cluvfy]#/u01/crs_1/bin/unzip jrepack.zip [03:37:45 root@aix203 cluvfy]#ls
[03:42:35 root@aix203 cluvfy]#/u01/crs_1/bin/unzip cvupack.zip [10:40:37 root@aix203 cluvfy]#./runcluvfy.sh stage -pre crsinst -n aix203,aix204 -verbose Performing pre-checks for cluster services setup Checking node reachability... Check: Node reachability from node"aix203" Destination Node Reachable? ------------------------------------ ------------------------ aix203 yes aix204 yes Result: Node reachability check passed from node"aix203". Checking user equivalence... Check: User equivalence for user "root" NodeName Comment ------------------------------------ ------------------------ aix204 passed aix203 passed Result: User equivalence check passed for user"root". Checking administrative privileges... Check: Existence of user "root" NodeName User Exists Comment ------------ ------------------------ ------------------------ aix204 yes passed aix203 yes passed Result: User existence check passed for"root". Check: Existence of group "oinstall" NodeName Status Group ID ------------ ------------------------ ------------------------ aix204 exists 501 aix203 exists 501 Result: Group existence check passed for"oinstall". Check: Membership of user "root" ingroup "oinstall" [as Primary] NodeName User Exists Group Exists User in Group Primary Comment ---------------- ------------ ------------ ------------ ------------ ------------ aix204 yes yes no N/A failed aix203 yes yes no N/A failed Result: Membership check for user"root" in group "oinstall" [as Primary] failed. Administrative privileges check failed. Checking node connectivity... Interface information for node "aix204" InterfaceName IP Address Subnet ------------------------------ ------------------------------ ---------------- en0 10.10.10.204 10.10.10.0 en2 192.168.8.204 192.168.8.0 en2 192.168.8.204 192.168.8.0 Interface information for node "aix203" InterfaceName IP Address Subnet ------------------------------ ------------------------------ ---------------- en0 10.10.10.203 10.10.10.0 en2 192.168.8.203 192.168.8.0 en2 192.168.8.203 192.168.8.0 Check: Node connectivity of subnet"10.10.10.0" Source Destination Connected? ------------------------------ ------------------------------ ---------------- aix204:en0 aix203:en0 yes Result: Node connectivity check passed for subnet"10.10.10.0" with node(s) aix204,aix203. Check: Node connectivity of subnet"192.168.8.0" Source Destination Connected? ------------------------------ ------------------------------ ---------------- aix204:en2 aix204:en2 yes aix204:en2 aix203:en2 yes aix204:en2 aix203:en2 yes aix204:en2 aix203:en2 yes aix204:en2 aix203:en2 yes aix203:en2 aix203:en2 yes Result: Node connectivity check passed for subnet"192.168.8.0" with node(s) aix204,aix203. Suitable interfaces for the private interconnecton subnet "10.10.10.0": aix204 en0:10.10.10.204 aix203 en0:10.10.10.203 Suitable interfaces for the private interconnecton subnet "192.168.8.0": aix204 en2:192.168.8.204 en2:192.168.8.204 aix203 en2:192.168.8.203 en2:192.168.8.203 ERROR: Could not find a suitable set of interfaces forVIPs. Result: Node connectivity check failed. Checking system requirements for 'crs'... Check: Kernel version NodeName Available Required Comment ------------ ------------------------ ------------------------ ---------- aix204 AIX 5.3 AIX 5.2 passed aix203 AIX 5.3 AIX 5.2 passed Result: Kernel version check passed. Check: System architecture NodeName Available Required Comment ------------ ------------------------ ------------------------ ---------- aix204 powerpc powerpc passed aix203 powerpc powerpc passed Result: System architecture check passed. Check: Total memory NodeName Available Required Comment ------------ ------------------------ ------------------------ ---------- aix204 2GB (2097152KB) 512MB (524288KB) passed aix203 2GB (2097152KB) 512MB (524288KB) passed Result: Total memory check passed. Check: Swap space NodeName Available Required Comment ------------ ------------------------ ------------------------ ---------- aix204 3968GB(4160749568KB) 1GB (1048576KB) passed aix203 2560GB(2684354560KB) 1GB (1048576KB) passed Result: Swap space check passed. Check: Free disk space in "/tmp" dir NodeName Available Required Comment ------------ ------------------------ ------------------------ ---------- aix204 782.45MB (801224KB) 400MB (409600KB) passed aix203 779.9MB(798620KB) 400MB (409600KB) passed Result: Free disk space check passed. Check: Package existence for"vacpp.cmp.core:7.0.0.2" Node Name Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"vacpp.cmp.core:7.0.0.2". Check: Operating system patch for "IY65361" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 unknown IY65361 failed aix203 unknown IY65361 failed Result: Operating system patch check failed for"IY65361 ". Check: Package existence for"vac.C:7.0.0.2" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"vac.C:7.0.0.2". Check: Package existence for"xlC.aix50.rte:7.0.0.4" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 xlC.aix50.rte:9.0.0.1 passed aix203 xlC.aix50.rte:9.0.0.1 passed Result: Package existence check passed for"xlC.aix50.rte:7.0.0.4". Check: Package existence for"xlC.rte:7.0.0.1" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 xlC.rte:9.0.0.1 passed aix203 xlC.rte:9.0.0.1 passed Result: Package existence check passed for"xlC.rte:7.0.0.1". Check: Package existence for"gpfs.base:2.3.0.3" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"gpfs.base:2.3.0.3". Check: Operating system patch for"IY63969" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 unknown IY63969 failed aix203 unknown IY63969 failed Result: Operating system patch check failed for"IY63969". Check: Operating system patch for"IY69911" Node Name Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 unknown IY69911 failed aix203 unknown IY69911 failed Result: Operating system patch check failed for"IY69911". Check: Operating system patch for"IY70276" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 unknown IY70276 failed aix203 unknown IY70276 failed Result: Operating system patch check failed for"IY70276". Check: Package existence for"cluster.license:5.2.0.0" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 cluster.license:5.2.0.0 passed aix203 cluster.license:5.2.0.0 passed Result: Package existence check passed for"cluster.license:5.2.0.0". Check: Operating system patch for"IY60759" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 IY60759:cluster.es.server.utilsIY60759:cluster.man.en_US.es.data IY60759 passed aix203 IY60759:cluster.es.server.utilsIY60759:cluster.man.en_US.es.data IY60759 passed Result: Operating system patch check passed for"IY60759". Check: Operating system patch for"IY61034" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 IY61034:bos.mpIY61034:bos.mp64 IY61034 passed aix203 IY61034:bos.mpIY61034:bos.mp64 IY61034 passed Result: Operating system patch check passed for"IY61034". Check: Operating system patch for"IY61770" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 unknown IY61770 failed aix203 unknown IY61770 failed Result: Operating system patch check failed for"IY61770". Check: Operating system patch for"IY62191" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 IY62191:bos.adt.profIY62191:bos.rte.libpthreads IY62191 passed aix203 IY62191:bos.adt.profIY62191:bos.rte.libpthreads IY62191 passed Result: Operating system patch check passed for"IY62191". Check: Package existence for"ElectricFence-2.2.2-1:2.2.2" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"ElectricFence-2.2.2-1:2.2.2". Check: Package existence for"xlfrte:9.1" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 xlfrte:11.1.0.0 failed aix203 xlfrte:11.1.0.0 failed Result: Package existence check failed for"xlfrte:9.1". Check: Package existence for"gdb-6.0-1:6.0" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"gdb-6.0-1:6.0". Check: Package existence for"make-3.80-1:3.80" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"make-3.80-1:3.80". Check: Package existence for"freeware.gnu.tar.rte:1.13.0.0" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"freeware.gnu.tar.rte:1.13.0.0". Check: Package existence for"Java14_64.sdk:1.4.2.1" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"Java14_64.sdk:1.4.2.1". Check: Package existence for"Java131.rte.bin:1.3.1.16" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"Java131.rte.bin:1.3.1.16". Check: Package existence for"Java14.sdk:1.4.2.2" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 Java14.sdk:1.4.2.200 passed aix203 Java14.sdk:1.4.2.200 passed Result: Package existence check passed for"Java14.sdk:1.4.2.2". Check: Operating system patch for"IY65305" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 unknown IY65305 failed aix203 unknown IY65305 failed Result: Operating system patch check failed for"IY65305". Check: Operating system patch for"IY58350" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 unknown IY58350 failed aix203 unknown IY58350 failed Result: Operating system patch check failed for"IY58350". Check: Operating system patch for"IY63533" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 unknown IY63533 failed aix203 unknown IY63533 failed Result: Operating system patch check failed for"IY63533". Check: Package existence for"mqm.server.rte:5.3" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"mqm.server.rte:5.3". Check: Package existence for"mqm.client.rte:5.3" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"mqm.client.rte:5.3". Check: Package existence for"sna.rte:6.1.0.4" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"sna.rte:6.1.0.4". Check: Package existence for"bos.net.tcp.server" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 bos.net.tcp.server:5.3.8.0 passed aix203 bos.net.tcp.server:5.3.8.0 passed Result: Package existence check passed for"bos.net.tcp.server". Check: Operating system patch for"IY44599" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 unknown IY44599 failed aix203 unknown IY44599 failed Result: Operating system patch check failed for"IY44599". Check: Operating system patch for"IY60930" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 IY60930:bos.mpIY60930:bos.mp64 IY60930 passed aix203 IY60930:bos.mpIY60930:bos.mp64 IY60930 passed Result: Operating system patch check passed for"IY60930". Check: Operating system patch for"IY58143" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 IY58143:X11.Dt.libIY58143:X11.Dt.rteIY58143:X11.base.rteIY58143:bos.acctIY58143:bos.adt.includeIY58143:bos.adt.libmIY58143:bos.adt.profIY58143:bos.alt_disk_install.rteIY58143:bos.cifs_fs.rteIY58143:bos.diag.comIY58143:bos.mp64IY58143:bos.mpIY58143:bos.net.ewlm.rteIY58143:bos.net.ipsec.keymgtIY58143:bos.net.ipsec.rteIY58143:bos.net.mobip6.rteIY58143:bos.net.nfs.adtIY58143:bos.net.nfs.clientIY58143:bos.net.nfs.serverIY58143:bos.net.pppIY58143:bos.net.sctpIY58143:bos.net.tcp.clientIY58143:bos.net.tcp.serverIY58143:bos.net.tcp.smitIY58143:bos.perf.libperfstatIY58143:bos.perf.perfstatIY58143:bos.perf.toolsIY58143:bos.rte.archiveIY58143:bos.rte.bind_cmdsIY58143:bos.rte.bootIY58143:bos.rte.controlIY58143:bos.rte.filesystemIY58143:bos.rte.installIY58143:bos.rte.libcIY58143:bos.rte.lvmIY58143:bos.rte.manIY58143:bos.rte.methodsIY58143:bos.rte.securityIY58143:bos.rte.serv_aidIY58143:bos.sysmgt.nim.clientIY58143:bos.sysmgt.quotaIY58143:bos.sysmgt.serv_aidIY58143:bos.sysmgt.sysbrIY58143:devices.chrp.base.rteIY58143:devices.chrp.pci.rteIY58143:devices.chrp.vdevice.rteIY58143:devices.common.IBM.atm.rteIY58143:devices.common.IBM.ethernet.rteIY58143:devices.common.IBM.fc.rteIY58143:devices.common.IBM.fda.diagIY58143:devices.common.IBM.mpio.rteIY58143:devices.fcp.disk.rteIY58143:devices.pci.00100f00.rteIY58143:devices.pci.14100401.diagIY58143:devices.pci.14103302.rteIY58143:devices.pci.14106602.rteIY58143:devices.pci.14106902.rteIY58143:devices.pci.14107802.rteIY58143:devices.pci.1410ff01.rteIY58143:devices.pci.22106474.rteIY58143:devices.pci.33103500.rteIY58143:devices.pci.4f111100.comIY58143:devices.pci.77101223.comIY58143:devices.pci.99172704.rteIY58143:devices.pci.c1110358.rteIY58143:devices.pci.df1000f7.comIY58143:devices.pci.df1000f7.diagIY58143:devices.pci.df1000fa.rteIY58143:devices.pci.e414a816.rteIY58143:devices.scsi.disk.rteIY58143:devices.vdevice.IBM.l-lan.rteIY58143:devices.vdevice.IBM.v-scsi.rteIY58143:devices.vdevice.hvterm1.rteIY58143:sysmgt.websm.appsIY58143:sysmgt.websm.frameworkIY58143:sysmgt.websm.rteIY58143:sysmgt.websm.webaccess IY58143 passed aix203 IY58143:X11.Dt.libIY58143:X11.base.rteIY58143:bos.acctIY58143:bos.adt.includeIY58143:bos.adt.libmIY58143:bos.adt.profIY58143:bos.alt_disk_install.rteIY58143:bos.cifs_fs.rteIY58143:bos.diag.comIY58143:bos.mp64IY58143:bos.mpIY58143:bos.net.ewlm.rteIY58143:bos.net.ipsec.keymgtIY58143:bos.net.ipsec.rteIY58143:bos.net.mobip6.rteIY58143:bos.net.nfs.adtIY58143:bos.net.nfs.clientIY58143:bos.net.nfs.serverIY58143:bos.net.pppIY58143:bos.net.sctpIY58143:bos.net.tcp.clientIY58143:bos.net.tcp.serverIY58143:bos.net.tcp.smitIY58143:bos.perf.libperfstatIY58143:bos.perf.perfstatIY58143:bos.perf.toolsIY58143:bos.rte.archiveIY58143:bos.rte.bind_cmdsIY58143:bos.rte.bootIY58143:bos.rte.controlIY58143:bos.rte.filesystemIY58143:bos.rte.installIY58143:bos.rte.libcIY58143:bos.rte.lvmIY58143:bos.rte.manIY58143:bos.rte.methodsIY58143:bos.rte.securityIY58143:bos.rte.serv_aidIY58143:bos.sysmgt.nim.clientIY58143:bos.sysmgt.quotaIY58143:bos.sysmgt.serv_aidIY58143:bos.sysmgt.sysbrIY58143:devices.chrp.base.rteIY58143:devices.chrp.pci.rteIY58143:devices.chrp.vdevice.rteIY58143:devices.common.IBM.atm.rteIY58143:devices.common.IBM.ethernet.rteIY58143:devices.common.IBM.fc.rteIY58143:devices.common.IBM.fda.diagIY58143:devices.common.IBM.mpio.rteIY58143:devices.fcp.disk.rteIY58143:devices.pci.00100f00.rteIY58143:devices.pci.14100401.diagIY58143:devices.pci.14103302.rteIY58143:devices.pci.14106602.rteIY58143:devices.pci.14106902.rteIY58143:devices.pci.14107802.rteIY58143:devices.pci.1410ff01.rteIY58143:devices.pci.22106474.rteIY58143:devices.pci.33103500.rteIY58143:devices.pci.4f111100.comIY58143:devices.pci.77101223.comIY58143:devices.pci.99172704.rteIY58143:devices.pci.c1110358.rteIY58143:devices.pci.df1000f7.comIY58143:devices.pci.df1000f7.diagIY58143:devices.pci.df1000fa.rteIY58143:devices.pci.e414a816.rteIY58143:devices.scsi.disk.rteIY58143:devices.vdevice.IBM.l-lan.rteIY58143:devices.vdevice.IBM.v-scsi.rteIY58143:devices.vdevice.hvterm1.rteIY58143:sysmgt.websm.appsIY58143:sysmgt.websm.frameworkIY58143:sysmgt.websm.rteIY58143:sysmgt.websm.webaccess IY58143 passed Result: Operating system patch check passed for"IY58143". Check: Operating system patch for"IY66513" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 IY66513:bos.mpIY66513:bos.mp64 IY66513 passed aix203 IY66513:bos.mpIY66513:bos.mp64 IY66513 passed Result: Operating system patch check passed for"IY66513". Check: Operating system patch for"IY70159" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 IY70159:bos.mpIY70159:bos.mp64 IY70159 passed aix203 IY70159:bos.mpIY70159:bos.mp64 IY70159 passed Result: Operating system patch check passed for"IY70159". Check: Operating system patch for"IY59386" NodeName Applied Required Comment ------------ ------------------------ ------------------------ ---------- aix204 IY59386:bos.rte.bind_cmds IY59386 passed aix203 IY59386:bos.rte.bind_cmds IY59386 passed Result: Operating system patch check passed for"IY59386". Check: Package existence for"bos.adt.base" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 bos.adt.base:5.3.8.0 passed aix203 bos.adt.base:5.3.8.0 passed Result: Package existence check passed for"bos.adt.base". Check: Package existence for"bos.adt.lib" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 bos.adt.lib:5.3.8.0 passed aix203 bos.adt.lib:5.3.8.0 passed Result: Package existence check passed for"bos.adt.lib". Check: Package existence for"bos.adt.libm" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 bos.adt.libm:5.3.8.0 passed aix203 bos.adt.libm:5.3.8.0 passed Result: Package existence check passed for"bos.adt.libm". Check: Package existence for"bos.perf.libperfstat" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 bos.perf.libperfstat:5.3.8.0 passed aix203 bos.perf.libperfstat:5.3.8.0 passed Result: Package existence check passed for"bos.perf.libperfstat". Check: Package existence for "bos.perf.perfstat" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 bos.perf.perfstat:5.3.8.1 passed aix203 bos.perf.perfstat:5.3.8.1 passed Result: Package existence check passed for"bos.perf.perfstat". Check: Package existence for"bos.perf.proctools" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 bos.perf.proctools:5.3.8.0 passed aix203 bos.perf.proctools:5.3.8.0 passed Result: Package existence check passed for"bos.perf.proctools". Check: Package existence for"rsct.basic.rte" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 rsct.basic.rte:2.4.9.0 passed aix203 rsct.basic.rte:2.4.9.0 passed Result: Package existence check passed for "rsct.basic.rte". Check: Package existence for"perl.rte:5.0005" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 perl.rte:5.8.2.80 passed aix203 perl.rte:5.8.2.80 passed Result: Package existence check passed for"perl.rte:5.0005". Check: Package existence for"perl.rte:5.6" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 perl.rte:5.8.2.80 passed aix203 perl.rte:5.8.2.80 passed Result: Package existence check passed for"perl.rte:5.6". Check: Package existence for"perl.rte:5.8" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 perl.rte:5.8.2.80 passed aix203 perl.rte:5.8.2.80 passed Result: Package existence check passed for"perl.rte:5.8". Check: Package existence for"python-2.2-4:2.2" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"python-2.2-4:2.2". Check: Package existence for"freeware.zip.rte:2.3" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"freeware.zip.rte:2.3". Check: Package existence for"freeware.gcc.rte:3.3.2.0" NodeName Status Comment ------------------------------ ------------------------------ ---------------- aix204 missing failed aix203 missing failed Result: Package existence check failed for"freeware.gcc.rte:3.3.2.0". Check: Group existence for "dba" NodeName Status Comment ------------ ------------------------ ------------------------ aix204 exists passed aix203 exists passed Result: Group existence check passed for"dba". Check: User existence for "nobody" NodeName Status Comment ------------ ------------------------ ------------------------ aix204 exists passed aix203 exists passed Result: User existence check passed for"nobody". System requirement failed for 'crs' Pre-check for cluster services setup wasunsuccessful on all the nodes.
//虽然最终显示unsuccessful但不影响后续安装，暂且跳过 //正常情况，校验后，应显示successful
****************************************未完待续*********************************************
***********************************************声明************************************************ 原创作品，出自 “深蓝的blog” 博客，欢迎转载，转载时请务必注明出处（http://blog.iyunv.com/huangyanlong）。 表述有错误之处，请您留言，不胜感激。 提醒：点击目录，更有助于您的查看。 *****************************************************************************************************
|
