Hadoop源码分析-Context

xiaowei8782088

　　学编程第一个肯定是hello world，Hadoop也不例外，它的hello world就是Wordcount，单词统计例子




1 package org.apache.hadoop.examples;
2
3 import java.io.IOException;
4 import java.util.StringTokenizer;
5
6 import org.apache.hadoop.conf.Configuration;
7 import org.apache.hadoop.fs.Path;
8 import org.apache.hadoop.io.IntWritable;
9 import org.apache.hadoop.io.Text;
10 import org.apache.hadoop.mapreduce.Job;
11 import org.apache.hadoop.mapreduce.Mapper;
12 import org.apache.hadoop.mapreduce.Reducer;
13 import org.apache.hadoop.mapreduce.lib.input.FileInputFormat;
14 import org.apache.hadoop.mapreduce.lib.output.FileOutputFormat;
15 import org.apache.hadoop.util.GenericOptionsParser;
16
17 public class WordCount {
18
19   public static class TokenizerMapper
20        extends Mapper<Object, Text, Text, IntWritable>{
21
22     private final static IntWritable one = new IntWritable(1);
23     private Text word = new Text();
24
25     public void map(Object key, Text value, Context context
26                     ) throws IOException, InterruptedException {
27       StringTokenizer itr = new StringTokenizer(value.toString());
28       while (itr.hasMoreTokens()) {
29         word.set(itr.nextToken());
30         context.write(word, one);
31       }
32     }
33   }
34
35   public static class IntSumReducer
36        extends Reducer<Text,IntWritable,Text,IntWritable> {
37     private IntWritable result = new IntWritable();
38
39     public void reduce(Text key, Iterable<IntWritable> values,
40                        Context context
41                        ) throws IOException, InterruptedException {
42       int sum = 0;
43       for (IntWritable val : values) {
44         sum += val.get();
45       }
46       result.set(sum);
47       context.write(key, result);
48     }
49   }
50
51   public static void main(String[] args) throws Exception {
52     Configuration conf = new Configuration();
53     String[] otherArgs = new GenericOptionsParser(conf, args).getRemainingArgs();
54     if (otherArgs.length != 2) {
55       System.err.println("Usage: wordcount <in> <out>");
56       System.exit(2);
57     }
58     Job job = new Job(conf, "word count");
59     job.setJarByClass(WordCount.class);
60     job.setMapperClass(TokenizerMapper.class);
61     job.setCombinerClass(IntSumReducer.class);
62     job.setReducerClass(IntSumReducer.class);
63     job.setOutputKeyClass(Text.class);
64     job.setOutputValueClass(IntWritable.class);
65     FileInputFormat.addInputPath(job, new Path(otherArgs[0]));
66     FileOutputFormat.setOutputPath(job, new Path(otherArgs[1]));
67     System.exit(job.waitForCompletion(true) ? 0 : 1);
68   }
69 }





　　在Mapper中的map、以及Reducer中的reduce都有一个Context的类型



1 public void map(Object key, Text value, Context context)
2                 throws OException,InterruptedException{
3     StringTokenizer itr = new StringTokenizer(value.toString());
4     while (itr.hasMoreTokens()) {
5         word.set(itr.nextToken());
6         context.write(word, one);
7     }
8 }
9
10 public void reduce(Text key, Iterable<IntWritable> values,Context context)
11                    throws IOException, InterruptedException {
12     int sum = 0;
13     for (IntWritable val : values) {
14         sum += val.get();
15     }
16     result.set(sum);
17     context.write(key, result);
18 }



　　这个Context究竟有何作用呢，按照翻译，它就是一个“上下文”，再由map中的

context.write(word, one);

　　以及reduce中的

context.write(key, result);

　　可以了解到，context应该是用来传递数据以及其他运行状态信息，map中的key、value写入context，让它传递给Reducer进行reduce，而reduce进行处理之后数据继续写入context，继续交给Hadoop写入hdfs系统。
　　那么Context究竟是怎样的呢。看一下它的继承实现结构。虽然Mapper与Reducer中都有一个Context类，但是它们并不是完全一样的。看一下Mapper与Reducer的源码。




1 public class Mapper<KEYIN, VALUEIN, KEYOUT, VALUEOUT> {
2
3   public class Context
4     extends MapContext<KEYIN,VALUEIN,KEYOUT,VALUEOUT> {
5     public Context(Configuration conf, TaskAttemptID taskid,
6                    RecordReader<KEYIN,VALUEIN> reader,
7                    RecordWriter<KEYOUT,VALUEOUT> writer,
8                    OutputCommitter committer,
9                    StatusReporter reporter,
10                    InputSplit split) throws IOException, InterruptedException {
11       super(conf, taskid, reader, writer, committer, reporter, split);
12     }
13   }
14
15   /**
16    * Called once at the beginning of the task.
17    */
18   protected void setup(Context context
19                        ) throws IOException, InterruptedException {
20     // NOTHING
21   }
22
23   /**
24    * Called once for each key/value pair in the input split. Most applications
25    * should override this, but the default is the identity function.
26    */
27   @SuppressWarnings("unchecked")
28   protected void map(KEYIN key, VALUEIN value,
29                      Context context) throws IOException, InterruptedException {
30     context.write((KEYOUT) key, (VALUEOUT) value);
31   }
32
33   /**
34    * Called once at the end of the task.
35    */
36   protected void cleanup(Context context
37                          ) throws IOException, InterruptedException {
38     // NOTHING
39   }
40
41   /**
42    * Expert users can override this method for more complete control over the
43    * execution of the Mapper.
44    * @param context
45    * @throws IOException
46    */
47   public void run(Context context) throws IOException, InterruptedException {
48     setup(context);
49     try {
50       while (context.nextKeyValue()) {
51         map(context.getCurrentKey(), context.getCurrentValue(), context);
52       }
53     } finally {
54       cleanup(context);
55     }
56   }
57 }






Reducer

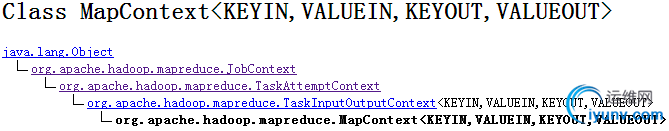

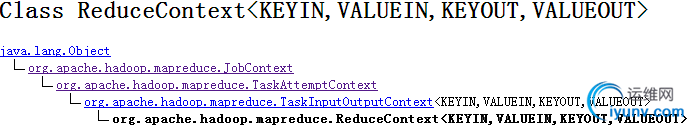

　　可以看到原来Mapper与Reducer两个Context都是内部类的，Mapper的Context是通过继承MapContext，而Reducer的Context则是通过继承ReduceContext。

Mapper.Context


Reducer.Context

　　在Mapper.Context与Reducer.Context与继承前对比，没有增加成员以及方法，也没有重写方法，单纯把MapContext、ReduceContext重新封装，所以目标就是分析MapContext与ReduceContext




  1 package org.apache.hadoop.mapreduce;
  2
  3 import java.io.IOException;
  4
  5 import org.apache.hadoop.conf.Configuration;
  6
  7
  8 public class MapContext<KEYIN,VALUEIN,KEYOUT,VALUEOUT>
  9   extends TaskInputOutputContext<KEYIN,VALUEIN,KEYOUT,VALUEOUT> {
10   private RecordReader<KEYIN,VALUEIN> reader;
11   private InputSplit split;
12
13   public MapContext(Configuration conf, TaskAttemptID taskid,
14                     RecordReader<KEYIN,VALUEIN> reader,
15                     RecordWriter<KEYOUT,VALUEOUT> writer,
16                     OutputCommitter committer,
17                     StatusReporter reporter,
18                     InputSplit split) {
19     super(conf, taskid, writer, committer, reporter);
20     this.reader = reader;
21     this.split = split;
22   }
23
24
25   public InputSplit getInputSplit() {
26     return split;
27   }
28
29   public KEYIN getCurrentKey() throws IOException, InterruptedException {
30     return reader.getCurrentKey();
31   }
32
33   public VALUEIN getCurrentValue() throws IOException, InterruptedException {
34     return reader.getCurrentValue();
35   }
36
37   public boolean nextKeyValue() throws IOException, InterruptedException {
38     return reader.nextKeyValue();
39   }
40
41 }
42
43
44 package org.apache.hadoop.mapreduce;
45
46 import java.io.IOException;
47 import java.util.Iterator;
48 import java.util.NoSuchElementException;
49
50 import org.apache.hadoop.conf.Configuration;
51 import org.apache.hadoop.io.BytesWritable;
52 import org.apache.hadoop.io.DataInputBuffer;
53 import org.apache.hadoop.io.RawComparator;
54 import org.apache.hadoop.io.serializer.Deserializer;
55 import org.apache.hadoop.io.serializer.SerializationFactory;
56 import org.apache.hadoop.mapred.RawKeyValueIterator;
57 import org.apache.hadoop.util.Progressable;
58
59
60 public class ReduceContext<KEYIN,VALUEIN,KEYOUT,VALUEOUT>
61     extends TaskInputOutputContext<KEYIN,VALUEIN,KEYOUT,VALUEOUT> {
62   private RawKeyValueIterator input;
63   private Counter inputKeyCounter;
64   private Counter inputValueCounter;
65   private RawComparator<KEYIN> comparator;
66   private KEYIN key;                                  // current key
67   private VALUEIN value;                              // current value
68   private boolean firstValue = false;                 // first value in key
69   private boolean nextKeyIsSame = false;              // more w/ this key
70   private boolean hasMore;                            // more in file
71   protected Progressable reporter;
72   private Deserializer<KEYIN> keyDeserializer;
73   private Deserializer<VALUEIN> valueDeserializer;
74   private DataInputBuffer buffer = new DataInputBuffer();
75   private BytesWritable currentRawKey = new BytesWritable();
76   private ValueIterable iterable = new ValueIterable();
77
78   public ReduceContext(Configuration conf, TaskAttemptID taskid,
79                        RawKeyValueIterator input,
80                        Counter inputKeyCounter,
81                        Counter inputValueCounter,
82                        RecordWriter<KEYOUT,VALUEOUT> output,
83                        OutputCommitter committer,
84                        StatusReporter reporter,
85                        RawComparator<KEYIN> comparator,
86                        Class<KEYIN> keyClass,
87                        Class<VALUEIN> valueClass
88                        ) throws InterruptedException, IOException{
89     super(conf, taskid, output, committer, reporter);
90     this.input = input;
91     this.inputKeyCounter = inputKeyCounter;
92     this.inputValueCounter = inputValueCounter;
93     this.comparator = comparator;
94     SerializationFactory serializationFactory = new SerializationFactory(conf);
95     this.keyDeserializer = serializationFactory.getDeserializer(keyClass);
96     this.keyDeserializer.open(buffer);
97     this.valueDeserializer = serializationFactory.getDeserializer(valueClass);
98     this.valueDeserializer.open(buffer);
99     hasMore = input.next();
100   }
101
102   /** Start processing next unique key. */
103   public boolean nextKey() throws IOException,InterruptedException {
104     while (hasMore && nextKeyIsSame) {
105       nextKeyValue();
106     }
107     if (hasMore) {
108       if (inputKeyCounter != null) {
109         inputKeyCounter.increment(1);
110       }
111       return nextKeyValue();
112     } else {
113       return false;
114     }
115   }
116
117
118   public boolean nextKeyValue() throws IOException, InterruptedException {
119     if (!hasMore) {
120       key = null;
121       value = null;
122       return false;
123     }
124     firstValue = !nextKeyIsSame;
125     DataInputBuffer next = input.getKey();
126     currentRawKey.set(next.getData(), next.getPosition(),
127                       next.getLength() - next.getPosition());
128     buffer.reset(currentRawKey.getBytes(), 0, currentRawKey.getLength());
129     key = keyDeserializer.deserialize(key);
130     next = input.getValue();
131     buffer.reset(next.getData(), next.getPosition(),
132         next.getLength() - next.getPosition());
133     value = valueDeserializer.deserialize(value);
134     hasMore = input.next();
135     if (hasMore) {
136       next = input.getKey();
137       nextKeyIsSame = comparator.compare(currentRawKey.getBytes(), 0,
138                                          currentRawKey.getLength(),
139                                          next.getData(),
140                                          next.getPosition(),
141                                          next.getLength() - next.getPosition()
142                                          ) == 0;
143     } else {
144       nextKeyIsSame = false;
145     }
146     inputValueCounter.increment(1);
147     return true;
148   }
149
150   public KEYIN getCurrentKey() {
151     return key;
152   }
153
154   public VALUEIN getCurrentValue() {
155     return value;
156   }
157
158   protected class ValueIterator implements Iterator<VALUEIN> {
159
160     public boolean hasNext() {
161       return firstValue || nextKeyIsSame;
162     }
163
164     @Override
165     public VALUEIN next() {
166       // if this is the first record, we don't need to advance
167       if (firstValue) {
168         firstValue = false;
169         return value;
170       }
171       // if this isn't the first record and the next key is different, they
172       // can't advance it here.
173       if (!nextKeyIsSame) {
174         throw new NoSuchElementException("iterate past last value");
175       }
176       // otherwise, go to the next key/value pair
177       try {
178         nextKeyValue();
179         return value;
180       } catch (IOException ie) {
181         throw new RuntimeException("next value iterator failed", ie);
182       } catch (InterruptedException ie) {
183         // this is bad, but we can't modify the exception list of java.util
184         throw new RuntimeException("next value iterator interrupted", ie);
185       }
186     }
187
188     public void remove() {
189       throw new UnsupportedOperationException("remove not implemented");
190     }
191
192   }
193
194   protected class ValueIterable implements Iterable<VALUEIN> {
195     private ValueIterator iterator = new ValueIterator();
196     @Override
197     public Iterator<VALUEIN> iterator() {
198       return iterator;
199     }
200   }
201
202   public
203   Iterable<VALUEIN> getValues() throws IOException, InterruptedException {
204     return iterable;
205   }
206 }





　　如下是这两的继承结构

　　MapContext的方法汇总（不包括继承而来的，因为从继承结构可以看出MapContext与ReduceContext均继承TaskInputOutputContext，没有重写继承而来的方法，所以它们继承的都是一致的）

　　同理ReduceContext的方法汇总

　　上述的方法的用法都比较明显，不多说。
　　接下来就是看看共同继承的父类TaskInputOutputContext
　　
　　有几个抽象方法：getCurrentKey() 、getCurrentValue() 、nextKeyValue() ，这是MapContext、ReduceContext共同的几个方法，务必需要MapContext与ReduceContext重新实现。write(KEYOUT key, VALUEOUT value) 则是把键值对写入DataOutput数据流中。在MapReduce编程过程中，不需要管理底层的数据流传输，write已经封装好了，直接调用即可写入流中。然后Hadoop会传输到下一步处理的环节。

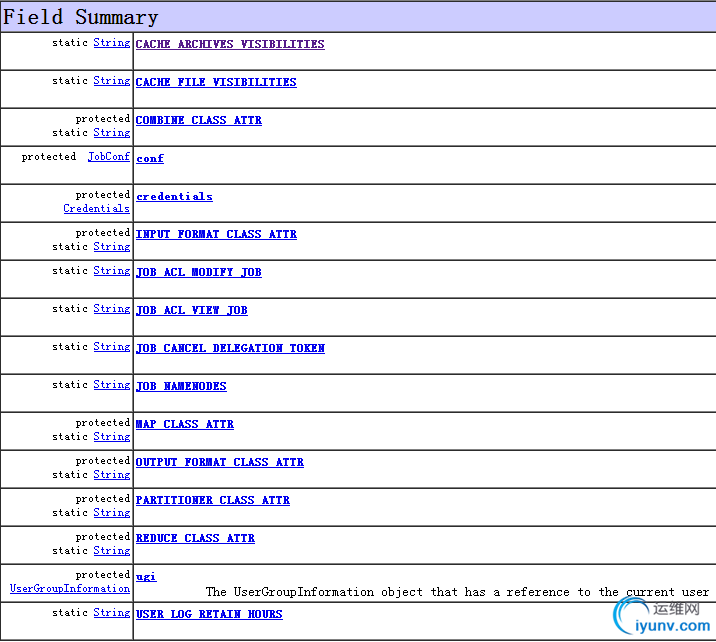

　　从前面Mapper.Context、 Reducer.Context、MapContext、ReduceContext、TaskInputOutputContext、TaskAttemptContext均没有添加任何成员变量，都是使用祖先JobContext的成员变量，而JobContext的成员变量汇总如下：

JobContext

　　绝大部分的成员变量是static final 变量，有预先设定的值或者直接在构造函数中赋值。基本不需要再改变的，JobContext也提供了返回成员变量的函数，譬如诸多的get**.
　　至此已将Context的继承与实现讲完，其实也没有讲什么东西，只是把API与源码整理一下呗。
