简单的mybatis——spring 整合（数据库：oracle）

dongfangho

　　刚刚开始学，mybatis，怕自己忘记基础，赶紧记录了下来，欢迎各位大神指错！
　　mybatis所需的jar包:mybatis-3.4.2.jar
　　mybatis与spring整合中需要的jar包：mybatis-spring-1.3.1.jar
　　其他jar包就找自己的需求来添加:比如oracle的驱动包，spring需要的相应的包
　　注：虽然配置文件里写了：增删改查，但是测试只测试查询所有，其他的自己进行测试了哈

大概思路：
　　首先：创建数据，建表，插入测试数据
　　再而：创建与表相对应的实体类
　　下一步：在接口中定义一些数据访问的方法
　　进一步：为MyBatis ORM创建的xml映射文件定义实现数据访问需要的sql脚本
　　最后：使用spring.xml完成整合，进行小测试
　　建表，插数据



CREATE TABLE books(bid NUMBER PRIMARY KEY ,bname VARCHAR2(50) NOT NULL ,bprice NUMBER NOT NULL );
INSERT  INTO books(bid,bname,bprice) VALUES (1,'百鬼夜行',12.5);
INSERT  INTO books(bid,bname,bprice) VALUES (2,'陌上花开',22.5);
INSERT  INTO books(bid,bname,bprice) VALUES (3,'夏目友人帐',32.5);

　　创建实体类　　





package edu.nf.mybatis.entity;
/**
* Created by Administrator on 2017/3/27.
*/
public class Books {
private long bid;
private String bname;
private double bprice;
public Books() {
}
public Books(long bid, String bname, double bprice) {
this.bid = bid;
this.bname = bname;
this.bprice = bprice;
}
public long getBid() {
return bid;
}
public void setBid(long bid) {
this.bid = bid;
}
public String getBname() {
return bname;
}
public void setBname(String bname) {
this.bname = bname;
}
public double getBprice() {
return bprice;
}
public void setBprice(double bprice) {
this.bprice = bprice;
}
@Override
public String toString() {
return "Books{" +
"bid=" + bid +
", bname='" + bname + '\'' +
", bprice=" + bprice +
'}';
}
}
View Code　　定义访问接口





package edu.nf.mybatis.mapper;
import edu.nf.mybatis.entity.Books;
import org.apache.ibatis.annotations.Param;
import java.util.List;
/**
* Created by Administrator on 2017/3/27.
* 图书数据访问的接口
*/
public interface IBookDao {
/*获取所有书籍*/
public List<Books> getAll();
/*通过ID获取单个数据*/
public Books getBookById(@Param("bid") int bid);
/*添加数据*/
public int add(Books entity);
/*根据ID删除*/
public int del(int bid);
/*更新*/
public int update(Books entity);
}
View Code　　创建xml映射文件定义实现数据访问需要的sql脚本





<?xml version="1.0" encoding="UTF-8"?>
<!DOCTYPE mapper PUBLIC "-//mybatis.org//DTD Mapper 3.0//EN" "http://mybatis.org/dtd/mybatis-3-mapper.dtd">
<!--命名空间应该是对应接口的包名+接口名-->
<mapper namespace="edu.nf.mybatis.mapper.IBookDao">
<!--id应该是对应接口的包名+接口名-->
<!--获取所有书籍-->
<!--因为在spring.xml文件中的sqlSessionFactory中配置属性 <property name="typeAliasesPackage" value="edu.nf.mybatis.entity"></property>-->
<!--所以这里resultType="Books"就只需要写类名Books，而不是edu.nf.mybatis.entity.Books了-->
<select id="getAll" resultType="Books">
select bid,bname,bprice from books
</select>
<!--通过编号获取书籍-->
<select id="getBookById" resultType="Books">
select bid,bname,bprice from books where bid = #{bid};
</select>
<!--添加书籍-->
<insert id="add">
insert into books(bid,bname,bprice) values (#{bid},#{bname},#{bprice});
</insert>
<!--删除书籍-->
<delete id="del">
delete from books where bid = #{bid};
</delete>
<!--更新书籍-->
<update id="update">
update books set bid = #{bid},bname = #{bname},bprice = #{bprice} where bid = #{bid};
</update>
</mapper>
View Code　　spring.xml完成整合，进行小测试





<?xml version="1.0" encoding="UTF-8"?>
<beans xmlns="http://www.springframework.org/schema/beans"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xmlns:context="http://www.springframework.org/schema/context"
xmlns:tx="http://www.springframework.org/schema/tx"
xsi:schemaLocation="http://www.springframework.org/schema/beans
http://www.springframework.org/schema/beans/spring-beans.xsd
http://www.springframework.org/schema/context
http://www.springframework.org/schema/context/spring-context-4.3.xsd
http://www.springframework.org/schema/tx
http://www.springframework.org/schema/tx/spring-tx-4.3.xsd">
<!--1 引入属性文件，在配置中占位使用 -->
<context:property-placeholder location="classpath:db.properties" />
<!--6 容器自动扫描IOC组件  -->
<context:component-scan base-package="edu.nf.mybatis"/>
<!--2 配置C3P0数据源 -->
<bean id="dataSource" class="com.mchange.v2.c3p0.ComboPooledDataSource" destroy-method="close">
<!--驱动类名 -->
<property name="driverClass" value="${driver}" />
<!-- url -->
<property name="jdbcUrl" value="${url}" />
<!-- 用户名 -->
<property name="user" value="${user}" />
<!-- 密码 -->
<property name="password" value="${password}" />
</bean>
<!--3 会话工厂bean sqlSessionFactoryBean -->
<bean id="sqlSessionFactory" class="org.mybatis.spring.SqlSessionFactoryBean">
<!-- 数据源 -->
<property name="dataSource" ref="dataSource"></property>
<!-- 配置这里后在bookMapper.xml文件中，sql语句返回的类型就不许写全路径，直接写类名就好了-->
<property name="typeAliasesPackage" value="edu.nf.mybatis.entity"></property>
<!-- sql映射文件路径 -->
<property name="mapperLocations" value="classpath:mybatis/*.xml"></property>
</bean>
<bean  class="org.mybatis.spring.mapper.MapperScannerConfigurer">
<!-- 指定要自动扫描接口的基础包，实现接口 -->
<property name="basePackage" value="edu.nf.mybatis.mapper" />
</bean>
<!--5 声明式事务管理 -->
<!--定义事物管理器，由spring管理事务 -->
<bean id="transactionManager" class="org.springframework.jdbc.datasource.DataSourceTransactionManager">
<property name="dataSource" ref="dataSource"></property>
</bean>
<!--支持注解驱动的事务管理，指定事务管理器 -->
<tx:annotation-driven transaction-manager="transactionManager"/>
</beans>
View Code




import edu.nf.mybatis.entity.Books;
import edu.nf.mybatis.sevice.BooksService;
import org.junit.Test;
import org.springframework.context.ApplicationContext;
import org.springframework.context.support.ClassPathXmlApplicationContext;
import java.util.List;
/**
* Created by Administrator on 2017/3/27.
*/
public class testMybatis {
@Test
public void test2(){
ApplicationContext ctx=new ClassPathXmlApplicationContext("spring.xml");
BooksService booksService=ctx.getBean(BooksService.class);
List<Books> books=booksService.getAll();
System.out.println(books);
}
}
View Code　　web.xml



<?xml version="1.0" encoding="UTF-8"?>
<web-app xmlns="http://xmlns.jcp.org/xml/ns/javaee"
xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
xsi:schemaLocation="http://xmlns.jcp.org/xml/ns/javaee http://xmlns.jcp.org/xml/ns/javaee/web-app_3_1.xsd"
version="3.1">
<listener>
<listener-class>org.springframework.web.context.ContextLoaderListener</listener-class>
</listener>
<!-- 配置路径，默认是 "WEB-INF/applicationContext.xml" -->
<context-param>
<param-name>contextConfigLocation</param-name>
<param-value>classpath:spring.xml</param-value>
</context-param>
<servlet-mapping>
<servlet-name>myBatis</servlet-name>
<url-pattern>/</url-pattern>
</servlet-mapping>
</web-app>

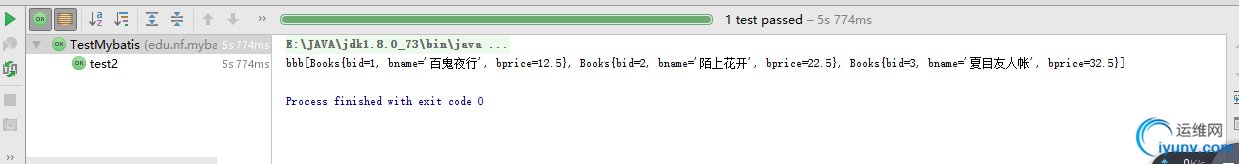

　　test2测试运行结果：
