　　OS：RHEL7.2
　　ORACLE 12C
　　step1：安装必需的rpm包
　　yum install binutils libX11 compat-libcap1 libXau compat-libstdc++-33 libaio gcc libaio-devel gcc-c++ libdmx glibc-devel glibc ksh make libgcc sysstat libstdc++ xorg-x11-utils libstdc++-devel xorg-x11-xauth libXext libXv libXtst libXi libxcb libXt libXmu libXxf86misc libXxf86dga libXxf86vm nfs-utils smartmontools
　　step2：修改内核参数
　　vim /etc/sysctl.d/98-oracle-kernel.conf
　　vm.swappiness = 1
　　vm.dirty_background_ratio = 3
　　vm.dirty_ratio = 80
　　vm.dirty_expire_centisecs = 500
　　vm.dirty_writeback_centisecs = 100
　　kernel.sem = 250 32000 100 128
　　fs.aio-max-nr = 1048576
　　net.ipv4.ip_local_port_range = 9000 65500
　　net.core.rmem_default = 262144
　　net.core.rmem_max = 4194304
　　net.core.wmem_default = 262144
　　net.core.wmem_max = 1048576
　　kernel.msgmnb = 65536
　　kernel.msgmax = 65536
　　kernel.shmmax = 8589934590  ==8G，大于SGA即可
　　kernel.shmall = 2147483648     ==8G
　　kernel.shmmni = 4096
　　sysctl -p /etc/sysctl.d/98-oracle-kernel.conf
　　step3：设置用户限制
　　vim /etc/security/limits.d/99-grid-oracle-limits.conf
　　oracle soft nproc 2047
　　oracle hard nproc 16384
　　oracle soft nofile 1024
　　oracle hard nofile 65536
　　oracle soft stack 10240
　　oracle hard stack 32768
　　step4：添加用户
　　groupadd --gid 54321 oinstall
　　groupadd --gid 54322 dba
　　groupadd --gid 54326 oper
　　groupadd --gid 54327 backupdba
　　groupadd --gid 54328 dgdba
　　groupadd --gid 54329 kmdba
　　useradd --uid 54321 --gid oinstall --groups dba,oper,backupdba,dgdba,kmdba oracle
　　echo "oracle"|passwd --stdin oracle
　　step5：设置目录
　　mkdir -p /u01/app/12.2.0/grid
　　chown -R oracle.oinstall /u01
　　chmod -R 755 /u01
　　step6：设置环境变量
　　su - oracle
　　vim .bash_profile
　　export ORACLE_BASE=/u01/app/oracle
　　export ORACLE_HOME=$ORACLE_BASE/product/12.1.0/db_1
　　export ORACLE_SID=orcl
　　export PATH=$ORACLE_HOME/bin:$PATH;
　　step7：开始安装
　　su - root
　　xhost +
　　su - oracle
　　[oracle@oracle12c database]$ ./runInstaller
　　Starting Oracle Universal Installer...
　　Checking Temp space: must be greater than 500 MB.   Actual 7211 MB    Passed
　　Checking swap space: must be greater than 150 MB.   Actual 1023 MB    Passed
　　Checking monitor: must be configured to display at least 256 colors
　　>>> Could not execute auto check for display colors using command /usr/bin/xdpyinfo. Check if the DISPLAY variable is set.    Failed  Ignoring required pre-requisite failures. Continuing...
　　Preparing to launch Oracle Universal Installer from /tmp/OraInstall2018-08-11_01-14-29AM. Please wait ...
　　DISPLAY not set. Please set the DISPLAY and try again.
　　Depending on the Unix Shell, you can use one of the following commands as examples to set the DISPLAY environment variable:
　　- For csh:              % setenv DISPLAY 192.168.1.128:0.0
　　- For sh, ksh and bash:     $ DISPLAY=192.168.1.128:0.0; export DISPLAY
　　Use the following command to see what shell is being used:
　　echo $SHELL
　　Use the following command to view the current DISPLAY environment variable setting:
　　echo $DISPLAY
　　- Make sure that client users are authorized to connect to the X Server.
　　To enable client users to access the X Server, open an xterm, dtterm or xconsole as the user that started the session and type the following command:
　　% xhost +
　　To test that the DISPLAY environment variable is set correctly, run a X11 based program that comes with the native operating system such as 'xclock':
　　%
　　If you are not able to run xclock successfully, please refer to your PC-X Server or OS vendor for further assistance.
　　Typical path for xclock: /usr/X11R6/bin/xclock
　　之后尝试设置了多次$DISPLAY，都不行，如下
　　DISPLAY=192.168.107.155:0.0;export $DISPLAY
　　DISPLAY=192.168.107.155:1.0;export $DISPLAY
　　DISPLAY=192.168.107.155:0.1export $DISPLAY
　　DISPLAY=:0;export $DISPLAY
　　DISPLAY=:1;export $DISPLAY
　　之后我在root的一个窗口执行xclock，发现没有clock，之后安装了xorg-x11-apps(yum install xorg-x11-apps)，使用root的xclock就可以看到clock了
　　之后su - oracle还是看不到clock
　　之后到root窗口echo $DISPLAY发现是:0，所以我在oracle窗口也设置
　　DISPLAY=:0;export $DISPLAY
　　之后就可以正常的图形化安装了

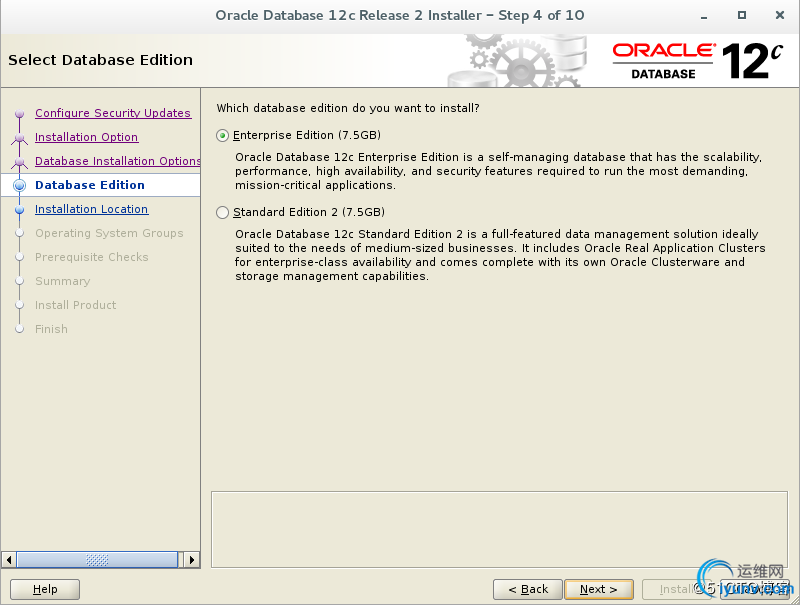

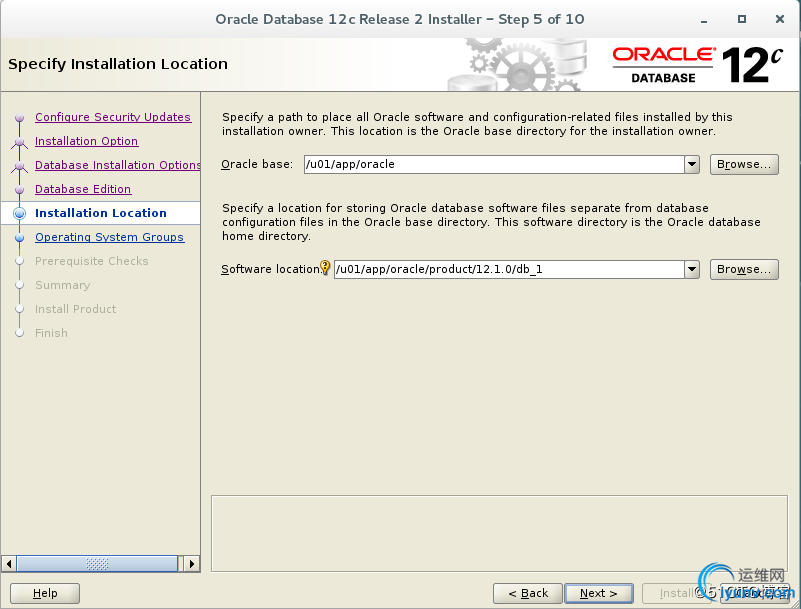

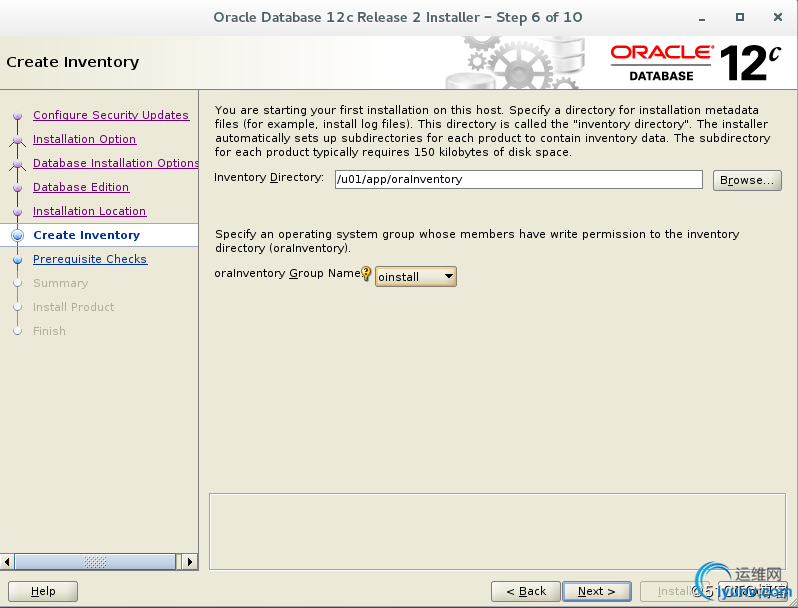

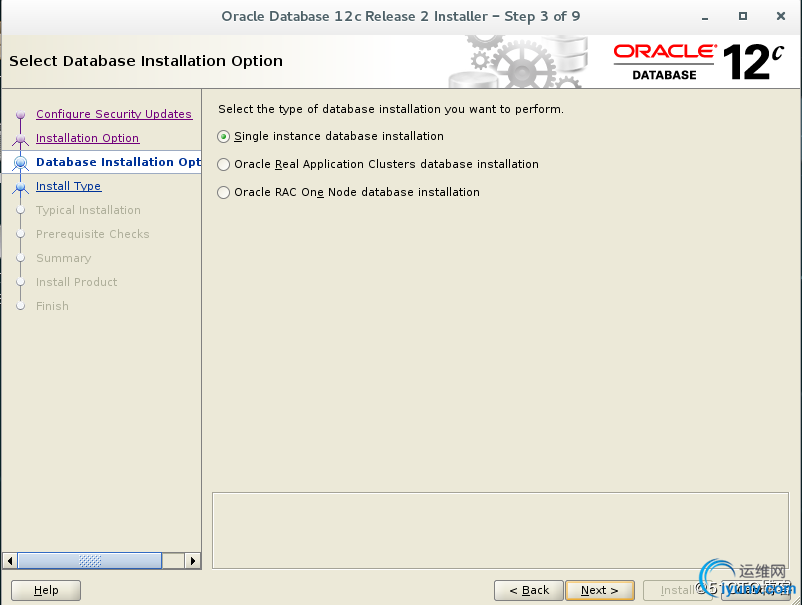

　　安装过程截图：

　　这里用fix来修复一下

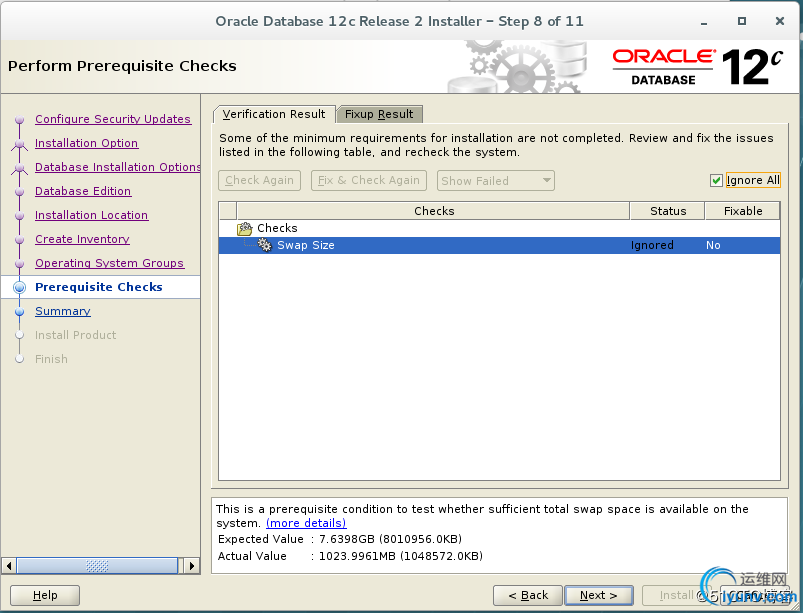

　　忽略swap报警，我这里只给swap分了1G

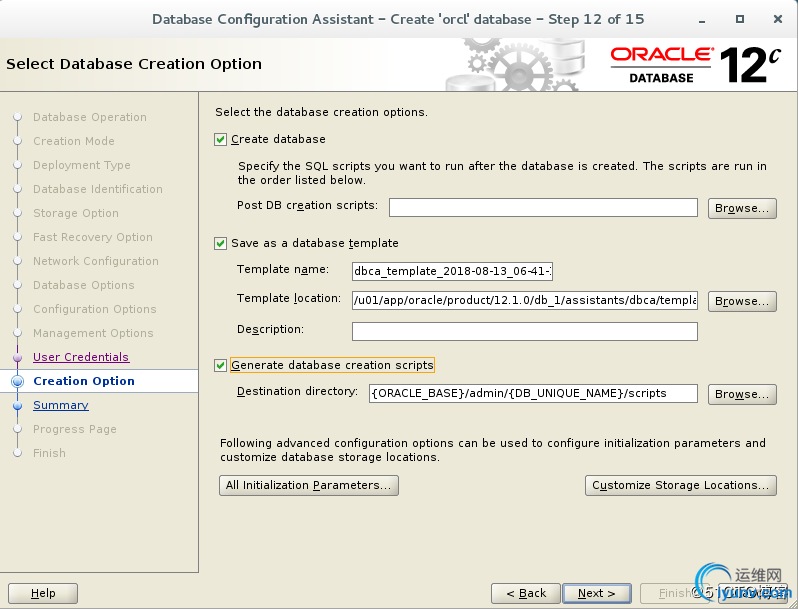

　　step8：DBCA建库

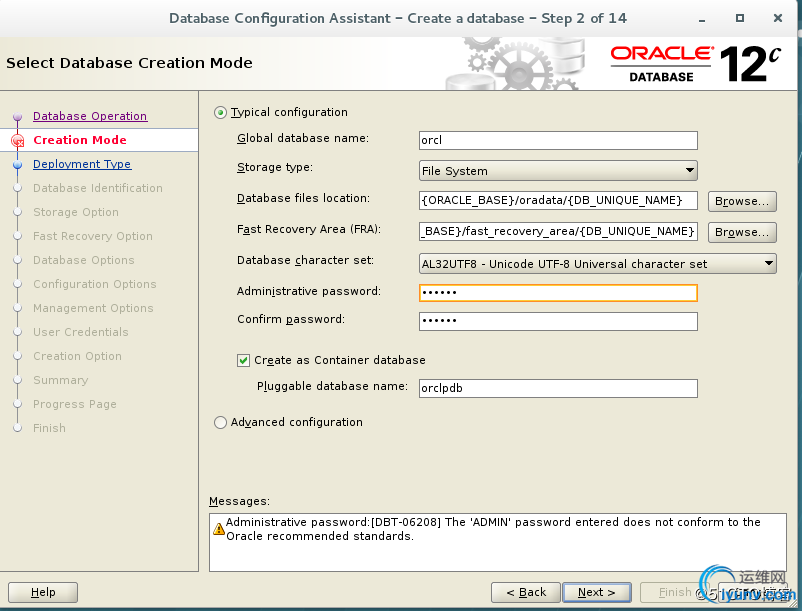

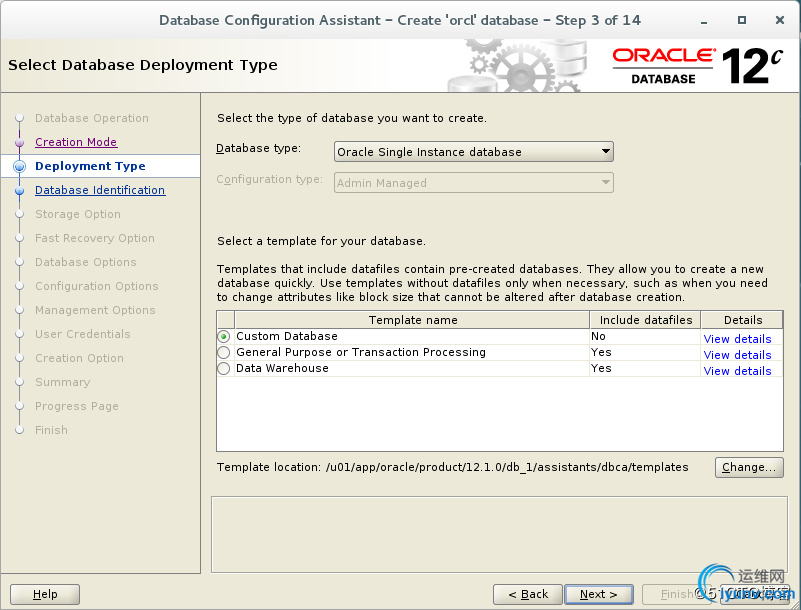

　　在这里你可以选择典型配置，也可以选择自定义配置，我选择的是自定义(advanced configuration)

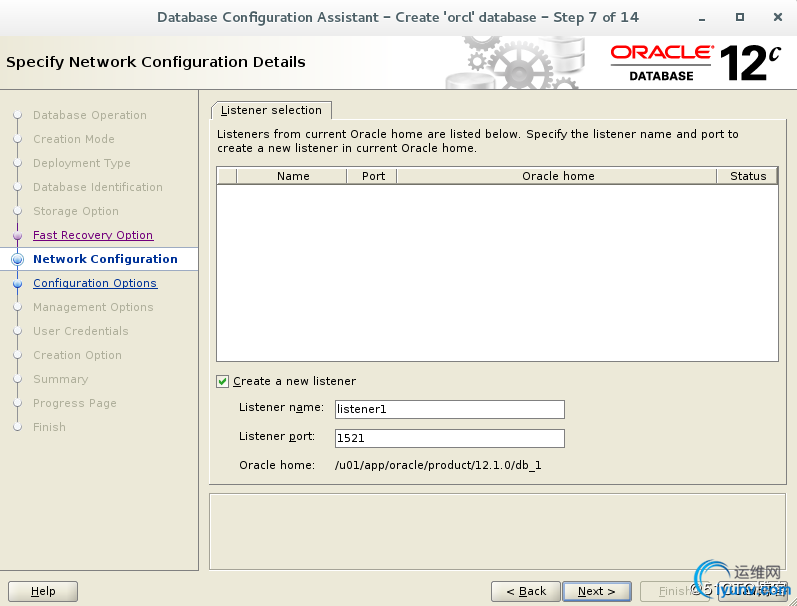

　　创建listner，叫listner1

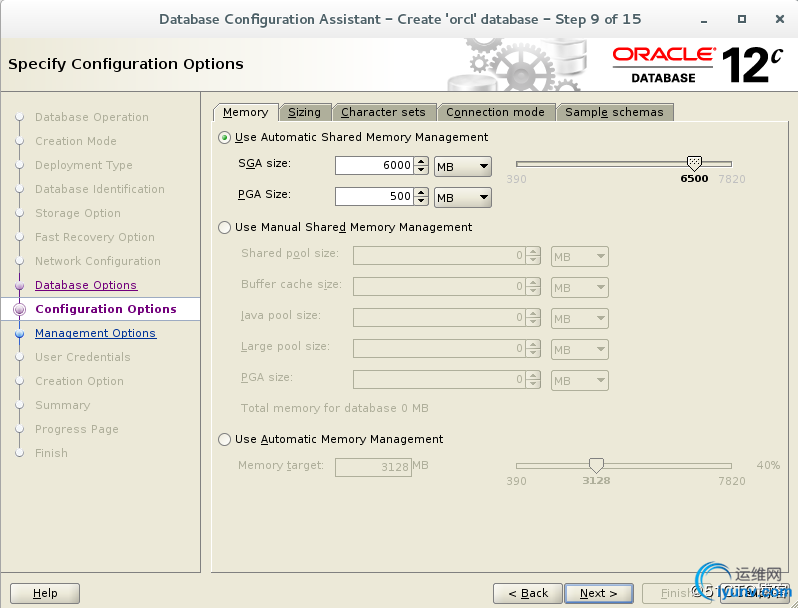

　　给SGA分6G，pga 500M，这是测试库，就我一个人用

　　安装sample

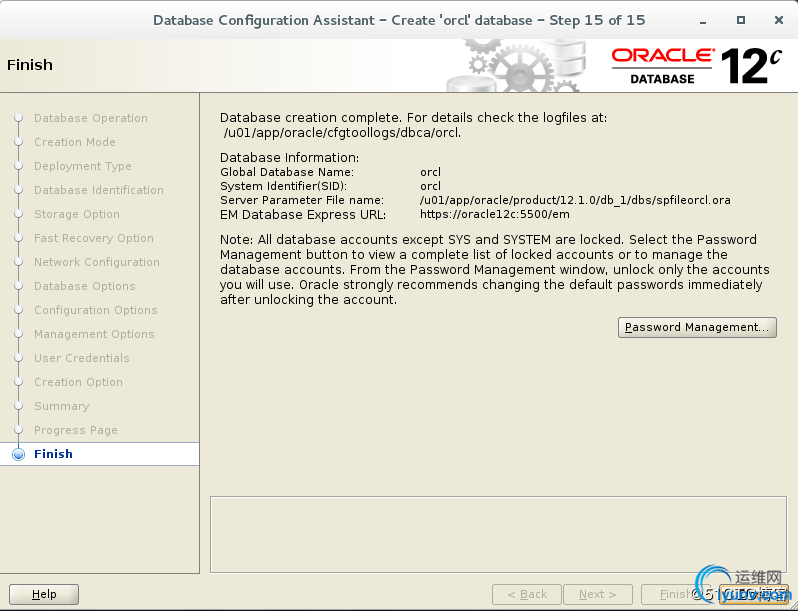

　　安装完成
　　SYS@orcl> select host_name,version from v$instance;
　　HOST_NAME                 VERSION
　　---------------------------------------- -----------------
　　oracle12c                 12.2.0.1.0
　　SYS@orcl> !lsnrctl status
　　LSNRCTL for Linux: Version 12.2.0.1.0 - Production on 14-AUG-2018 00:59:07
　　Copyright (c) 1991, 2016, Oracle.  All rights reserved.
　　Connecting to (ADDRESS=(PROTOCOL=tcp)(HOST=)(PORT=1521))
　　STATUS of the LISTENER
　　------------------------
　　Alias                     LISTENER
　　Version                   TNSLSNR for Linux: Version 12.2.0.1.0 - Production
　　Start Date                14-AUG-2018 00:12:27
　　Uptime                    0 days 0 hr. 46 min. 44 sec
　　Trace Level               off
　　Security                  ON: Local OS Authentication
　　SNMP                      OFF
　　Listener Parameter File   /u01/app/oracle/product/12.1.0/db_1/network/admin/listener.ora
　　Listener Log File         /u01/app/oracle/diag/tnslsnr/oracle12c/listener/alert/log.xml
　　Listening Endpoints Summary...
　　(DESCRIPTION=(ADDRESS=(PROTOCOL=tcp)(HOST=oracle12c)(PORT=1521)))
　　(DESCRIPTION=(ADDRESS=(PROTOCOL=tcps)(HOST=oracle12c)(PORT=5500))(Security=(my_wallet_directory=/u01/app/oracle/admin/orcl/xdb_wallet))(Presentation=HTTP)(Session=RAW))
　　Services Summary...
　　Service "7351e8ae5372218ee0539b6ba8c08d05" has 1 instance(s).
　　Instance "orcl", status READY, has 1 handler(s) for this service...
　　Service "orcl" has 1 instance(s).
　　Instance "orcl", status READY, has 1 handler(s) for this service...
　　Service "orclXDB" has 1 instance(s).
　　Instance "orcl", status READY, has 1 handler(s) for this service...
　　Service "orclpdb" has 1 instance(s).
　　Instance "orcl", status READY, has 1 handler(s) for this service...
　　The command completed successfully
