oracle 10G rac + asm

wuliws

　　目标:完成cluster安装,升级cluster到10.2.4
　　完成数据库安装,使用raw存储crs和作为选举盘,使用asm作为数据库存储空间
　　升级database到10.2.4
　　完成实例安装,

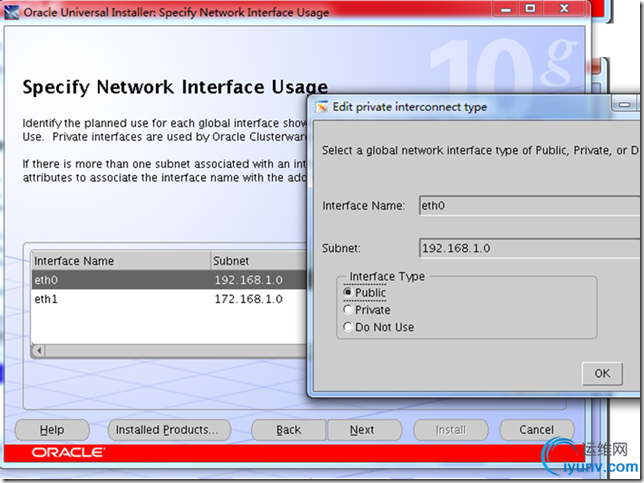

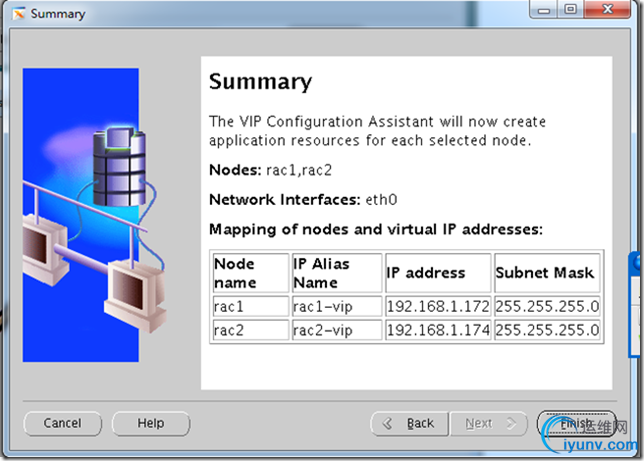

　　网络地址规划:
　　192.168.1.171 rac1 rac1.oracle.com
　　192.168.1.172 rac1-vip
　　192.168.1.173 rac2 rac2.oracle.com
　　192.168.1.174 rac2-vip
　　172.168.1.191 rac1-priv
　　172.168.1.192 rac2-priv
　　创建文件夹挂载光盘安装oracle需要的包
　　[root@rac1 ~]# mkdir /media/disk
　　[root@rac1 ~]# mount /dev/cdrom /media/disk
　　mount: block device /dev/cdrom is write-protected, mounting read-only
　　[root@rac1 yum.repos.d]# cat public-yum-el5.repo
　　[oel5]
　　name = Enterprise Linux 5.5 DVD
　　baseurl = file:///media/disk/Server/
　　gpgcheck = 0
　　enabled = 1
　　yum -y install oracle-validated
　　创建文件夹存放cluster database 以及升级文件添加hosts
　　mkdir /s01
　　chown oracle:dba /s0
　　[root@rac1 ~]# passwd oracle
　　Changing password for user oracle.
　　New UNIX password:
　　Retype new UNIX password:
　　passwd: all authentication tokens updated successfully.
　　[root@rac1 ~]# cat /etc/hosts
　　# Do not remove the following line, or various programs
　　# that require network functionality will fail.
　　127.0.0.1 localhost.localdomain localhost
　　::1 localhost6.localdomain6 localhost6
　　#add by Stark Shaw
　　192.168.1.171 rac1 rac1.oracle.com
　　192.168.1.172 rac1-vip
　　192.168.1.173 rac2 rac2.oracle.com
　　192.168.1.174 rac2-vip
　　172.168.1.191 rac1-priv
　　172.168.1.192 rac2-priv
　　#end
复制rac1主机修改网路配置主机名　　[
　　rac2主机]
　　updatedb
　　locate bak
　　rm -rf `locate bak`
　　updatedb
　　locate bak
　　system-config-network-tui
　　172.168.1.192 rac2-priv eth1
　　192.168.1.173 rac2 rac2.oracle.com eth0
　　service network restart
创建udev raw 和 asm共享存储　　添加硬盘 固定大小 ocr 2G
　　三块磁盘 dbshare[1,2,3] 5G fixsize
　　管理--虚拟介质管理-创建的磁盘可以共享
　　在rac2添加已经存在新创建的磁盘[注意添加的sata 端口要和rac1一致]
　　rac1主机操作:
　　[root@rac1 ~]# fdisk -l |grep bytes
　　Disk /dev/sdb doesn't contain a valid partition table
　　Disk /dev/sdc doesn't contain a valid partition table
　　Disk /dev/sdd doesn't contain a valid partition table
　　Disk /dev/sde doesn't contain a valid partition table
　　Disk /dev/dm-0 doesn't contain a valid partition table
　　Disk /dev/dm-1 doesn't contain a valid partition table
　　Disk /dev/sda: 64.4 GB, 64424509440 bytes
　　Units = cylinders of 16065 * 512 = 8225280 bytes
　　Disk /dev/sdb: 2147 MB, 2147483648 bytes
　　Units = cylinders of 16065 * 512 = 8225280 bytes
　　Disk /dev/sdc: 5368 MB, 5368709120 bytes
　　Units = cylinders of 16065 * 512 = 8225280 bytes
　　Disk /dev/sdd: 5368 MB, 5368709120 bytes
　　Units = cylinders of 16065 * 512 = 8225280 bytes
　　Disk /dev/sde: 5368 MB, 5368709120 bytes
　　Units = cylinders of 16065 * 512 = 8225280 bytes
　　Disk /dev/dm-0: 62.1 GB, 62176362496 bytes
　　Units = cylinders of 16065 * 512 = 8225280 bytes
　　Disk /dev/dm-1: 2113 MB, 2113929216 bytes
　　Units = cylinders of 16065 * 512 = 8225280 bytes
确定ocr为sdb　　为sdb分区
　　[
　　root@rac1 ~]# fdisk /dev/sdb
　　Device contains neither a valid DOS partition table, nor Sun, SGI or OSF disklabel
　　Building a new DOS disklabel. Changes will remain in memory only,
　　until you decide to write them. After that, of course, the previous
　　content won't be recoverable.
　　Warning: invalid flag 0x0000 of partition table 4 will be corrected by w(rite)
　　Command (m for help): n
　　Command action
　　e extended
　　p primary partition (1-4)
　　p
　　Partition number (1-4): 1
　　First cylinder (1-261, default 1):
　　Using default value 1
　　Last cylinder or +size or +sizeM or +sizeK (1-261, default 261): +1000M
　　Command (m for help): n
　　Command action
　　e extended
　　p primary partition (1-4)
　　p
　　Partition number (1-4): 2
　　First cylinder (124-261, default 124):
　　Using default value 124
　　Last cylinder or +size or +sizeM or +sizeK (124-261, default 261):
　　Using default value 261
　　Command (m for help): w

　　The partition table has been>　　Calling ioctl() to re-read partition table.
　　WARNING: Re-reading the partition table failed with error 16: Device or resource busy.
　　The kernel still uses the old table.
　　The new table will be used at the next reboot.
　　Syncing disks.
　　partprobe /dev/sdb
　　[root@rac1 ~]# ls -l /dev/sdb*
　　brw-r----- 1 root disk 8, 16 Jun 21 01:29 /dev/sdb
　　brw-r----- 1 root disk 8, 17 Jun 21 01:30 /dev/sdb1
　　brw-r----- 1 root disk 8, 18 Jun 21 01:30 /dev/sdb2
绑定设备为raw　　[root@rac1 ~]# cd /etc/udev/rules.d/
　　[root@rac1 rules.d]# vim 60-raw.rules
　　# Enter raw device bindings here.
　　#
　　# An example would be:
　　# ACTION=="add", KERNEL=="sda", RUN+="/bin/raw /dev/raw/raw1 %N"
　　# to bind /dev/raw/raw1 to /dev/sda, or
　　# ACTION=="add", ENV{MAJOR}=="8", ENV{MINOR}=="1", RUN+="/bin/raw /dev/raw/raw
　　2 %M %m"
　　# to bind /dev/raw/raw2 to the device with major 8, minor 1.
　　#add by stark
　　ACTION=="add", KERNEL=="sdb1", RUN+="/bin/raw /dev/raw/raw1 %N"
　　ACTION=="add", KERNEL=="sdb2", RUN+="/bin/raw /dev/raw/raw2 %N"
　　ACTION=="add", KERNEL=="raw*", OWNER=="oracle", GROUP=="oinstall", MODE=="0660"
　　"60-raw.rules" 11L, 538C written
　　[root@rac1 rules.d]# start_udev
　　Starting udev: [ OK ]
　　[root@rac1 rules.d]# ls /dev/raw/* -l
　　crw-rw---- 1 oracle oinstall 162, 1 Jun 21 01:38 /dev/raw/raw1
　　crw-rw---- 1 oracle oinstall 162, 2 Jun 21 01:38 /dev/raw/raw2
绑定asm作为数据文件存放位置　　[root@rac1 rules.d]# touch 99-oracle-asmdevices.rules
　　执行
　　for i in c d e ;cde为当前存在的非系统磁盘数
　　do
　　echo "KERNEL==\"sd$i\", BUS==\"scsi\", PROGRAM==\"/sbin/scsi_id -g -u -s %p\", RESULT==\"`scsi_id -g -u -s /block/sd$i`\", NAME=\"asm-disk$i\", OWNER=\"oracle\", GROUP=\"oinstall\", MODE=\"0660\""
　　done
　　结果如下
　　KERNEL=="sdc", BUS=="scsi", PROGRAM=="/sbin/scsi_id -g -u -s %p", RESULT=="SATA_VBOX_HARDDISK_VBda106253-7fed37ca_", NAME="asm-diskc", OWNER="oracle", GROUP="oinstall", MODE="0660"
　　KERNEL=="sdd", BUS=="scsi", PROGRAM=="/sbin/scsi_id -g -u -s %p", RESULT=="SATA_VBOX_HARDDISK_VBa3720023-d5ef9f25_", NAME="asm-diskd", OWNER="oracle", GROUP="oinstall", MODE="0660"
　　KERNEL=="sde", BUS=="scsi", PROGRAM=="/sbin/scsi_id -g -u -s %p", RESULT=="SATA_VBOX_HARDDISK_VBaaff0479-8f5486db_", NAME="asm-diske", OWNER="oracle", GROUP="oinstall", MODE="0660"
把结果贴入 99-oracle-asmdevices.rules　　重启查看asm绑定情况
　　[root@rac1 rules.d]# start_udev
　　Starting udev: [ OK ]
　　[root@rac1 rules.d]# ll /dev/asm-disk*
　　brw-rw---- 1 oracle oinstall 8, 32 Jun 21 01:51 /dev/asm-diskc
　　brw-rw---- 1 oracle oinstall 8, 48 Jun 21 01:51 /dev/asm-diskd
　　brw-rw---- 1 oracle oinstall 8, 64 Jun 21 01:51 /dev/asm-diske
拷贝规则文件到rac2　　[root@rac1 rules.d]# scp 60-raw.rules 99-oracle-asmdevices.rules rac2:`pwd`
　　The authenticity of host 'rac2 (192.168.1.173)' can't be established.
　　RSA key fingerprint is fa:dd:a6:17:c0:a8:9b:f9:a8:82:ae:8c:4b:d2:90:44.
　　Are you sure you want to continue connecting (yes/no)? yes
　　Warning: Permanently added 'rac2,192.168.1.173' (RSA) to the list of known hosts.
　　root@rac2's password:
　　60-raw.rules 100% 538 0.5KB/s 00:00
　　99-oracle-asmdevices.rules
在二号主机上重启udev服务　　[root@rac2 rules.d]# start_udev
　　Starting udev: [ OK ]
　　[root@rac2 rules.d]# ll /dev/raw/raw*
　　crw-rw---- 1 oracle oinstall 162, 1 Jun 21 02:00 /dev/raw/raw1
　　crw-rw---- 1 oracle oinstall 162, 2 Jun 21 02:00 /dev/raw/raw2
　　[root@rac2 ~]# ll /dev/asm-disk*
　　brw-rw---- 1 oracle oinstall 8, 32 Jun 21 02:30 /dev/asm-diskc
　　brw-rw---- 1 oracle oinstall 8, 48 Jun 21 02:30 /dev/asm-diskd
　　brw-rw---- 1 oracle oinstall 8, 64 Jun 21 02:30 /dev/asm-diske
　　ssh免密码登录
　　[
　　root@rac1 rules.d]# su - oracle
　　[oracle@rac1 ~]$ ssh-keygen -t rsa
　　Generating public/private rsa key pair.
　　Enter file in which to save the key (/home/oracle/.ssh/id_rsa):
　　Created directory '/home/oracle/.ssh'.
　　Enter passphrase (empty for no passphrase):
　　Enter same passphrase again:

　　Your>　　Your public key has been saved in /home/oracle/.ssh/id_rsa.pub.
　　The key fingerprint is:
　　6f:56:64:60:0a:55:27:93:18:7f:01:bc:13:8c:f6:0b oracle@rac1.oracle.com
　　[oracle@rac1 ~]$ ssh-keygen -t dsa
　　Generating public/private dsa key pair.
　　Enter file in which to save the key (/home/oracle/.ssh/id_dsa):
　　Enter passphrase (empty for no passphrase):
　　Enter same passphrase again:

　　Your>　　Your public key has been saved in /home/oracle/.ssh/id_dsa.pub.
　　The key fingerprint is:
　　94:fb:96:68:5c:d6:6a:3c:c3:a1:b4:6d:59:50:bb:cd oracle@rac1.oracle.com
　　[oracle@rac1 ~]$ cd ~/.ssh/
　　[oracle@rac1 ~]$ cd ~/.ssh/
　　[oracle@rac1 .ssh]$ ls

　　id_dsa>
　　[oracle@rac1 .ssh]$ cat>
　　[oracle@rac1 .ssh]$ cat>　　[oracle@rac1 .ssh]$ cat authorized_keys
　　ssh-rsa AAAAB3NzaC1yc2EAAAABIwAAAQEAsUUZyWS3YZaB/PEJJzzc9KwIqrvLh+lquTvZMMju4EC3zyvPd56lHl/2hpOOECBDGmLOtH/gGGbDDuj4uFzJ9JXbWFbve9etIBVbJuqz7LNis4yZjBDxtWgUrukmU8T7XvNVnEAxIkwX6C3UtHeQOl/XT1LJA9CHuwKpHNGxg5VCUSnYA3fqiisAqnV7nubSAueip3fCFd2VppiBqz5lywos1pSIN/KIojvVUwVyj9MR0MjwpXKzA0NCHRDreqLB7orRoKh3lN98NNAfKcnZ+p97244sZbNxPbpOg2CvVcUynixpTWLF4Asb8GHyMvM4mfq9D4gVleVM/GEKFwA8QQ== oracle@rac1.oracle.com
　　ssh-dss AAAAB3NzaC1kc3MAAACBAKkQaIy7bNRhsSZ5V/tbM7xiivgyyNM2GVHyGoP5n8CCSnJT9Cnz7PpDgwZEIdSGBQuzkH06yRq4xq00zDi+hTgGcexc/TwRh2Bf5RtQ22bTl9TXt8dIEz7OWephJKdUrzRbbDhYX8L01VmVqiGnoPJwyUyfSonGConUcd0YPM8XAAAAFQCKb3TOxXhWEUitICgZq+ShkM2nVQAAAIA7akPevgGP42Y3UaWepXeaL7fDcvEqSSfvttUJOqchKGWK1KI6hX0Tsfy7+AUjCmbTszdCNa3VWU99yMzI/p7jtjLci81BybKfODCqqCLKk4g8ZM79xS9qvzacqSMkI19wbF6pl3V4ZuOYlYt94mk5WWqrUiK4lUvByA/YOSpXAgAAAIBTm9xDhJW3NSQVLmNCx67wvq4oku7xe11xJzfAcbuxiQGSj6c6tNi5rCKLtKpQQ6vMLLE9IZG5L84I8p3QymkGa+QOtz/Q5VuuJXUcfivUfybDxrCbr7vLPQRoVQt0pLIFdKtLzcaub5P8dBxlXoiOHiKXYQqo+f1j7aeqheVZ2g== oracle@rac1.oracle.com
　　在rac2上生成 rsa dsa
　　[oracle@rac2 ~]$ ssh-keygen -t rsa
　　Generating public/private rsa key pair.
　　Enter file in which to save the key (/home/oracle/.ssh/id_rsa): Created directory '/home/oracle/.ssh'.
　　Enter passphrase (empty for no passphrase):
　　Enter same passphrase again:

　　Your>　　Your public key has been saved in /home/oracle/.ssh/id_rsa.pub.
　　The key fingerprint is:
　　91:41:e5:6f:b7:d1:ed:3e:03:d3:8f:7d:d0:34:58:64 oracle@rac2.oracle.com
　　[oracle@rac2 ~]$ ssh-keygen -t dsa
　　Generating public/private dsa key pair.
　　Enter file in which to save the key (/home/oracle/.ssh/id_dsa):
　　Enter passphrase (empty for no passphrase):
　　Enter same passphrase again:

　　Your>　　Your public key has been saved in /home/oracle/.ssh/id_dsa.pub.
　　The key fingerprint is:
　　61:0c:4f:1f:24:de:1a:af:a3:ea:b6:d8:73:7b:fe:74 oracle@rac2.oracle.com
　　拷贝rac2 上oracle的密钥到rac1的自认证文件
　　[oracle@rac1 ~]$ cd .ssh/
　　[oracle@rac1 .ssh]$ ssh rac2 cat ~/.ssh/id_rsa.pub >> authorized_keys
　　The authenticity of host 'rac2 (192.168.1.173)' can't be established.
　　RSA key fingerprint is fa:dd:a6:17:c0:a8:9b:f9:a8:82:ae:8c:4b:d2:90:44.
　　Are you sure you want to continue connecting (yes/no)? yes
　　Warning: Permanently added 'rac2,192.168.1.173' (RSA) to the list of known hosts.
　　oracle@rac2's password:
　　[oracle@rac1 .ssh]$ ssh rac2 cat ~/.ssh/id_dsa.pub >> authorized_keys
　　oracle@rac2's password:
　　拷贝自认证文件到rac2
　　[oracle@rac1 .ssh]$ scp authorized_keys rac2:`pwd`
　　oracle@rac2's password:
　　authorized_keys
　　验证是否通过
　　rac1 到rac2'
　　[oracle@rac1 .ssh]$ ssh rac2
　　[oracle@rac2 ~]$ logout
　　Connection to rac2 closed.
　　rac2 到 rac1
　　[oracle@rac2 ~]$ ssh rac1
　　The authenticity of host 'rac1 (192.168.1.171)' can't be established.
　　RSA key fingerprint is fa:dd:a6:17:c0:a8:9b:f9:a8:82:ae:8c:4b:d2:90:44.
　　Are you sure you want to continue connecting (yes/no)? yes
　　Warning: Permanently added 'rac1,192.168.1.171' (RSA) to the list of known hosts.
　　[oracle@rac1 ~]$ logout
　　Connection to rac1 closed.
同步时间　　rac1操作
　　[oracle@rac1 .ssh]$ date;ssh rac1 date
　　Thu Jun 21 02:22:04 CST 2012
　　The authenticity of host 'rac1 (192.168.1.171)' can't be established.
　　RSA key fingerprint is fa:dd:a6:17:c0:a8:9b:f9:a8:82:ae:8c:4b:d2:90:44.
　　Are you sure you want to continue connecting (yes/no)? yes
　　Warning: Permanently added 'rac1,192.168.1.171' (RSA) to the list of known hosts.
　　Thu Jun 21 02:22:06 CST 2012
　　rac2操作
　　[oracle@rac2 .ssh]$ date;ssh rac1 date
　　Thu Jun 21 02:22:20 CST 2012
　　Thu Jun 21 02:22:20 CST 2012
　　[oracle@rac2 .ssh]$ date;ssh rac2 date
　　Thu Jun 21 02:22:25 CST 2012
　　The authenticity of host 'rac2 (192.168.1.173)' can't be established.
　　RSA key fingerprint is fa:dd:a6:17:c0:a8:9b:f9:a8:82:ae:8c:4b:d2:90:44.
　　Are you sure you want to continue connecting (yes/no)? yes
　　Warning: Permanently added 'rac2,192.168.1.173' (RSA) to the list of known hosts.
　　Thu Jun 21 02:22:26 CST 2012

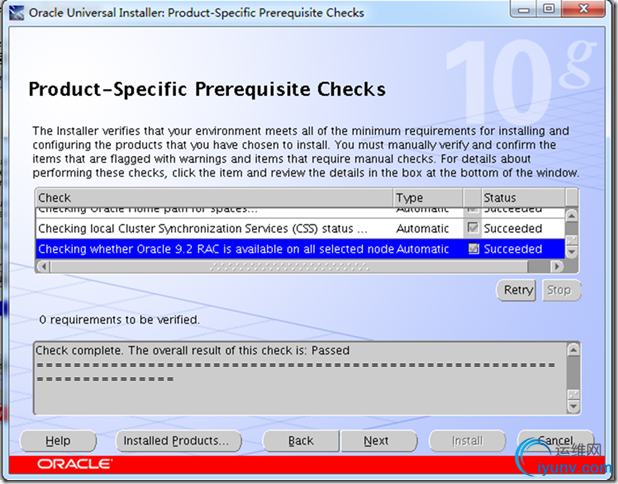

安装cluster软件　　上传cluster database等到rac1的/s01目录
　　[root@rac1 s01]# ll
　　total 2131768
　　-rw-r--r-- 1 oracle oinstall 316486815 Jun 21 02:38 10201_clusterware_linux_x86_64.gz
　　-rw-r--r-- 1 oracle oinstall 668734007 Jun 21 02:39 10201_database_linux32.zip
　　-rw-r--r-- 1 oracle oinstall 1195551830 Jun 21 02:40 p6810189_10204_Linux-x86-64.zip
　　解压缩
　　[oracle@rac1 s01]$ gzip -d 10201_clusterware_linux_x86_64.gz
　　[oracle@rac1 s01]$ ll
　　total 2143268
　　-rw-r--r-- 1 oracle oinstall 328253440 Jun 21 02:38 10201_clusterware_linux_x86_64
　　-rw-r--r-- 1 oracle oinstall 668734007 Jun 21 02:39 10201_database_linux32.zip
　　-rw-r--r-- 1 oracle oinstall 1195551830 Jun 21 02:40 p6810189_10204_Linux-x86-64.zip
　　[oracle@rac1 s01]$ file 10201_clusterware_linux_x86_64
　　10201_clusterware_linux_x86_64: ASCII cpio archive (SVR4 with no CRC)
　　[oracle@rac1 s01]$ cpio -idvm < 10201_clusterware_linux_x86_64
　　宿主机器开启Xmanager - Passive
　　以oracle登录rac1
　　[oracle@rac1 ~]$ w
　　02:34:55 up 5 min, 2 users, load average: 0.04, 0.31, 0.17

　　USER TTY FROM LOGIN@>　　root pts/0 192.168.1.86 02:32 2:33 0.03s 0.03s -bash
　　oracle pts/2 192.168.1.86 02:33 0.00s 0.02s 0.01s w
　　[oracle@rac1 ~]$ export DISPLAY=192.168.1.86:0.0
　　root运行一个脚本
　　[root@rac1 ~]# /s01/clusterware/rootpre/rootpre.sh
　　No OraCM running
　　修改oel发行版本如果不修改需要在runinstaller 后面添加./runInstaller -ignoreSysPrereqs
　　[rac1]
　　[root@rac1 ~]# cat /etc/redhat-release

　　Red Hat Enterprise Linux Server>　　[root@rac1 ~]#
　　[rac2]
　　[root@rac1 ~]# cat /etc/redhat-release

　　Red Hat Enterprise Linux Server>　　oracle用户执行
　　[oracle@rac1 clusterware]$ pwd
　　/s01/clusterware
　　[oracle@rac1 clusterware]$ ./runInstaller
　　oracle inventory目录为
　　/s01/oracle/oraInventory
　　crs目录为
　　/s01/oracle/product/10.2.0/crs
　　检测软件要求

　　指定安装节点

　　修改公私有网卡接口

　　填入裸设备地址

　　指定选举盘位置[生产环境建议用3个]

　　汇总

　　安装传输到rac2节点

　　rac1和rac2上root用户执行脚本

　　[
　　root@rac1 ~]# /s01/oracle/oraInventory/orainstRoot.sh
　　Changing permissions of /s01/oracle/oraInventory to 770.
　　Changing groupname of /s01/oracle/oraInventory to oinstall.
　　The execution of the script is complete
　　[root@rac1 ~]#
　　[root@rac1 ~]# /s01/oracle/product/10.2.0/crs/root.sh
　　WARNING: directory '/s01/oracle/product/10.2.0' is not owned by root
　　WARNING: directory '/s01/oracle/product' is not owned by root
　　WARNING: directory '/s01/oracle' is not owned by root
　　WARNING: directory '/s01' is not owned by root
　　Checking to see if Oracle CRS stack is already configured
　　/etc/oracle does not exist. Creating it now.
　　Setting the permissions on OCR backup directory
　　Setting up NS directories
　　Oracle Cluster Registry configuration upgraded successfully
　　WARNING: directory '/s01/oracle/product/10.2.0' is not owned by root
　　WARNING: directory '/s01/oracle/product' is not owned by root
　　WARNING: directory '/s01/oracle' is not owned by root
　　WARNING: directory '/s01' is not owned by root
　　Successfully accumulated necessary OCR keys.
　　Using ports: CSS=49895 CRS=49896 EVMC=49898 and EVMR=49897.
　　node &lt;nodenumber>:
　　node 1: rac1 rac1-priv rac1
　　node 2: rac2 rac2-priv rac2
　　Creating OCR keys for user 'root', privgrp 'root'..
　　Operation successful.
　　Now formatting voting device: /dev/raw/raw2
　　Format of 1 voting devices complete.
　　Startup will be queued to init within 90 seconds.
　　Adding daemons to inittab
　　Expecting the CRS daemons to be up within 600 seconds.
　　CSS is active on these nodes.
　　rac1
　　CSS is inactive on these nodes.
　　rac2
　　Local node checking complete.
　　Run root.sh on remaining nodes to start CRS daemons.
将crs 加入path环境变量　　[oracle@rac1 bin]$ cat ~/.bash_profile |grep -v &quot;#&quot;
　　if [ -f ~/.bashrc ]; then
　　. ~/.bashrc
　　fi
　　PATH=$PATH:$HOME/bin:/s01/oracle/product/10.2.0/crs/bin:.
　　export PATH
　　在rac2上执行以上操作
　　检查crs状态
　　[oracle@rac2 ~]$ crsctl check crs
　　CSS appears healthy
　　CRS appears healthy
　　EVM appears healthy
　　[oracle@rac1 ~]$ crsctl check crs
　　CSS appears healthy
　　CRS appears healthy
　　EVM appears healthy
　　升级crs
　　[oracle@rac1 10204]$ pwd
　　/s01/10204
　　[oracle@rac1 10204]$ unzip ../p6810189_10204_Linux-x86-64.zip
　　[oracle@rac1 10204]$ cd Disk1/
　　选择crs安装路径(默认路径不正确)
　　指定物理节点
　　汇总
　　升级完毕
　　停止crs运行脚本[这一步切记不能省略,否则patch没有打上]
　　[root@rac1 ~]# /s01/oracle/product/10.2.0/crs/bin/crsctl stop crs
　　Stopping resources.
　　Successfully stopped CRS resources
　　Stopping CSSD.
　　Shutting down CSS daemon.
　　Shutdown request successfully issued.
　　[root@rac1 ~]# /s01/oracle/product/10.2.0/crs/install/root102.sh
　　Creating pre-patch directory for saving pre-patch clusterware files
　　Completed patching clusterware files to /s01/oracle/product/10.2.0/crs
　　Relinking some shared libraries.
　　Relinking of patched files is complete.
　　WARNING: directory '/s01/oracle/product/10.2.0' is not owned by root
　　WARNING: directory '/s01/oracle/product' is not owned by root
　　WARNING: directory '/s01/oracle' is not owned by root
　　WARNING: directory '/s01' is not owned by root
　　Preparing to recopy patched init and RC scripts.
　　Recopying init and RC scripts.
　　Startup will be queued to init within 30 seconds.
　　Starting up the CRS daemons.
　　Waiting for the patched CRS daemons to start.
　　This may take a while on some systems.
　　.
　　10204 patch successfully applied.
　　clscfg: EXISTING configuration version 3 detected.

　　clscfg: version 3 is 10G>　　Successfully accumulated necessary OCR keys.
　　Using ports: CSS=49895 CRS=49896 EVMC=49898 and EVMR=49897.
　　node :
　　node 1: rac1 rac1-priv rac1
　　Creating OCR keys for user 'root', privgrp 'root'..
　　Operation successful.
　　clscfg -upgrade completed successfully
　　检查crs版本
　　[oracle@rac1 ~]$ crsctl query crs activeversion
　　CRS active version on the cluster is [10.2.0.4.0]
　　[oracle@rac2 ~]$ crsctl query crs activeversion
　　CRS active version on the cluster is [10.2.0.4.0]
　　创建VIP GSD服务
　　在RAC1上运行vipca命令[需要xwindow]
　　[root@rac1 ~]# w
　　04:45:08 up 1:17, 3 users, load average: 0.03, 0.07, 0.23

　　USER TTY FROM LOGIN@>　　oracle pts/1 192.168.1.86 04:37 1:55 0.02s 0.02s -bash
　　oracle pts/2 192.168.1.86 04:19 19.00s 0.15s 0.15s -bash
　　root pts/3 192.168.1.86 04:25 0.00s 0.03s 0.00s w
　　[root@rac1 ~]# export DISPLAY=192.168.1.86:0.0
　　[root@rac1 ~]# /s01/oracle/product/10.2.0/crs/bin/vipca

　　现在虚拟IP应该起来了,

　　看一下
　　[root@rac1 ~]# ip a
　　1: lo:  mtu 16436 qdisc noqueue
　　link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
　　inet 127.0.0.1/8 scope host lo
　　2: eth0:  mtu 1500 qdisc pfifo_fast qlen 1000
　　link/ether 08:00:27:35:86:84 brd ff:ff:ff:ff:ff:ff
　　inet 192.168.1.171/24 brd 192.168.1.255 scope global eth0
　　inet 192.168.1.172/24 brd 192.168.1.255 scope global secondary eth0:1
　　3: eth1:  mtu 1500 qdisc pfifo_fast qlen 1000
　　link/ether 08:00:27:6b:9f:ea brd ff:ff:ff:ff:ff:ff
　　inet 172.168.1.191/24 brd 172.168.1.255 scope global eth1
　　[root@rac2 ~]# ip a
　　1: lo:  mtu 16436 qdisc noqueue
　　link/loopback 00:00:00:00:00:00 brd 00:00:00:00:00:00
　　inet 127.0.0.1/8 scope host lo
　　2: eth0:  mtu 1500 qdisc pfifo_fast qlen 1000
　　link/ether 08:00:27:06:76:9a brd ff:ff:ff:ff:ff:ff
　　inet 192.168.1.173/24 brd 192.168.1.255 scope global eth0
　　inet 192.168.1.174/24 brd 192.168.1.255 scope global secondary eth0:1
　　3: eth1:  mtu 1500 qdisc pfifo_fast qlen 1000
　　link/ether 08:00:27:ed:8d:cf brd ff:ff:ff:ff:ff:ff
　　inet 172.168.1.192/24 brd 172.168.1.255 scope global eth1
　　至此crs安装升级完毕
　　下面安装数据库10.2.1和升级数据库到10.2.4
　　gzip -d ../10201_database_linux_x86_64.cpio.gz
　　cpio -idvm < /10201_database_linux_x86_64.cpio
　　解压之后执行安装程序,
　　指定dbhome

　　选择安装节点

　　安装数据库软件

　　RAC1 和RAC2上都运行
　　[root@rac1 ~]# /s01/oracle/product/10.2.0/db_1/root.sh
　　Running Oracle10 root.sh script...
　　The following environment variables are set as:
　　ORACLE_OWNER= oracle
　　ORACLE_HOME= /s01/oracle/product/10.2.0/db_1
　　Enter the full pathname of the local bin directory: [/usr/local/bin]:
　　Copying dbhome to /usr/local/bin ...
　　Copying oraenv to /usr/local/bin ...
　　Copying coraenv to /usr/local/bin ...
　　Creating /etc/oratab file...
　　Entries will be added to the /etc/oratab file as needed by
　　Database Configuration Assistant when a database is created
　　Finished running generic part of root.sh script.
　　Now product-specific root actions will be performed.
　　写入配置文件
　　[oracle@rac1 Disk1]$ cat ~/.bash_profile
　　# .bash_profile
　　# Get the aliases and functions
　　if [ -f ~/.bashrc ]; then
　　. ~/.bashrc
　　fi
　　# User specific environment and startup programs
　　PATH=$PATH:$HOME/bin:/s01/oracle/product/10.2.0/crs/bin:.
　　export PATH
　　ORA_CRS_HOME=/s01/oracle/product/10.2.0/crs
　　export ORA_CRS_HOME
　　export ORACLE_HOME=/s01/oracle/product/10.2.0/db_1
　　export ORACLE_SID=stark2[rac2上]
　　export ORACLE_SID=stark1[rac1上]
　　export PATH=$PATH:$ORACLE_HOME/bin:.
　　安装数据库补丁
　　Runinstaller
　　确定安装路径oracle_home

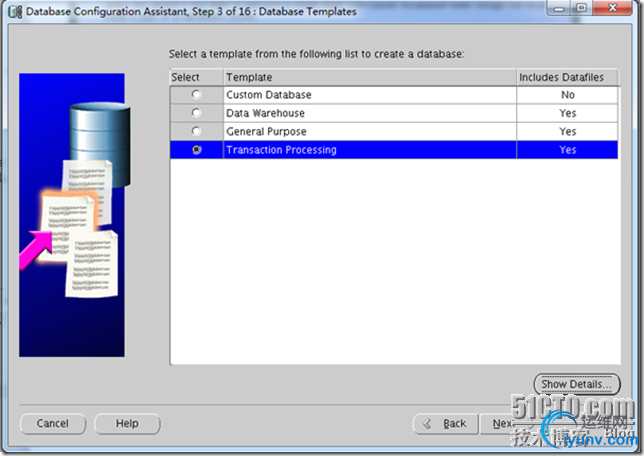

　　安装数据库选型

　　使用asm存储创建asm密码

　　会提示1521不存在是否创建
　　使用创建的asm,不一定能全部找到,选择change disk discovey path指定络设备路径

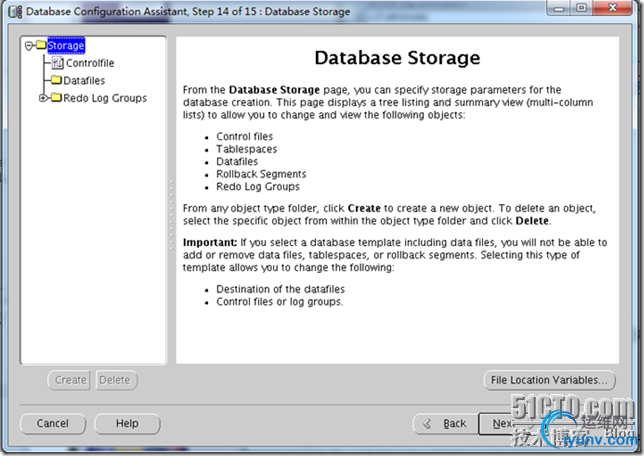

　　指定数据存储区域

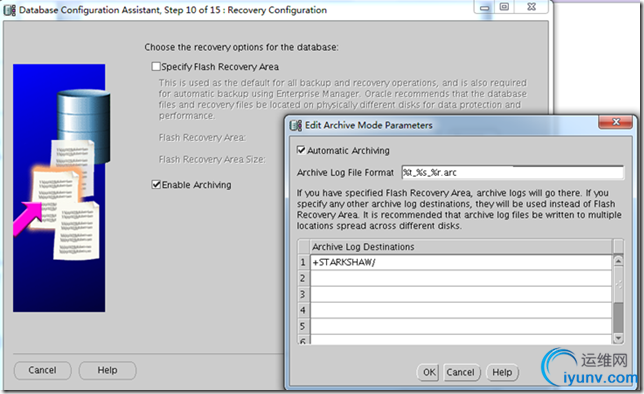

　　修改归档日志格式

　　选择sample schgemas
　　跳过管理service 管理
　　Process 300
　　字符集使用推荐的uft32-8
　　连接模式为独享

　　汇总

　　创建数据库完成并且已经启动实例
　　然后执行一下命令查看是否都起来了.
　　[oracle@rac1 onlinelog]$ crs_stat -t -v
　　shell-init: error retrieving current directory: getcwd: cannot access parent directories: No such file or directory
　　Name Type R/RA F/FT Target State Host
　　----------------------------------------------------------------------
　　ora....SM1.asm application 0/5 0/0 ONLINE ONLINE rac1
　　ora....C1.lsnr application 0/5 0/0 ONLINE ONLINE rac1
　　ora.rac1.gsd application 0/5 0/0 ONLINE ONLINE rac1
　　ora.rac1.ons application 0/3 0/0 ONLINE ONLINE rac1
　　ora.rac1.vip application 0/0 0/0 ONLINE ONLINE rac1
　　ora....SM2.asm application 0/5 0/0 ONLINE ONLINE rac2
　　ora....C2.lsnr application 0/5 0/0 ONLINE ONLINE rac2
　　ora.rac2.gsd application 0/5 0/0 ONLINE ONLINE rac2
　　ora.rac2.ons application 0/3 0/0 ONLINE ONLINE rac2
　　ora.rac2.vip application 0/0 0/0 ONLINE ONLINE rac2
　　ora.stark.db application 0/0 0/1 ONLINE ONLINE rac1
　　ora....k1.inst application 0/5 0/0 ONLINE ONLINE rac1
　　ora....k2.inst application 0/5 0/0 ONLINE ONLINE rac2
　　测试rac
　　[oracle@rac1 ~]$ sqlplus /'as sysdba'

　　SQL*Plus:>　　Copyright (c) 1982, 2007, Oracle. All Rights Reserved.
　　Connected to:

　　Oracle Database 10g Enterprise Edition>　　With the Partitioning, Real Application Clusters, OLAP, Data Mining
　　and Real Application Testing options
　　SQL> shutdown immediate;
　　Database closed.
　　Database dismounted.
　　ORACLE instance shut down.
　　SQL&gt;
　　[oracle@rac2 ~]$ crs_stat -t -v
　　Name Type R/RA F/FT Target State Host
　　----------------------------------------------------------------------
　　ora....SM1.asm application 0/5 0/0 ONLINE ONLINE rac1
　　ora....C1.lsnr application 0/5 0/0 ONLINE ONLINE rac1
　　ora.rac1.gsd application 0/5 0/0 ONLINE ONLINE rac1
　　ora.rac1.ons application 0/3 0/0 ONLINE ONLINE rac1
　　ora.rac1.vip application 0/0 0/0 ONLINE ONLINE rac1
　　ora....SM2.asm application 0/5 0/0 ONLINE ONLINE rac2
　　ora....C2.lsnr application 0/5 0/0 ONLINE ONLINE rac2
　　ora.rac2.gsd application 0/5 0/0 ONLINE ONLINE rac2
　　ora.rac2.ons application 0/3 0/0 ONLINE ONLINE rac2
　　ora.rac2.vip application 0/0 0/0 ONLINE ONLINE rac2
　　ora.stark.db application 0/0 0/1 ONLINE ONLINE rac1
　　ora....k1.inst application 0/5 0/0 OFFLINE OFFLINE
　　ora....k2.inst application 0/5 0/0 ONLINE ONLINE rac2
