Ambari2.6安装部署Hadoop2.7

liuhongyu

　　Apache Ambari是一种基于Web的工具，支持Apache Hadoop集群的供应、管理和监控。Ambari已支持大多数Hadoop组件，包括HDFS、MapReduce、Hive、Pig、 Hbase、Zookeper、Sqoop和Hcatalog等。Apache Ambari 支持HDFS、MapReduce、Hive、Pig、Hbase、Zookeper、Sqoop和Hcatalog等的集中管理。也是5个顶级hadoop管理工具之一。Ambari能够安装安全的（基于Kerberos）Hadoop集群，以此实现了对Hadoop 安全的支持，提供了基于角色的用户认证、授权和审计功能，并为用户管理集成了LDAP和Active Directory。
　　之所以选择Ambari部署hadoop而不是CDH，是因为CDH最新版本只支持Hadoop2.6.X，Ambari最新版本支持Hadoop2.7.3。
　　一、安装部署参考官网http://ambari.apache.org/ 及简书https://www.jianshu.com/p/73f9670f71cf ，主要分以下几步：
　　1、节点互信
　　2、关闭防火墙、selinux
　　3、安装ambari-server
　　4、设置ambari-server
　　5、图形界面部署hadoop各组件

　　二、如下是新增节点步骤：
　　1、注意密钥为master1节点  prod-hadoop-master-01 /root/.ssh/d_rsa文件

　　2、注册节点

　　3、安装服务也可添加后再安装

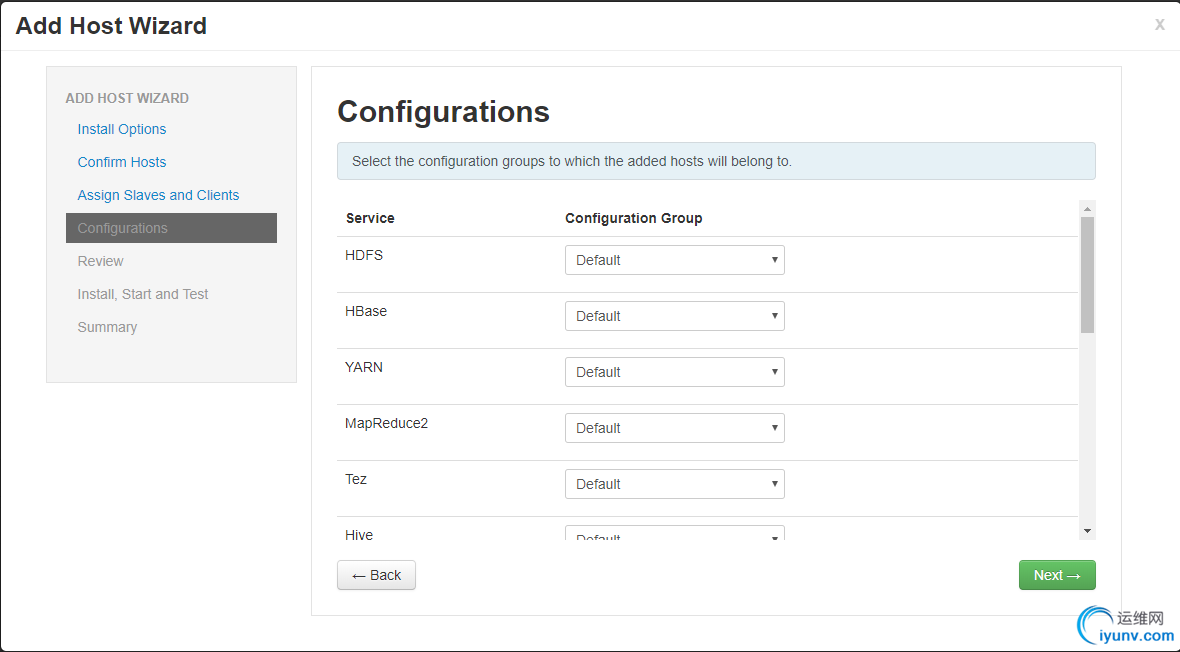

　　4、配置默认即可

　　5、确认下没有变更就开始部署

　　6、安装进度完成即可，也可以登陆首页等待后续安装完成

　　三、补充Ambari没有集成组件安装：
　　1、解决ambari-service、ambari-agent默认安装数据目录在/下
　　ambari-agent stop
　　mv /var/lib/ambari-agent /data/disk1/
　　ln -s /data/disk1/ambari-agent /var/lib/ambari-agent
　　mv /usr/hdp /data/disk1/
　　ln -s /data/disk1/hdp/ /usr/hdp
　　ambari-agent start
　　2、ambari与presto整合
　　参考
　　https://www.jianshu.com/p/0b5f52a959d5
　　https://github.com/prestodb/ambari-presto-service/releases
　　https://github.com/prestodb/ambari-presto-service/releases/download/v1.2/ambari-presto-1.2.tar.gz
　　[root@prod-hadoop-master-01 ~]# tar zxvf ambari-presto-1.2.tar.gz -C /var/lib/ambari-server/resources/stacks/HDP/2.6/services/
　　ambari-presto-1.2/
　　ambari-presto-1.2/configuration/
　　ambari-presto-1.2/configuration/connectors.properties.xml
　　ambari-presto-1.2/configuration/jvm.config.xml
　　ambari-presto-1.2/configuration/config.properties.xml
　　ambari-presto-1.2/configuration/node.properties.xml
　　ambari-presto-1.2/HISTORY.rst
　　ambari-presto-1.2/themes/
　　ambari-presto-1.2/themes/theme.json
　　ambari-presto-1.2/Makefile
　　ambari-presto-1.2/setup.py
　　ambari-presto-1.2/MANIFEST.in
　　ambari-presto-1.2/PKG-INFO
　　ambari-presto-1.2/package/
　　ambari-presto-1.2/package/scripts/
　　ambari-presto-1.2/package/scripts/presto_cli.py
　　ambari-presto-1.2/package/scripts/presto_worker.py
　　ambari-presto-1.2/package/scripts/presto_coordinator.py
　　ambari-presto-1.2/package/scripts/init.py
　　ambari-presto-1.2/package/scripts/params.py
　　ambari-presto-1.2/package/scripts/download.ini
　　ambari-presto-1.2/package/scripts/common.py
　　ambari-presto-1.2/package/scripts/presto_client.py
　　ambari-presto-1.2/setup.cfg
　　ambari-presto-1.2/ambari_presto.egg-info/
　　ambari-presto-1.2/ambari_presto.egg-info/dependency_links.txt
　　ambari-presto-1.2/ambari_presto.egg-info/not-zip-safe
　　ambari-presto-1.2/ambari_presto.egg-info/PKG-INFO
　　ambari-presto-1.2/ambari_presto.egg-info/top_level.txt
　　ambari-presto-1.2/ambari_presto.egg-info/SOURCES.txt
　　ambari-presto-1.2/LICENSE
　　ambari-presto-1.2/README.md
　　ambari-presto-1.2/metainfo.xml
　　ambari-presto-1.2/requirements.txt
　　[root@prod-hadoop-master-01 ~]# cd /var/lib/ambari-server/resources/stacks/HDP/2.6/services/
　　[root@prod-hadoop-master-01 services]# ls
　　ACCUMULO ATLAS FALCON HBASE HIVE KERBEROS MAHOUT PIG RANGER_KMS SPARK SQOOP stack_advisor.pyc STORM TEZ ZEPPELIN
　　ambari-presto-1.2 DRUID FLUME HDFS KAFKA KNOX OOZIE RANGER SLIDER SPARK2 stack_advisor.py stack_advisor.pyo SUPERSET YARN ZOOKEEPER
　　[root@prod-hadoop-master-01 services]# mv ambari-presto-1.2/ PRESTO
　　[root@prod-hadoop-master-01 services]# chmod -R +x PRESTO/*
　　[root@prod-hadoop-master-01 services]# ambari-server restart
　　平台上添加presto服务器，一个控制节点，两个worker节点
　　3、安装kylin组件
　　https://blog.csdn.net/vivismilecs/article/details/72763665
　　下载安装
　　tar -zxvf apache-kylin-2.3.1-hbase1x-bin.tar.gz -C /hadoop/
　　cd /hadoop/
　　chown -R hdfs:hadoop kylin/
　　vim /etc/profile
　　source /etc/profile
　　echo $KYLIN_HOME
　　/hadoop/kylin
　　切换用户检查环境是否正确安装
　　su hdfs
　　hive（进入hive，quit;退出）
　　hbase shell（进入hbase shell，ctrl+c结束）
　　[hdfs@prod-hadoop-data-01 kylin]$ bin/check-env.sh
　　Retrieving hadoop conf dir...
　　KYLIN_HOME is set to /hadoop/kylin
　　hdfs is not in the sudoers file. This incident will be reported.
　　Failed to create hdfs:///kylin/spark-history. Please make sure the user has right to access hdfs:///kylin/spark-history
　　排错
　　[hdfs@prod-hadoop-data-01 kylin]$ exit
　　[root@prod-hadoop-data-01 hadoop]# vim /etc/sudoers.d/waagent
　　检测
　　[hdfs@prod-hadoop-data-01 kylin]$ bin/check-env.sh
　　Retrieving hadoop conf dir...
　　KYLIN_HOME is set to /hadoop/kylin
　　启动
　　[hdfs@prod-hadoop-data-01 kylin]$ bin/kylin.sh start
　　Retrieving hadoop conf dir...
　　KYLIN_HOME is set to /hadoop/kylin
　　Retrieving hive dependency...
　　Retrieving hbase dependency...
　　Retrieving hadoop conf dir...
　　Retrieving kafka dependency...
　　Retrieving Spark dependency...
　　Start to check whether we need to migrate acl tables
　　Retrieving hadoop conf dir...
　　KYLIN_HOME is set to /hadoop/kylin
　　Retrieving hive dependency...
　　Retrieving hbase dependency...
　　Retrieving hadoop conf dir...
　　Retrieving kafka dependency...
　　Retrieving Spark dependency...

　　SLF4J:>　　SLF4J: Found binding in [jar:file:/hadoop/apache-kylin-2.3.1-bin/tool/kylin-tool-2.3.1.jar!/org/slf4j/impl/StaticLoggerBinder.class]
　　SLF4J: Found binding in [jar:file:/data/disk1/hdp/2.6.5.0-292/hadoop/lib/slf4j-log4j12-1.7.10.jar!/org/slf4j/impl/StaticLoggerBinder.class]
　　SLF4J: Found binding in [jar:file:/hadoop/apache-kylin-2.3.1-bin/spark/jars/slf4j-log4j12-1.7.16.jar!/org/slf4j/impl/StaticLoggerBinder.class]
　　SLF4J: See http://www.slf4j.org/codes.html#multiple_bindings for an explanation.
　　SLF4J: Actual binding is of type [org.slf4j.impl.Log4jLoggerFactory]
　　2018-05-24 14:23:21,974 INFO [main] common.KylinConfig:319 : Loading kylin-defaults.properties from file:/hadoop/apache-kylin-2.3.1-bin/tool/kylin-tool-2.3.1.jar!/kylin-defaults.properties
　　2018-05-24 14:23:22,016 DEBUG [main] common.KylinConfig:278 : KYLIN_CONF property was not set, will seek KYLIN_HOME env variable
　　2018-05-24 14:23:22,019 INFO [main] common.KylinConfig:99 : Initialized a new KylinConfig from getInstanceFromEnv : 494317290
　　2018-05-24 14:23:22,120 INFO [main] persistence.ResourceStore:86 : Using metadata url kylin_metadata@hbase for resource store
　　2018-05-24 14:23:24,034 DEBUG [main] hbase.HBaseConnection:181 : Using the working dir FS for HBase: hdfs://prod-hadoop-master-01.hadoop:8020
　　2018-05-24 14:23:24,034 INFO [main] hbase.HBaseConnection:258 : connection is null or closed, creating a new one

　　2018-05-24 14:23:24,168 INFO [main] zookeeper.RecoverableZooKeeper:120 : Process>　　2018-05-24 14:23:24,176 INFO [main] zookeeper.ZooKeeper:100 : Client environment:zookeeper.version=3.4.6-292--1, built on 05/11/2018 07:09 GMT
　　2018-05-24 14:23:24,176 INFO [main] zookeeper.ZooKeeper:100 : Client environment:host.name=prod-hadoop-data-01.hadoop
　　2018-05-24 14:23:24,176 INFO [main] zookeeper.ZooKeeper:100 : Client environment:java.version=1.8.0_91
　　2018-05-24 14:23:24,177 INFO [main] zookeeper.ZooKeeper:100 : Client environment:java.vendor=Oracle Corporation
　　2018-05-24 14:23:24,177 INFO [main] zookeeper.ZooKeeper:100 : Client environment:java.home=/usr/local/java
　　2018-05-24 14:23:24,182 INFO [main] zookeeper.ZooKeeper:100 : Client environment:java.class.path=/hadoop/kylin/tool/kylin-tool-2.3.1.jar:1.8.1.jar:/hadoop/kylin/spark/jars/hadoop-mapreduce-client-jobclient-2.7.3.jar:/hadoop/kylin/spark/jars/chill-java-0.8.0.jar:jar:/hadoop/kylin/spark/jars/xercesImpl-2.9.1.jar:/hadoop/kylin/spark/jars/netty-3.8.0.Final.jar:/usr/hdp/current/ext/hbase/*
　　2018-05-24 14:23:24,191 INFO [main] zookeeper.ZooKeeper:100 : Client environment:java.library.path=:/usr/hdp/2.6.5.0-292/hadoop/lib/native/Linux-amd64-64:/usr/hdp/2.6.5.0-292/hadoop/lib/native/Linux-amd64-64:/data/disk1/hdp/2.6.5.0-292/hadoop/lib/native
　　2018-05-24 14:23:24,191 INFO [main] zookeeper.ZooKeeper:100 : Client environment:java.io.tmpdir=/tmp
　　2018-05-24 14:23:24,191 INFO [main] zookeeper.ZooKeeper:100 : Client environment:java.compiler=
　　2018-05-24 14:23:24,193 INFO [main] zookeeper.ZooKeeper:100 : Client environment:os.name=Linux
　　2018-05-24 14:23:24,193 INFO [main] zookeeper.ZooKeeper:100 : Client environment:os.arch=amd64
　　2018-05-24 14:23:24,193 INFO [main] zookeeper.ZooKeeper:100 : Client environment:os.version=2.6.32-696.18.7.el6.x86_64
　　2018-05-24 14:23:24,193 INFO [main] zookeeper.ZooKeeper:100 : Client environment:user.name=hdfs
　　2018-05-24 14:23:24,194 INFO [main] zookeeper.ZooKeeper:100 : Client environment:user.home=/home/hdfs
　　2018-05-24 14:23:24,194 INFO [main] zookeeper.ZooKeeper:100 : Client environment:user.dir=/hadoop/apache-kylin-2.3.1-bin
　　2018-05-24 14:23:24,195 INFO [main] zookeeper.ZooKeeper:438 : Initiating client connection, connectString=prod-hadoop-master-01.hadoop:2181,prod-hadoop-master-02.hadoop:2181,prod-hadoop-data-01.hadoop:2181 sessionTimeout=90000 watcher=org.apache.hadoop.hbase.zookeeper.PendingWatcher@66b72664
　　2018-05-24 14:23:24,237 INFO [main-SendThread(prod-hadoop-data-01.hadoop:2181)] zookeeper.ClientCnxn:1019 : Opening socket connection to server prod-hadoop-data-01.hadoop/172.20.3.6:2181. Will not attempt to authenticate using SASL (unknown error)
　　2018-05-24 14:23:24,246 INFO [main-SendThread(prod-hadoop-data-01.hadoop:2181)] zookeeper.ClientCnxn:864 : Socket connection established, initiating session, client: /172.20.3.6:50746, server: prod-hadoop-data-01.hadoop/172.20.3.6:2181
　　2018-05-24 14:23:24,256 INFO [main-SendThread(prod-hadoop-data-01.hadoop:2181)] zookeeper.ClientCnxn:1279 : Session establishment complete on server prod-hadoop-data-01.hadoop/172.20.3.6:2181, sessionid = 0x163882326e1003b, negotiated timeout = 60000
　　2018-05-24 14:23:24,892 DEBUG [main] hbase.HBaseConnection:181 : Using the working dir FS for HBase: hdfs://prod-hadoop-master-01.hadoop:8020
　　2018-05-24 14:23:24,944 INFO [main] imps.CuratorFrameworkImpl:224 : Starting
　　2018-05-24 14:23:24,947 INFO [main] zookeeper.ZooKeeper:438 : Initiating client connection, connectString=prod-hadoop-master-01.hadoop:2181,prod-hadoop-master-02.hadoop:2181,prod-hadoop-data-01.hadoop:2181 sessionTimeout=120000 watcher=org.apache.curator.ConnectionState@67207d8a
　　2018-05-24 14:23:24,950 INFO [main-SendThread(prod-hadoop-master-02.hadoop:2181)] zookeeper.ClientCnxn:1019 : Opening socket connection to server prod-hadoop-master-02.hadoop/172.20.3.5:2181. Will not attempt to authenticate using SASL (unknown error)
　　2018-05-24 14:23:24,951 INFO [main-SendThread(prod-hadoop-master-02.hadoop:2181)] zookeeper.ClientCnxn:864 : Socket connection established, initiating session, client: /172.20.3.6:60080, server: prod-hadoop-master-02.hadoop/172.20.3.5:2181
　　2018-05-24 14:23:24,952 DEBUG [main] util.ZookeeperDistributedLock:143 : 6616@prod-hadoop-data-01 trying to lock /kylin/kylin_metadata/create_htable/kylin_metadata/lock
　　2018-05-24 14:23:24,957 INFO [main-SendThread(prod-hadoop-master-02.hadoop:2181)] zookeeper.ClientCnxn:1279 : Session establishment complete on server prod-hadoop-master-02.hadoop/172.20.3.5:2181, sessionid = 0x3638801b4480045, negotiated timeout = 60000
　　2018-05-24 14:23:24,962 INFO [main-EventThread] state.ConnectionStateManager:228 : State change: CONNECTED
　　2018-05-24 14:23:25,031 INFO [main] util.ZookeeperDistributedLock:155 : 6616@prod-hadoop-data-01 acquired lock at /kylin/kylin_metadata/create_htable/kylin_metadata/lock
　　2018-05-24 14:23:25,036 DEBUG [main] hbase.HBaseConnection:337 : Creating HTable 'kylin_metadata'
　　2018-05-24 14:23:27,822 INFO [main] client.HBaseAdmin:789 : Created kylin_metadata
　　2018-05-24 14:23:27,823 DEBUG [main] hbase.HBaseConnection:350 : HTable 'kylin_metadata' created
　　2018-05-24 14:23:27,824 DEBUG [main] util.ZookeeperDistributedLock:223 : 6616@prod-hadoop-data-01 trying to unlock /kylin/kylin_metadata/create_htable/kylin_metadata/lock

　　2018-05-24 14:23:27,833 INFO [main] util.ZookeeperDistributedLock:234 : 6616@prod-hadoop-data-01>　　2018-05-24 14:23:28,105 DEBUG [main] hbase.HBaseConnection:181 : Using the working dir FS for HBase: hdfs://prod-hadoop-master-01.hadoop:8020
　　2018-05-24 14:23:28,105 INFO [main] hbase.HBaseConnection:258 : connection is null or closed, creating a new one

　　2018-05-24 14:23:28,106 INFO [main] zookeeper.RecoverableZooKeeper:120 : Process>　　2018-05-24 14:23:28,106 INFO [main] zookeeper.ZooKeeper:438 : Initiating client connection, connectString=prod-hadoop-master-01.hadoop:2181,prod-hadoop-master-02.hadoop:2181,prod-hadoop-data-01.hadoop:2181 sessionTimeout=90000 watcher=org.apache.hadoop.hbase.zookeeper.PendingWatcher@2822c6ff
　　2018-05-24 14:23:28,109 INFO [main-SendThread(prod-hadoop-data-01.hadoop:2181)] zookeeper.ClientCnxn:1019 : Opening socket connection to server prod-hadoop-data-01.hadoop/172.20.3.6:2181. Will not attempt to authenticate using SASL (unknown error)
　　2018-05-24 14:23:28,109 INFO [main-SendThread(prod-hadoop-data-01.hadoop:2181)] zookeeper.ClientCnxn:864 : Socket connection established, initiating session, client: /172.20.3.6:50760, server: prod-hadoop-data-01.hadoop/172.20.3.6:2181
　　2018-05-24 14:23:28,115 INFO [main-SendThread(prod-hadoop-data-01.hadoop:2181)] zookeeper.ClientCnxn:1279 : Session establishment complete on server prod-hadoop-data-01.hadoop/172.20.3.6:2181, sessionid = 0x163882326e1003c, negotiated timeout = 60000
　　2018-05-24 14:23:28,138 INFO [close-hbase-conn] hbase.HBaseConnection:137 : Closing HBase connections...
　　2018-05-24 14:23:28,144 INFO [close-hbase-conn] client.ConnectionManager$HConnectionImplementation:1703 : Closing zookeeper sessionid=0x163882326e1003c
　　2018-05-24 14:23:28,152 INFO [close-hbase-conn] zookeeper.ZooKeeper:684 : Session: 0x163882326e1003c closed
　　2018-05-24 14:23:28,152 INFO [main-EventThread] zookeeper.ClientCnxn:524 : EventThread shut down
　　2018-05-24 14:23:28,154 INFO [Thread-8] zookeeper.ZooKeeper:684 : Session: 0x3638801b4480045 closed
　　2018-05-24 14:23:28,154 INFO [main-EventThread] zookeeper.ClientCnxn:524 : EventThread shut down
　　2018-05-24 14:23:28,162 INFO [close-hbase-conn] client.ConnectionManager$HConnectionImplementation:2167 : Closing master protocol: MasterService
　　2018-05-24 14:23:28,163 INFO [close-hbase-conn] client.ConnectionManager$HConnectionImplementation:1703 : Closing zookeeper sessionid=0x163882326e1003b
　　2018-05-24 14:23:28,168 INFO [main-EventThread] zookeeper.ClientCnxn:524 : EventThread shut down
　　2018-05-24 14:23:28,169 INFO [close-hbase-conn] zookeeper.ZooKeeper:684 : Session: 0x163882326e1003b closed
　　A new Kylin instance is started by hdfs. To stop it, run 'kylin.sh stop'
　　Check the log at /hadoop/kylin/logs/kylin.log
　　Web UI is at http://:7070/kylin
