MYSQL主从同步+读写分离

w12dw

环境：CentOs 6.5（最小化安装）
关闭防火墙或添加对应规则，否则slave不能连接master，会导致同步失败

Mysql1:192.168.0.231                 Mysql2:192.168.0.232                    Mysql3:192.168.0.233


在Mysql1新建同步用户和新建一个数据库yfshare，在数据库里面新建表插入数据，以作标记：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17

mysql> select * from mytable; +------+------+------------+ | name | sex  | brithday   | +------+------+------------+ | aaa  | 1    | 1993-08-15 | +------+------+------------+ 1 row in set (0.00 sec) mysql> flush privileges; Query OK, 0 rows affected (0.00 sec) mysql> CREATE USER aaa@192.168.0.232 IDENTIFIED BY 'redhat'; Query OK, 0 rows affected (0.00 sec) mysql> GRANT REPLICATION SLAVE ON *.* TO aaa@192.168.0.232 IDENTIFIED BY 'redhat'; Query OK, 0 rows affected (0.00 sec) mysql> flush privileges; Query OK, 0 rows affected (0.00 sec) mysql> FLUSH TABLES WITH READ LOCK; Query OK, 0 rows affected (0.00 sec)

1 2 3 4 5 6 7

[iyunv@localhost ~]# mysqldump -u root -predhat yfshare >/root/yfshare.sql [iyunv@localhost ~]# ls yfshare.sql yfshare.sql [iyunv@localhost ~]# scp yfshare.sql root@192.168.0.232:/root/ mysql> unlock tables; Query OK, 0 rows affected (0.00 sec) [iyunv@localhost ~]# scp yfshare.sql

在mysql2上测试登录下这个用户（如果登不上看下是否被防火墙挡了在看my.cnf文件）：
看看my.cnf这两个地方：#skip-networking和#bind-address

1 2	[iyunv@localhost ~]# mysql -h192.168.0.231 -u aaa -predhat --port 3306 mysql>

在mysql2上新建数据库yfshare

1 2 3 4 5 6

[iyunv@localhost ~]# mysql -u root -predhat mysql> create database yfshare; Query OK, 1 row affected (0.00 sec) mysql> use yfshare; Database changed mysql> source yfshare.sql

配置mysql1的my.cnf文件

1 2 3 4 5 6 7 8 9 10

[iyunv@localhost ~]# head -n 42 /usr/local/mysql/etc/my.cnf |tail -n 4 server-id=1 log_bin=mysql-bin binlog-do-db=yfshare binlog-ignore-db=test,mysql [iyunv@localhost ~]# [iyunv@localhost ~]# /etc/init.d/mysqld restart Shutting down MySQL. SUCCESS! Starting MySQL.. SUCCESS! [iyunv@localhost ~]

查看mysql1状态：

1 2 3 4 5 6 7 8

mysql> show master status; +------------------+----------+--------------+------------------+ | File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | +------------------+----------+--------------+------------------+ | mysql-bin.000010 |     2625 | yfshare      | test,mysql       | +------------------+----------+--------------+------------------+ 1 row in set (0.00 sec) mysql>

配置mysql2的my.cnf文件：

1 2 3 4 5 6 7 8 9 10 11

[iyunv@localhost ~]# head -n 44 /usr/local/mysql/etc/my.cnf |tail -n 6 server-id=2 log_bin=mysql-bin binlog-do-db=yfshare binlog-ignore-db=test,mysql log_slave_updates=1                           //开启级联功能 [iyunv@localhost ~]# [iyunv@localhost ~]# /etc/init.d/mysqld restart Shutting down MySQL. SUCCESS! Starting MySQL.. SUCCESS! [iyunv@localhost ~]#

进入mysql2控制台

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58

mysql> show variables like '%server_id%'; +---------------+-------+ | Variable_name | Value | +---------------+-------+ | server_id     | 2     | +---------------+-------+ 1 row in set (0.01 sec) mysql> mysql> slave stop; Query OK, 0 rows affected, 1 warning (0.00 sec) mysql> change master to master_host='192.168.0.231',master_user='aaa',master_password='redhat',master_log_file='mysql-bin.000010' ,master_log_pos=2625; Query OK, 0 rows affected (0.04 sec) mysql> slave start; Query OK, 0 rows affected (0.00 sec) mysql> show slave status\G *************************** 1. row ***************************                Slave_IO_State: Waiting for master to send event                   Master_Host: 192.168.0.231                   Master_User: aaa                   Master_Port: 3306                 Connect_Retry: 60               Master_Log_File: mysql-bin.000010           Read_Master_Log_Pos: 2625                Relay_Log_File: localhost-relay-bin.000004                 Relay_Log_Pos: 649         Relay_Master_Log_File: mysql-bin.000010              Slave_IO_Running: Yes             Slave_SQL_Running: Yes               Replicate_Do_DB:           Replicate_Ignore_DB:            Replicate_Do_Table:        Replicate_Ignore_Table:       Replicate_Wild_Do_Table:   Replicate_Wild_Ignore_Table:                    Last_Errno: 0                    Last_Error:                  Skip_Counter: 0           Exec_Master_Log_Pos: 2625               Relay_Log_Space: 809               Until_Condition: None                Until_Log_File:                 Until_Log_Pos: 0            Master_SSL_Allowed: No            Master_SSL_CA_File:            Master_SSL_CA_Path:               Master_SSL_Cert:             Master_SSL_Cipher:                Master_SSL_Key:         Seconds_Behind_Master: 0 Master_SSL_Verify_Server_Cert: No                 Last_IO_Errno: 0                 Last_IO_Error:                Last_SQL_Errno: 0                Last_SQL_Error:   Replicate_Ignore_Server_Ids:              Master_Server_Id: 1 1 row in set (0.00 sec) mysql>

在mysql2上配置：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22

mysql> flush privileges; Query OK, 0 rows affected (0.00 sec) mysql> CREATE USER 'bbb'@'192.168.0.232' IDENTIFIED BY 'redhat'; Query OK, 0 rows affected (0.00 sec) mysql> GRANT REPLICATION SLAVE ON *.* TO 'bbb'@'192.168.0.232' IDENTIFIED BY 'redhat'; Query OK, 0 rows affected (0.00 sec) mysql> flush privileges; Query OK, 0 rows affected (0.00 sec) mysql> FLUSH TABLES WITH READ LOCK; Query OK, 0 rows affected (0.00 sec) [iyunv@localhost ~]# mysqldump -u root -predhat yfshare >/root/yfshare.sql [iyunv@localhost ~]# scp yfshare.sql root@192.168.0.232:/root/ mysql> unlock tables; Query OK, 0 rows affected (0.00 sec) mysql> show master status; +------------------+----------+--------------+------------------+ | File             | Position | Binlog_Do_DB | Binlog_Ignore_DB | +------------------+----------+--------------+------------------+ | mysql-bin.000029 |      503 | yfshare      | test,mysql       | +------------------+----------+--------------+------------------+ 1 row in set (0.00 sec) mysql>

在mysql3上配置：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19

[iyunv@localhost ~]# head -n 42 /usr/local/mysql/etc/my.cnf |tail -n 4 server-id=3 log_bin=mysql-bin binlog-do-db=yfshare binlog-ignore-db=test,mysql [iyunv@localhost ~]# [iyunv@localhost ~]# /etc/init.d/mysqld restart Shutting down MySQL. SUCCESS! Starting MySQL.. SUCCESS! [iyunv@localhost ~]#

在mysql3上测试登录下这个用户（如果登不上看下是否被防火墙挡了在看my.cnf文件）：
看看my.cnf这两个地方：#skip-networking和#bind-address

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52

[iyunv@localhost ~]# mysql -h192.168.0.232 -u bbb -predhat --port 3306 mysql> mysql> slave stop; Query OK, 0 rows affected, 1 warning (0.00 sec) mysql> change master to master_host='192.168.0.232',master_user='bbb',master_password='redhat',master_log_file='mysql-bin.000029' ,master_log_pos=503; Query OK, 0 rows affected (0.04 sec) mysql> slave start; Query OK, 0 rows affected (0.00 sec) mysql> show slave status\G *************************** 1. row ***************************                Slave_IO_State: Waiting for master to send event                   Master_Host: 192.168.0.232                   Master_User: bbb                   Master_Port: 3306                 Connect_Retry: 60               Master_Log_File: mysql-bin.000029           Read_Master_Log_Pos: 503                Relay_Log_File: localhost-relay-bin.000006                 Relay_Log_Pos: 649         Relay_Master_Log_File: mysql-bin.000029              Slave_IO_Running: Yes             Slave_SQL_Running: Yes               Replicate_Do_DB:           Replicate_Ignore_DB:            Replicate_Do_Table:        Replicate_Ignore_Table:       Replicate_Wild_Do_Table:   Replicate_Wild_Ignore_Table:                    Last_Errno: 0                    Last_Error:                  Skip_Counter: 0           Exec_Master_Log_Pos: 503               Relay_Log_Space: 809               Until_Condition: None                Until_Log_File:                 Until_Log_Pos: 0            Master_SSL_Allowed: No            Master_SSL_CA_File:            Master_SSL_CA_Path:               Master_SSL_Cert:             Master_SSL_Cipher:                Master_SSL_Key:         Seconds_Behind_Master: 0 Master_SSL_Verify_Server_Cert: No                 Last_IO_Errno: 0                 Last_IO_Error:                Last_SQL_Errno: 0                Last_SQL_Error:   Replicate_Ignore_Server_Ids:              Master_Server_Id: 2 1 row in set (0.00 sec) mysql>

这样配置了后以后主服务器只要有新数据写入，从服务器就会自动同步

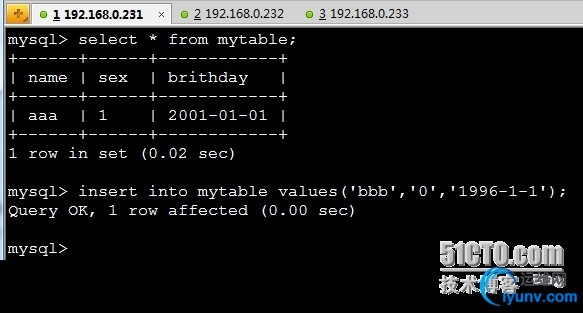

测试下：

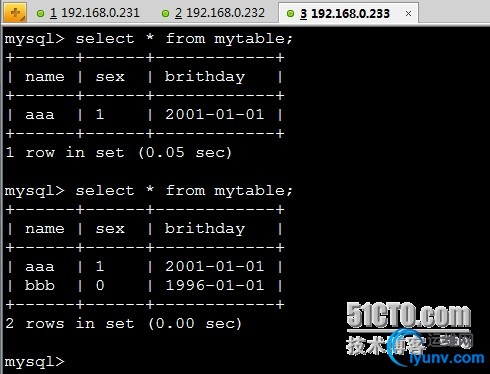

在mysql2上不做任何数据操作：（mysql会自动同步）

mysq3也是：

Question：
Last_IO_Errno: 1593
                Last_IO_Error: Fatal error: The slave I/O thread stops because master and slave have equal MySQL server ids; these ids must be different for replication to work (or the --replicate-same-server-id option must be used on slave but this does not always make sense; please check the manual before using it).
               Last_SQL_Errno: 0
如果报这个错，是server-id与slave-id冲突了（通过这个命令查看

show variables like 'server_id';）

mysql> show variables like 'server_id';
+---------------+-------+
| Variable_name | Value |
+---------------+-------+
| server_id     | 2     |
+---------------+-------+
1 row in set (0.00 sec)
mysql>
在/usr/local/mysql/etc/my.cnf里面默认就定义了一个server-id=1把这个值改下就行了


搭建Mysql读写分离：（未测试）

关闭防火墙或添加对应规则，否则slave不能连接master，会导致同步失败

数据库Master主服务器：192.168.0.231
数据库从服务器：192.168.0.232
MySQL-Proxy调度服务器：192.168.0.233

先让mysql1与mysql2实现主从复制

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23

[iyunv@localhost ~]# yum -y install gcc gcc-c++ autoconf automake zlib ncurses-devel libtool flex pkgconfig libevent glib libxml [iyunv@localhost software]# tar -zxvf libmcrypt-2.5.7.tar.gz &>/dev/null [iyunv@localhost software]# cd libmcrypt-2.5.7 [iyunv@localhost libmcrypt-2.5.7]# ./configure --prefix=/usr/local/libmcrypt &&make &&make install [iyunv@localhost software]# yum -y install readline readline-devel [iyunv@localhost software]# tar -zxvf lua-5.2.0.tar.gz &>/dev/null [iyunv@localhost software]# cd lua-5.2.0 [iyunv@localhost lua-5.2.0]# make linux [iyunv@localhost lua-5.2.0]# make install [iyunv@localhost software]# tar -zxvf mysql-proxy-0.8.5-linux-el6-x86-64bit.tar.gz &>/dev/null [iyunv@localhost software]# mv mysql-proxy-0.8.5-linux-el6-x86-64bit /usr/local/mysql-proxy [iyunv@localhost software]# mkdir /usr/local/mysql-proxy/log -p [iyunv@localhost software]# touch /usr/local/mysql-proxy/log/mysql-proxy.log [iyunv@localhost software]# mkdir /usr/local/mysql-proxy/run -p [iyunv@localhost software]# touch /usr/local/mysql-proxy/run/mysql-proxy.pid [iyunv@localhost software]# /etc/init.d/mysql-proxy start Starting mysql-proxy: ok    [iyunv@localhost software]# netstat -tunlp|grep proxy tcp        0      0 0.0.0.0:4040                0.0.0.0:*                   LISTEN      22325/mysql-proxy   [iyunv@localhost software]# ps -ef|grep mysql-proxy|grep -v grep root     22325     1  0 09:13 ?        00:00:00 /usr/local/mysql-proxy/libexec/mysql-proxy --proxy-read-only-backend-addresses=192.168.0.232:3306 --proxy-backend-addresses=192.168.0.231:3306 --proxy-lua-script=/usr/local/mysql-proxy/share/doc/mysql-proxy/rw-splitting.lua --daemon --pid-file=/usr/local/mysql-proxy/run/mysql-proxy.pid --user=root --log-level=debug --log-file=/usr/local/mysql-proxy/log/mysql-proxy.log [iyunv@localhost software]#

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20

=====脚本参数详解===== PROXY_PATH=/usr/local/mysql-proxy/bin              //定义服务二进制文件路径 proxy-read-only-backend-addresses=192.168.0.232:3306        //指定只读mysql主机地址及端口 proxy-backend-addresses=192.168.0.231:3306               //指定mysql主机地址及端口 proxy-lua-script=/usr/local/mysql-proxy/share/doc/mysql-proxy/rw-splitting.lua"   //指定lua脚本，在这里，使用的是rw-splitting脚本，用于读写分离 $NICELEVEL $PROXY_PATH/mysql-proxy $PROXY_OPTIONS --daemon                    //以守护进程方式启动 --pid-file=$PROXY_PID       //指定pid文件 --user=root                 //以root方式运行 --log-level=debug           //定义log日志级别，由高到低分别有(error|warning|info|message|debug) --log-file=/usr/local/mysql-proxy/log/mysql-proxy.log          //定义log日志文件路径 在mysql-proxy上登录测试下： mysql> show processlist; +----+------+-----------+------+---------+------+-------+------------------+ | Id | User | Host      | db   | Command | Time | State | Info             | +----+------+-----------+------+---------+------+-------+------------------+ |  3 | root | localhost | NULL | Query   |    0 | NULL  | show processlist | +----+------+-----------+------+---------+------+-------+------------------+ 1 row in set (0.00 sec) mysql>

安装测试工具sysbench测试mysql性能：

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55

[iyunv@localhost software]# tar -zxvf sysbench-0.4.10.tar.gz &>/dev/null [iyunv@localhost software]# cd sysbench-0.4.10 [iyunv@localhost sysbench-0.4.10]# head -n 78 configure.ac |tail -n 6|grep -v ^$ # Checks for programs. AC_PROG_CC #AC_PROG_LIBTOOL AC_PROG_RANLIB AX_CHECK_DOCBOOK [iyunv@localhost sysbench-0.4.10]# ./autogen.sh [iyunv@localhost sysbench-0.4.10]# ./configure --with-mysql-includes=/usr/local/mysql/include --with-mysql-libs=/usr/local/mysql/lib [iyunv@localhost sysbench-0.4.10]# make &&make install [iyunv@localhost ~]# ln -s /usr/local/bin/sysbench /bin/ [iyunv@localhost ~]# ln -s /usr/local/mysql/lib/libmysqlclient.so.18 /usr/lib64/ [iyunv@localhost ~]# sysbench --test=oltp --mysql-table-engine=innodb --oltp-table-size=10000 --mysql-socket=/usr/local/mysql/mysql.sock --mysql-user=root --mysql-password=redhat --mysql-db=testsysbench prepare sysbench 0.4.10:  multi-threaded system evaluation benchmark No DB drivers specified, using mysql Creating table 'sbtest'... Creating 10000 records in table 'sbtest'... [iyunv@localhost ~]# sysbench --test=oltp --mysql-table-engine=innodb --oltp-table-size=10000 --mysql-socket=/usr/local/mysql/mysql.sock --mysql-user=root --mysql-password=redhat --mysql-db=testsysbench run sysbench 0.4.10:  multi-threaded system evaluation benchmark No DB drivers specified, using mysql WARNING: Preparing of "BEGIN" is unsupported, using emulation Running the test with following options: Number of threads: 1 Doing OLTP test. Running mixed OLTP test Using Special distribution (12 iterations,  1 pct of values are returned in 75 pct cases) Using "BEGIN" for starting transactions Using auto_inc on the id column Maximum number of requests for OLTP test is limited to 10000 Threads started! Done. OLTP test statistics:     queries performed:         read:                            140000         write:                           50000         other:                           20000         total:                           210000     transactions:                        10000  (110.69 per sec.)     deadlocks:                           0      (0.00 per sec.)     read/write requests:                 190000 (2103.17 per sec.)     other operations:                    20000  (221.39 per sec.) Test execution summary:     total time:                          90.3398s     total number of events:              10000     total time taken by event execution: 90.2339     per-request statistics:          min:                                  7.30ms          avg:                                  9.02ms          max:                                 94.94ms          approx.  95 percentile:               9.73ms Threads fairness:     events (avg/stddev):           10000.0000/0.00     execution time (avg/stddev):   90.2339/0.00 [iyunv@localhost ~]#
