Windows phone 8 是一个单任务操作系统,任何时候都只有一个应用处于活跃状态,这里的多任务是指对后台任务的支持。本节我们先讲讲应用程序的运行状态,然后看看支持的后台任务,包括:后台代理、后台音频、后台文件传输、后台辅助线程等。
  快速导航:
    一、应用的状态
    二、后台代理
    三、后台音频
    四、后台文件传输
    五、后台辅助线程


一、应用的状态

1)应用的运行状态

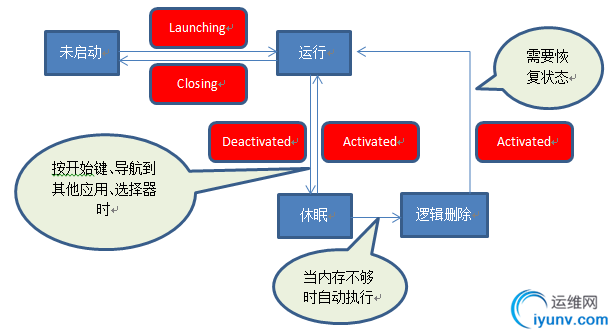

  我们通过图解来分析应用的运行状态,启动并置于前台界面的应用是唯一处于运行状态的,其他的操作,比如win键,后退导出应用,打开选择器和启动器时都会让当前运行的应用进入休眠状态,如果系统内存不足,处于休眠状态的应用可能会被系统逻辑删除。下面的图示演示了这个过程。




2)如何恢复状态
  当应用处于休眠状态时,它的状态信息仍然保留在内存中,用户下次切换进去后不会有任何变化。但是当应用被逻辑删除后,这些状态信息就会丢失,比如表单填写的内容都会消失,为了避免这种情况,我们需要手动保留状态信息。
    首先,我们在mainpage定义一些页面表单控件:


[XAML]










  我们需要实现在应用逻辑删除后能将其状态保持到页面的State字典中,但是需要我们的数据源支持序列化,所以我们定义与表单关联的ViewModel如下:

[C#]


    [DataContract]
public class ViewModel : INotifyPropertyChanged
{
private string _textBox1Text;
private bool _checkBox1IsChecked;
private bool _radioButton1IsChecked;
private bool _radioButton2IsChecked;
private double _slider1Value;
[DataMember]
public string TextBox1Text
{
get { return _textBox1Text; }
set
{
_textBox1Text = value;
NotifyPropertyChanged("TextBox1Text");
}
}
[DataMember]
public bool CheckBox1IsChecked
{
get { return _checkBox1IsChecked; }
set
{
_checkBox1IsChecked = value;
NotifyPropertyChanged("CheckBox1IsChecked");
}
}
[DataMember]
public double Slider1Value
{
get { return _slider1Value; }
set
{
_slider1Value = value;
NotifyPropertyChanged("Slider1Value");
}
}
[DataMember]
public bool RadioButton1IsChecked
{
get { return _radioButton1IsChecked; }
set
{
_radioButton1IsChecked = value;
NotifyPropertyChanged("RadioButton1IsChecked");
}
}
[DataMember]
public bool RadioButton2IsChecked
{
get { return _radioButton2IsChecked; }
set
{
_radioButton2IsChecked = value;
NotifyPropertyChanged("RadioButton2IsChecked");
}
}
public event PropertyChangedEventHandler PropertyChanged;
private void NotifyPropertyChanged(string propertyName)
{
if (null != PropertyChanged)
PropertyChanged(this, new PropertyChangedEventArgs(propertyName));
}
}

  我需要对mainpage代码添加页面导航入、导航出的事件。导航出页面的时候,如果不是向后导航,则存储状态。导航入的时候,我们需要判断页面是否为逻辑删除后正在恢复的状态,如果是,则通过状态字典恢复状态。mainpage代码如下:

[C#]


    public partial class MainPage : PhoneApplicationPage
{
// 构造函数
public MainPage()
{
InitializeComponent();
_isNewPageInstance = true;
}
ViewModel _viewModel = null;
///
/// 新实例还是现有实例
///
bool _isNewPageInstance = false;
private void Button_Click_1(object sender, RoutedEventArgs e)
{
NavigationService.Navigate(new Uri("/Page1.xaml", UriKind.Relative));
}
protected override void OnNavigatedFrom(System.Windows.Navigation.NavigationEventArgs e)
{
//如果不是向后导航,则保存状态
if (e.NavigationMode != System.Windows.Navigation.NavigationMode.Back)
{
State["ViewModel"] = _viewModel;
}
}
protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)
{
if (_isNewPageInstance)
{
if (_viewModel == null)
{
if (State.Count > 0)
{
_viewModel = (ViewModel)State["ViewModel"];
}
else
{
_viewModel = new ViewModel();
}
}
DataContext = _viewModel;
}
_isNewPageInstance = false;
}

}

  然后我们添加一page1页面,该页添加一个返回按钮。用于测试。为了达到调试时即时进入逻辑删除的效果,我们需要设置下。右键项目文件,点属性,在调试选项卡勾选“在调试期间取消激活时逻辑删除”。


二、后台代理
  后台代理可以在应用退出以后独立在系统后台运行,它包含两种类型的代理,分别是定期代理和资源密集型代理,前者用于频繁执行小任务,后者用于在系统空闲时执行耗时大任务。要使用后台代理,我们需要添加一个名为Windows phone 计划任务代理的项目,并在应用的项目中添加对其的引用,现在我们要实现在后台代理中弹出Toast,我们需要如下修改ScheduledAgent.cs的OnInvoke方法,代码如下

[C#]


        protected override void OnInvoke(ScheduledTask task)
{
string toastMessage = "";
if (task is PeriodicTask)
{
toastMessage = "定期代理正在运行";
}
else
{
toastMessage = "资源密集型代理正在运行";
}
// 用于向用户显示Toast,如果当前任务的前台正在运行,则不显示
ShellToast toast = new ShellToast();
toast.Title = "标题";
toast.Content = toastMessage;
toast.Show();
// 在调试的时候需要及时执行查看效果
#if DEBUG_AGENT
ScheduledActionService.LaunchForTest(task.Name, TimeSpan.FromSeconds(15));
#endif
NotifyComplete();
}

  接着,我们在应用项目的mainpage中调用代理,代码如下:

[XAML]





























































[C#]


    public partial class MainPage : PhoneApplicationPage
{
///
/// 定期代理
///
PeriodicTask periodicTask;
///
/// 资源密集型代理
///
ResourceIntensiveTask resourceIntensiveTask;
string periodicTaskName = "PeriodicAgent";
string resourceIntensiveTaskName = "ResourceIntensiveAgent";
public bool agentsAreEnabled = true;
// 构造函数
public MainPage()
{
InitializeComponent();
}
//启动定期代理
private void StartPeriodicAgent()
{
agentsAreEnabled = true;
// 获取当前名称的定期代理,如果存在则移除
periodicTask = ScheduledActionService.Find(periodicTaskName) as PeriodicTask;
if (periodicTask != null)
{
RemoveAgent(periodicTaskName);
}
periodicTask = new PeriodicTask(periodicTaskName);
periodicTask.Description = "这是一个定期代理的描述信息。";
try
{
ScheduledActionService.Add(periodicTask);
PeriodicStackPanel.DataContext = periodicTask;
//在调试的时候需要及时执行查看效果
#if(DEBUG_AGENT)
ScheduledActionService.LaunchForTest(periodicTaskName, TimeSpan.FromSeconds(60));
#endif
}
catch (InvalidOperationException exception)
{
if (exception.Message.Contains("BNS Error: The action is disabled"))
{
MessageBox.Show("本应用的后台计划被用户禁用。");
agentsAreEnabled = false;
PeriodicCheckBox.IsChecked = false;
}
if (exception.Message.Contains("BNS Error: The maximum number of ScheduledActions of this type have already been added."))
{
MessageBox.Show("定期代理数量达到最大限制。");
}
PeriodicCheckBox.IsChecked = false;
}
catch (SchedulerServiceException)
{
PeriodicCheckBox.IsChecked = false;
}
}
private void StartResourceIntensiveAgent()
{
agentsAreEnabled = true;
// 获取当前名称的资源密集型代理,如果存在则移除
resourceIntensiveTask = ScheduledActionService.Find(resourceIntensiveTaskName) as ResourceIntensiveTask;
if (resourceIntensiveTask != null)
{
RemoveAgent(resourceIntensiveTaskName);
}
resourceIntensiveTask = new ResourceIntensiveTask(resourceIntensiveTaskName);
resourceIntensiveTask.Description = "这是一个资源密集型代理的描述信息。";
try
{
ScheduledActionService.Add(resourceIntensiveTask);
ResourceIntensiveStackPanel.DataContext = resourceIntensiveTask;
//在调试的时候需要及时执行查看效果
#if(DEBUG_AGENT)
ScheduledActionService.LaunchForTest(resourceIntensiveTaskName, TimeSpan.FromSeconds(15));
#endif
}
catch (InvalidOperationException exception)
{
if (exception.Message.Contains("BNS Error: The action is disabled"))
{
MessageBox.Show("本应用的后台计划被用户禁用。");
agentsAreEnabled = false;
}
ResourceIntensiveCheckBox.IsChecked = false;
}
catch (SchedulerServiceException)
{
ResourceIntensiveCheckBox.IsChecked = false;
}
}

bool ignoreCheckBoxEvents = false;
private void PeriodicCheckBox_Checked(object sender, RoutedEventArgs e)
{
if (ignoreCheckBoxEvents)
return;
StartPeriodicAgent();
}
private void PeriodicCheckBox_Unchecked(object sender, RoutedEventArgs e)
{
if (ignoreCheckBoxEvents)
return;
RemoveAgent(periodicTaskName);
}
private void ResourceIntensiveCheckBox_Checked(object sender, RoutedEventArgs e)
{
if (ignoreCheckBoxEvents)
return;
StartResourceIntensiveAgent();
}
private void ResourceIntensiveCheckBox_Unchecked(object sender, RoutedEventArgs e)
{
if (ignoreCheckBoxEvents)
return;
RemoveAgent(resourceIntensiveTaskName);
}
///
/// 删除代理
///
private void RemoveAgent(string name)
{
try
{
ScheduledActionService.Remove(name);
}
catch (Exception)
{
}
}
protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)
{
ignoreCheckBoxEvents = true;
periodicTask = ScheduledActionService.Find(periodicTaskName) as PeriodicTask;
if (periodicTask != null)
{
PeriodicStackPanel.DataContext = periodicTask;
}
resourceIntensiveTask = ScheduledActionService.Find(resourceIntensiveTaskName) as ResourceIntensiveTask;
if (resourceIntensiveTask != null)
{
ResourceIntensiveStackPanel.DataContext = resourceIntensiveTask;
}
ignoreCheckBoxEvents = false;
}
}



三、后台音频
  通过后台音频的功能我们可以实现在系统后台播放音乐的功能,由于后台音频代理只能访问本地文件夹,所以我们务必要先把需要播放的音乐文件拷贝到本地文件夹中。本示例是把安装文件夹的音频文件拷贝到本地文件夹,代码如下:

[C#]


        //把安装文件夹下的文件拷贝到本地文件夹
private void CopyToIsolatedStorage()
{
using (IsolatedStorageFile storage = IsolatedStorageFile.GetUserStoreForApplication())
{
string[] files = new string[] { "Ring01.wma", "Ring02.wma", "Ring03.wma" };
foreach (var _fileName in files)
{
if (!storage.FileExists(_fileName))
{
string _filePath = "Audio/" + _fileName;
StreamResourceInfo resource = Application.GetResourceStream(new Uri(_filePath, UriKind.Relative));
using (IsolatedStorageFileStream file = storage.CreateFile(_fileName))
{
int chunkSize = 4096;
byte[] bytes = new byte[chunkSize];
int byteCount;
while ((byteCount = resource.Stream.Read(bytes, 0, chunkSize)) > 0)
{
file.Write(bytes, 0, byteCount);
}
}
}
}
string[] icons = new string[] { "Ring01.jpg", "Ring02.jpg", "Ring03.jpg" };
foreach (var _fileName in icons)
{
if (!storage.FileExists(_fileName))
{
string _filePath = "Images/" + _fileName;
StreamResourceInfo iconResource = Application.GetResourceStream(new Uri(_filePath, UriKind.Relative));
using (IsolatedStorageFileStream file = storage.CreateFile( _fileName))
{
int chunkSize = 4096;
byte[] bytes = new byte[chunkSize];
int byteCount;
while ((byteCount = iconResource.Stream.Read(bytes, 0, chunkSize)) > 0)
{
file.Write(bytes, 0, byteCount);
}
}
}
}
}
}

  我们需要在解决方案中添加Windows phone 音频播放代理项目,并在应用项目中添加对其的引用。修改AudioPlayer.cs代码如下:

[C#]


    public class AudioPlayer : AudioPlayerAgent
{
private static volatile bool _classInitialized;
private static List _playList = new List
{
new AudioTrack(new Uri("Ring01.wma", UriKind.Relative),"曲目1","艺术家1","专辑1",new Uri("Ring01.jpg", UriKind.Relative)),
new AudioTrack(new Uri("Ring02.wma", UriKind.Relative),"曲目2","艺术家2","专辑2",new Uri("Ring02.jpg", UriKind.Relative)),
new AudioTrack(new Uri("Ring03.wma", UriKind.Relative),"曲目3","艺术家3","专辑3",new Uri("Ring03.jpg", UriKind.Relative))
};
///
/// 当前播放位置
///
static int currentTrackNumber = 0;

///
/// AudioPlayer 实例可共享同一进程。
/// 静态字段可用于在 AudioPlayer 实例之间共享状态
/// 或与音频流代理通信。
///
public AudioPlayer()
{
if (!_classInitialized)
{
_classInitialized = true;
// 订阅托管异常处理程序
Deployment.Current.Dispatcher.BeginInvoke(delegate
{
Application.Current.UnhandledException += AudioPlayer_UnhandledException;
});
}
}
/// 出现未处理的异常时执行的代码
private void AudioPlayer_UnhandledException(object sender, ApplicationUnhandledExceptionEventArgs e)
{
if (System.Diagnostics.Debugger.IsAttached)
{
// 出现未处理的异常;强行进入调试器
System.Diagnostics.Debugger.Break();
}
}
///
/// playstate 更改时调用,但 Error 状态除外(参见 OnError)
///
/// BackgroundAudioPlayer
/// 在 playstate 更改时播放的曲目
/// 播放机的新 playstate
///
/// 无法取消播放状态更改。即使应用程序
/// 导致状态自行更改,假定应用程序已经选择了回调。
///
/// 值得注意的 playstate 事件
/// (a) TrackEnded: 播放器没有当前曲目时激活。代理可设置下一曲目。
/// (b) TrackReady: 音轨已设置完毕,现在可以播放。
///
/// 只在代理请求完成之后调用一次 NotifyComplete(),包括异步回调。
///
protected override void OnPlayStateChanged(BackgroundAudioPlayer player, AudioTrack track, PlayState playState)
{
switch (playState)
{
case PlayState.TrackEnded:
player.Track = GetPreviousTrack();
break;
case PlayState.TrackReady:
player.Play();
break;
case PlayState.Shutdown:
// TODO: 在此处理关机状态(例如保存状态)
break;
case PlayState.Unknown:
break;
case PlayState.Stopped:
break;
case PlayState.Paused:
break;
case PlayState.Playing:
break;
case PlayState.BufferingStarted:
break;
case PlayState.BufferingStopped:
break;
case PlayState.Rewinding:
break;
case PlayState.FastForwarding:
break;
}
NotifyComplete();
}

///
/// 在用户使用应用程序/系统提供的用户界面请求操作时调用
///
/// BackgroundAudioPlayer
/// 用户操作期间播放的曲目
/// 用户请求的操作
/// 与请求的操作相关联的数据。
/// 在当前版本中,此参数仅适合与 Seek 操作一起使用,
/// 以指明请求的乐曲的位置
///
/// 用户操作不自动对系统状态进行任何更改;如果用户操作受支持,
/// 执行用户操作(如果这些操作受支持)。
///
/// 只在代理请求完成之后调用一次 NotifyComplete(),包括异步回调。
///
protected override void OnUserAction(BackgroundAudioPlayer player, AudioTrack track, UserAction action, object param)
{
switch (action)
{
case UserAction.Play:
if (player.PlayerState != PlayState.Playing)
{
player.Play();
}
break;
case UserAction.Stop:
player.Stop();
break;
case UserAction.Pause:
player.Pause();
break;
case UserAction.FastForward:
player.FastForward();
break;
case UserAction.Rewind:
player.Rewind();
break;
case UserAction.Seek:
player.Position = (TimeSpan)param;
break;
case UserAction.SkipNext:
player.Track = GetNextTrack();
break;
case UserAction.SkipPrevious:
AudioTrack previousTrack = GetPreviousTrack();
if (previousTrack != null)
{
player.Track = previousTrack;
}
break;
}
NotifyComplete();
}

///
/// 实现逻辑以获取下一个 AudioTrack 实例。
/// 在播放列表中,源可以是文件、Web 请求,等等。
///
///
/// AudioTrack URI 确定源,它可以是:
/// (a) 独立存储器文件(相对 URI,表示独立存储器中的路径)
/// (b) HTTP URL(绝对 URI)
/// (c) MediaStreamSource (null)
///
/// AudioTrack 实例,或如果播放完毕,则返回 null
private AudioTrack GetNextTrack()
{
// TODO: 添加逻辑以获取下一条音轨
if (++currentTrackNumber >= _playList.Count) currentTrackNumber = 0;
AudioTrack track = _playList[currentTrackNumber];
// 指定曲目
return track;
}

///
/// 实现逻辑以获取前一个 AudioTrack 实例。
///
///
/// AudioTrack URI 确定源,它可以是:
/// (a) 独立存储器文件(相对 URI,表示独立存储器中的路径)
/// (b) HTTP URL(绝对 URI)
/// (c) MediaStreamSource (null)
///
/// AudioTrack 实例,或如果不允许前一曲目,则返回 null
private AudioTrack GetPreviousTrack()
{
// TODO: 添加逻辑以获取前一条音轨
if (--currentTrackNumber < 0) currentTrackNumber = _playList.Count - 1;
AudioTrack track = _playList[currentTrackNumber];
// 指定曲目
return track;
}
///
/// 每次播放出错(如 AudioTrack 未正确下载)时调用
///
/// BackgroundAudioPlayer
/// 出现错误的曲目
/// 出现的错误
/// 如果为 true,则播放不能继续并且曲目播放将停止
///
/// 不保证在所有情况下都调用此方法。例如,如果后台代理程序
/// 本身具有未处理的异常,则不会回调它来处理它自己的错误。
///
protected override void OnError(BackgroundAudioPlayer player, AudioTrack track, Exception error, bool isFatal)
{
if (isFatal)
{
Abort();
}
else
{
NotifyComplete();
}
}
///
/// 取消代理请求时调用
///
///
/// 取消请求后,代理需要 5 秒钟完成其工作,
/// 通过调用 NotifyComplete()/Abort()。
///
protected override void OnCancel()
{
}
}

  最后,我们在mainpage中添加对播放的控制。

[XAML]






















[C#]


    public partial class MainPage : PhoneApplicationPage
{
// 构造函数
public MainPage()
{
InitializeComponent();
BackgroundAudioPlayer.Instance.PlayStateChanged += new EventHandler(Instance_PlayStateChanged);
}
//刚加载时确定播放状态
protected override void OnNavigatedTo(NavigationEventArgs e)
{
if (PlayState.Playing == BackgroundAudioPlayer.Instance.PlayerState)
{
button1.Content = "■";
textblock1.Text = "曲目:" + BackgroundAudioPlayer.Instance.Track.Title
+ " 艺术家:" + BackgroundAudioPlayer.Instance.Track.Artist
+ " 专辑:" + BackgroundAudioPlayer.Instance.Track.Album
+ " 曲目长度:" +BackgroundAudioPlayer.Instance.Track.Duration.Minutes + ":" + BackgroundAudioPlayer.Instance.Track.Duration.Seconds;
using (IsolatedStorageFile storage = IsolatedStorageFile.GetUserStoreForApplication())
{
var stream = storage.OpenFile(BackgroundAudioPlayer.Instance.Track.AlbumArt.OriginalString, System.IO.FileMode.Open);
var bitmapImage = new BitmapImage();
bitmapImage.SetSource(stream);
imge1.Source = bitmapImage;
stream.Close();
}
}
else
{
button1.Content = "?";
textblock1.Text = "未播放曲目";
}
}
void Instance_PlayStateChanged(object sender, EventArgs e)
{
switch (BackgroundAudioPlayer.Instance.PlayerState)
{
case PlayState.Playing:
button1.Content = "■";
button2.IsEnabled = true;
button3.IsEnabled = true;
break;
case PlayState.Paused:
case PlayState.Stopped:
button1.Content = "?";
break;
}
if (null != BackgroundAudioPlayer.Instance.Track && BackgroundAudioPlayer.Instance.PlayerState!= PlayState.Stopped)
{
textblock1.Text = "曲目:" + BackgroundAudioPlayer.Instance.Track.Title
+ " 艺术家:" + BackgroundAudioPlayer.Instance.Track.Artist
+ " 专辑:" + BackgroundAudioPlayer.Instance.Track.Album
+ " 曲目长度:" + BackgroundAudioPlayer.Instance.Track.Duration.Minutes + ":" + BackgroundAudioPlayer.Instance.Track.Duration.Seconds;
using (IsolatedStorageFile storage = IsolatedStorageFile.GetUserStoreForApplication())
{
var stream = storage.OpenFile(BackgroundAudioPlayer.Instance.Track.AlbumArt.OriginalString, System.IO.FileMode.Open);
var bitmapImage = new BitmapImage();
bitmapImage.SetSource(stream);
imge1.Source = bitmapImage;
stream.Close();
}
}
}

//播放/暂停
private void Button_Click_1(object sender, RoutedEventArgs e)
{
if (PlayState.Playing == BackgroundAudioPlayer.Instance.PlayerState)
BackgroundAudioPlayer.Instance.Pause();
else
BackgroundAudioPlayer.Instance.Play();
}
//向前
private void Button_Click_2(object sender, RoutedEventArgs e)
{
BackgroundAudioPlayer.Instance.SkipPrevious();
button2.IsEnabled = false;
}
//向后
private void Button_Click_3(object sender, RoutedEventArgs e)
{
BackgroundAudioPlayer.Instance.SkipNext();
button3.IsEnabled = false;
}
}



四、后台文件传输
  后台文件传输允许我们实现下载上传文件的功能,他限制系统中同时运行的传输任务不能超过两个,并且下载的文件只能存放在本地文件夹的/shared/transfers目录下。下面我们实现一个后台传输任务,下载博客相册中的一张照片。

[XAML]



















[C#]


    public partial class MainPage : PhoneApplicationPage
{
// 构造函数
public MainPage()
{
InitializeComponent();
}
protected override void OnNavigatedTo(System.Windows.Navigation.NavigationEventArgs e)
{
initTransferRequest();
base.OnNavigatedTo(e);
}
private void initTransferRequest()
{
//获取第一个后台传输任务
var transferRequest = BackgroundTransferService.Requests.FirstOrDefault();
if (transferRequest == null)
{
textblock1.Text = "无后台传输任务";
button1.IsEnabled = true;
return;
}
//当传输状态改变时:
transferRequest.TransferStatusChanged += new EventHandler(transfer_TransferStatusChanged);
//当传输进度改变时:
transferRequest.TransferProgressChanged += new EventHandler(transfer_TransferProgressChanged);
updatesStatus(transferRequest);
button1.IsEnabled = false;
}
void transfer_TransferStatusChanged(object sender, BackgroundTransferEventArgs e)
{
updatesStatus(e.Request);
}
void transfer_TransferProgressChanged(object sender, BackgroundTransferEventArgs e)
{
updatesStatus(e.Request);
}

void updatesStatus(BackgroundTransferRequest transferRequest)
{
textblock1.Text = "传输状态:" + transferRequest.TransferStatus.ToString()
+ " 已下载字节:" + transferRequest.BytesReceived
+ "总字节:" + transferRequest.TotalBytesToReceive;
}
private void Button_Click_1(object sender, RoutedEventArgs e)
{
string fileurlstring = "http://images.iyunv.com/cnblogs_com/lipan/319399/o_Large.png";
Uri uri = new Uri(Uri.EscapeUriString(fileurlstring), UriKind.RelativeOrAbsolute);
BackgroundTransferRequest transferRequest = new BackgroundTransferRequest(uri);
transferRequest.Method = "GET";
using (IsolatedStorageFile isoStore = IsolatedStorageFile.GetUserStoreForApplication())
{
if (!isoStore.DirectoryExists("/shared/transfers"))
{
isoStore.CreateDirectory("/shared/transfers");
}
}
//文件下载后存放位置(为本地文件夹相对位置)
transferRequest.DownloadLocation = new Uri("shared/transfers/1.png", UriKind.RelativeOrAbsolute);
//外接电源、WiFi的可用性对传输的影响
transferRequest.TransferPreferences = TransferPreferences.AllowCellularAndBattery;
try
{
//添加到后台传输队列中
BackgroundTransferService.Add(transferRequest);
}
catch (Exception ex)
{
MessageBox.Show("无法添加后台传输请求。" + ex.Message);
}
initTransferRequest();
}
//清除传输队列已完成的任务
private void Button_Click_2(object sender, RoutedEventArgs e)
{
foreach (var transferRequest in BackgroundTransferService.Requests)
{
if (transferRequest.TransferStatus == TransferStatus.Completed)
{
try
{
BackgroundTransferService.Remove(transferRequest);
}
catch
{
}
}
}
initTransferRequest();
}
}



五、后台辅助线程
  后台辅助线程虽然名字这么叫,但是它不能在后台运行,我们可以用它来执行一个任务,并且可以实时获取执行的进度,实现代码如下:

[XAML]















[C#]


    public partial class MainPage : PhoneApplicationPage
{
private BackgroundWorker bw = new BackgroundWorker();
public MainPage()
{
InitializeComponent();
bw.WorkerReportsProgress = true;
bw.WorkerSupportsCancellation = true;
bw.DoWork += new DoWorkEventHandler(bw_DoWork);
bw.ProgressChanged += new ProgressChangedEventHandler(bw_ProgressChanged);
bw.RunWorkerCompleted += new RunWorkerCompletedEventHandler(bw_RunWorkerCompleted);
}
private void buttonStart_Click(object sender, RoutedEventArgs e)
{
if (bw.IsBusy != true)
{
bw.RunWorkerAsync();
}
}
private void buttonCancel_Click(object sender, RoutedEventArgs e)
{
if (bw.WorkerSupportsCancellation == true)
{
bw.CancelAsync();
}
}
private void bw_DoWork(object sender, DoWorkEventArgs e)
{
BackgroundWorker worker = sender as BackgroundWorker;
for (int i = 1; i |
